Graco Fusion User Manual

Parts
310648P 51
Drill Bit Kits

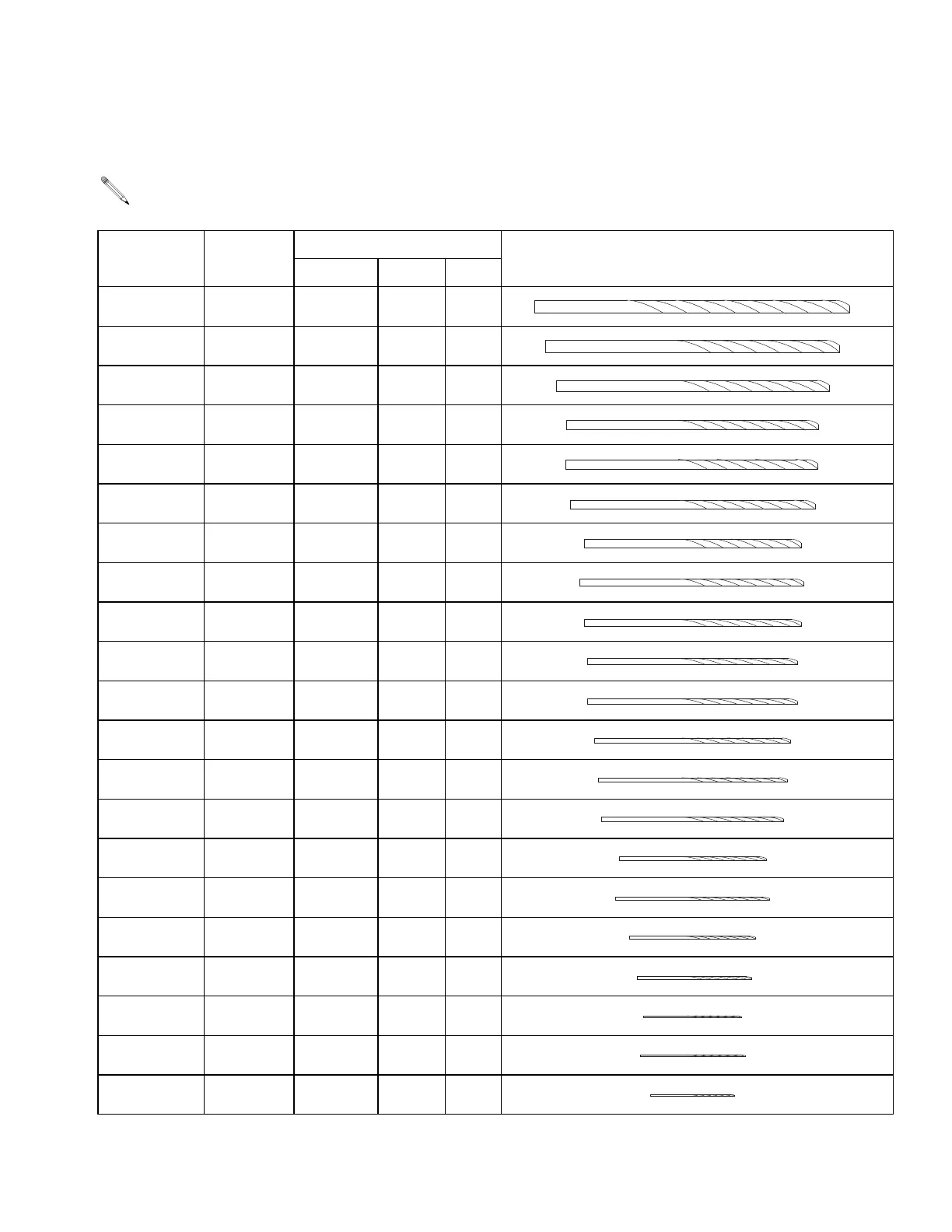

For cleaning gun ports and orifices and sizing mix module orifices. Illustrations are actual size, for comparison.
Not all sizes are used with your gun.
Kit Part No. Qty in Kit
Drill Bit Size
Illustration
nominal in. mm
246623 3 #32 0.116 2.90
246810 3 7/64 0.109 2.77
246813 3 #39 .099 2.51
246812 3 #43 .089 2.26
246624 3 3/32 .094 2.39
246625 3 #44 .086 2.18
246811 3 2 mm .079 2.00
246626 6 #50 .070 1.78
246627 6 #53 .060 1.52
246809 6 #54 .055 1.40
246628 6 #55 .052 1.32
246814* 6 #56 .046 1.18
246629* 6 #58 .042 1.07
246808* 6 #60 .040 1.02
246807† 6 #67 .032 0.81
246630† 6 #69 .029 0.74
246815† 6 #73 .024 0.61
276984† 6 #74 .023 0.57
246631† 6 #76 .020 0.51
246816† 6 #77 .018 0.46
246817* 6 #81 .013 0.33
* Included with gun, one each. † Included with gun in Drill Bit Kit 119386. Includes one of each.
