Maintenance
310648P 23
Maintenance
Supplied Tool Kit
• Hex Nut Driver; 5/16
• Screwdriver; 1/8 blade
• #81, 60, 58, and 56 drill bits.

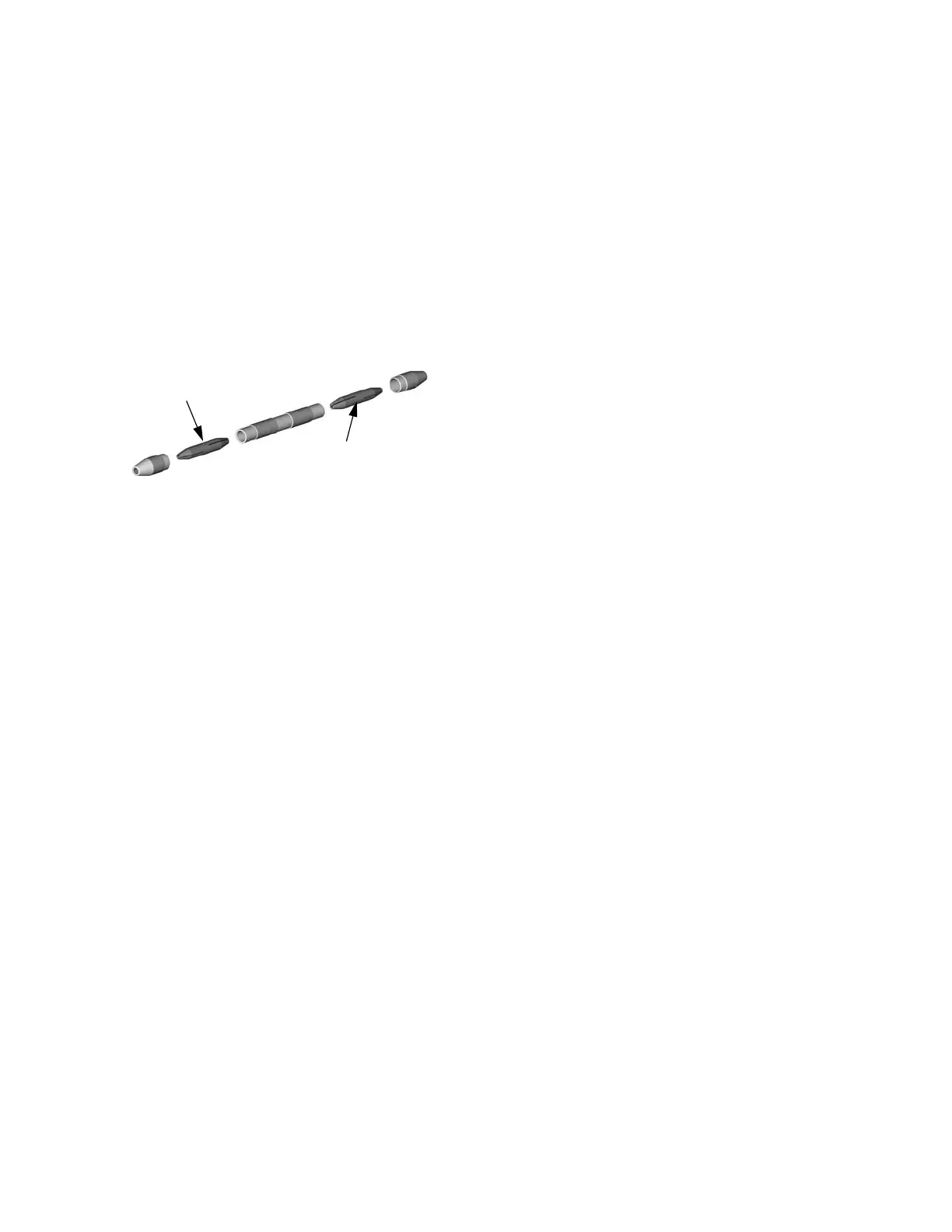

• 117661 Pin Vise; dual reversible chucks
• Drill Bit Kit 119386.
Keep Gun Clean
Keep gun clean with accessory gun cover 244915.
Applying a light coat of lubricant will make cleaning eas-
ier. Lubricate threads and outside of lock ring (11) to
ease disassembly. Use Fusion Gun Lubricant 118665.
As Needed
Daily
Weekly to Monthly
1. Clean Outside of Gun, page 24.
2. Clean Air Cap, page 24.
TI3864a
Reversible
Reversible
3. Clean Muffler, page 24.
4. Clean Fluid Manifold, page 24.
5. Clean Slip-Fit Polycarballoy Mix Module, page
25.
Follow Shutdown, page 18.
1. Clean Check Valves, page 38. Check o-rings and
screens.
2. Check that piston safety lock threaded connection
is tight, page 41.
