Graco Fusion User Manual

Maintenance
310648P 25
Clean Slip-Fit Polycarballoy
Mix Module
1. Follow Pressure Relief Procedure, page 19.
2. Flush Gun, page 24.
3. Remove mix module, page 34.
CAUTION
To avoid damaging mix module, do not force drill bits
when cleaning impingement ports. Some ports are
offset or angled.
4. See FIG. 1 and FIG. 2. Clean mix module impinge-
ment ports (IP) with appropriate size drill (sup-
plied). See identification chart under Drill Bit Kits,
page 51. See the recorded drill bit size from step
11 page 16.
• Component B (RES) impingement ports, at
rear of mix module, are angled toward front of
gun. See FIG.2.
• When cleaning do not scratch the sealing
edges and ports.
5. Reassemble, page 34.

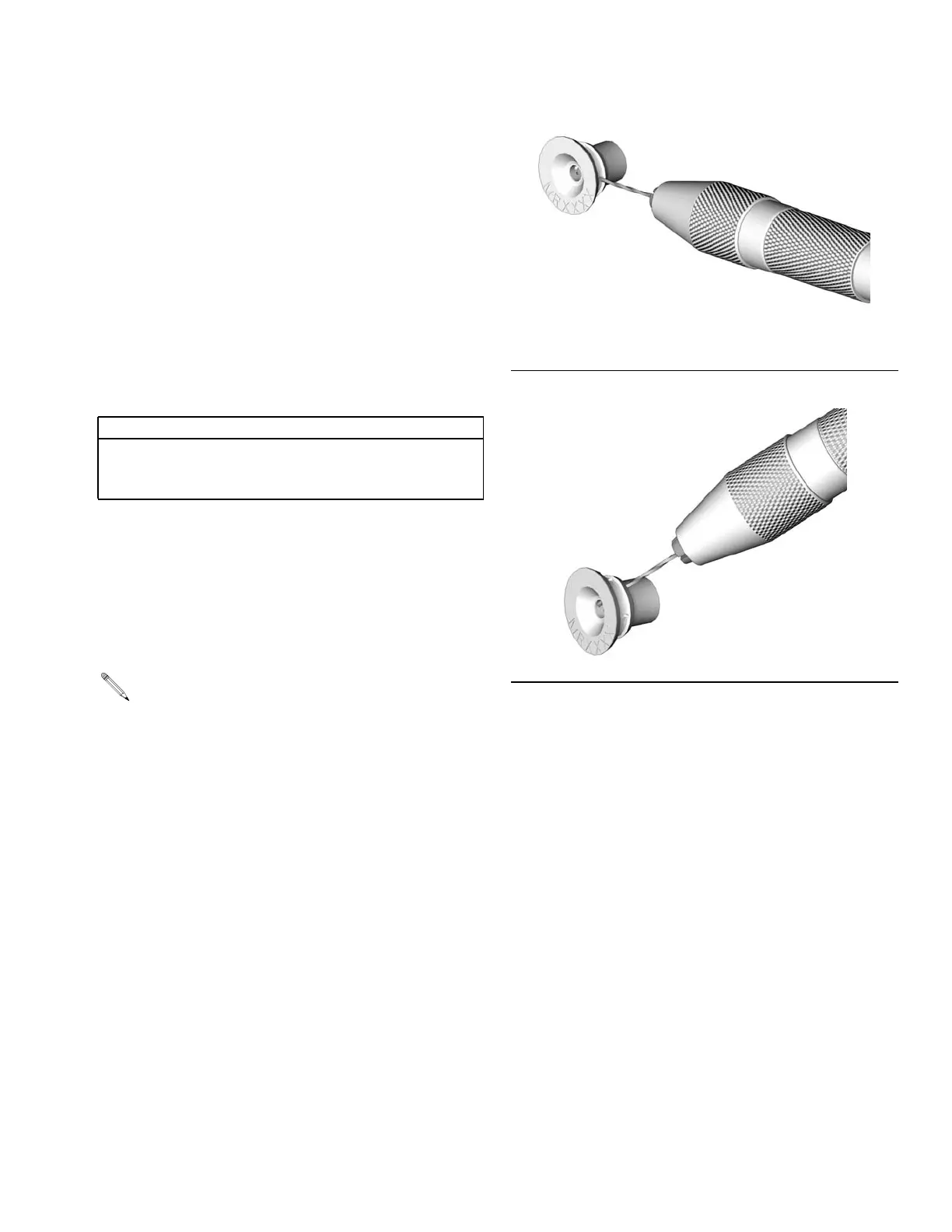

FIG. 1. Cleaning Component A (ISO) Ports
FIG. 2. Cleaning Component B (Resin) Ports
TI3863a
TI3862a
