Repair
310648P 35
CAUTION
Do not overtighten mix module nut (25). Overtighten-
ing can deform impingement holes and cause slow
gun actuation.

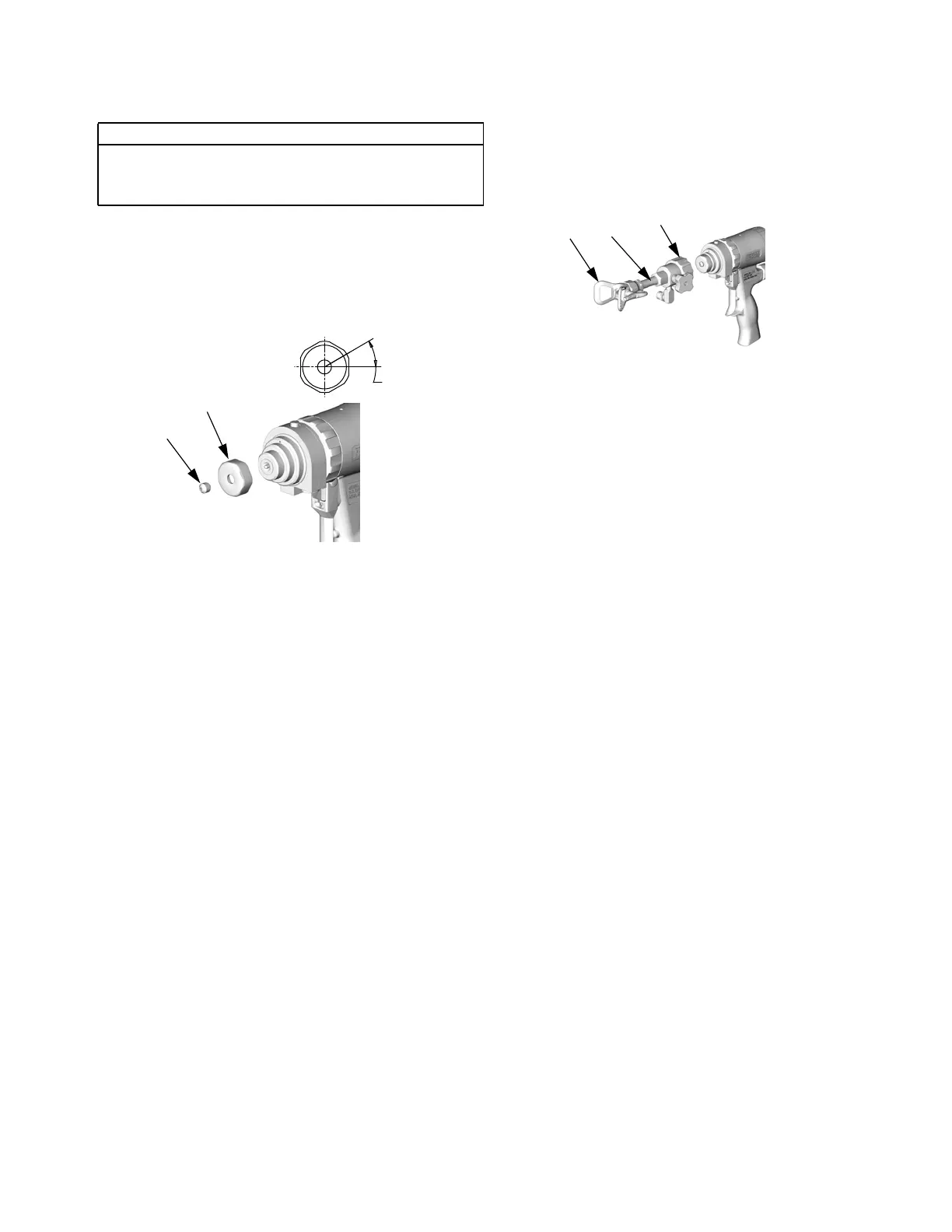

8. Lubricate all threads and reassemble mix module
nut (25) fingertight. Tighten additional 1/12 turn
with wrench. Install front seal (46) on rod (31).
TI4986a
1/12 Turn
46
25
9. Reinstall solvent purge assembly (28). Lubricate
all threads. Install static mixer (40) and RAC tip
and guard (9, 63). Tighten with wrench.
10. Attach fluid manifold. Return gun to service.
TI5032b
9, 63
40
28
To Next Page
