Adjust Amplifier Settings
12. Remove cover from amplifier (116). See Replace
Amplifier, page 89.
13. Ensure the EXCITATION SELECTOR jumper is in
the middle position (5 Vdc). See F
IG. 62 on page 90.
14. Ensure the COARSE GAIN dipswitch 1 is set to ON.
All others should be set to OFF.
15. Adjust the FINE ZERO potentiometer until the outlet
pressure on the display reads 0.
16. Use a small piece of jumper wire or a paper clip to
connect the SHUNT CAL and ENABLE terminals.
17. Use the data from the certificate of calibration for
the pressure sensor (included with PCF
documentation or the replacement pressure sensor)
to calculate the Shunt Calibration Pressure using
the following formula:
18. Adjust the FINE GAIN potentiometer until the Outlet
Pressure on Fluid Plate x, screen 5 (Pressure
Sensors) matches the calculated Shunt Calibration
Pressure.
19. Remove the jumper wire or paper clip from the
SHUNT CAL and ENABLE terminals.
20. Repeat steps 15 - 19 at least one additional time to
ensure proper calibration.
21. Replace the amplifier cover. See Replace
Amplifier, page 89.
22. Reconnect the outlet pressure sensor cable if it was
removed.
23. If desired, change pressure units to desired setting
on Advanced screen 2.
Shunt Calibration Pressure = (Shunt Cal Factor /
Calibration Factor) * 5000 psi

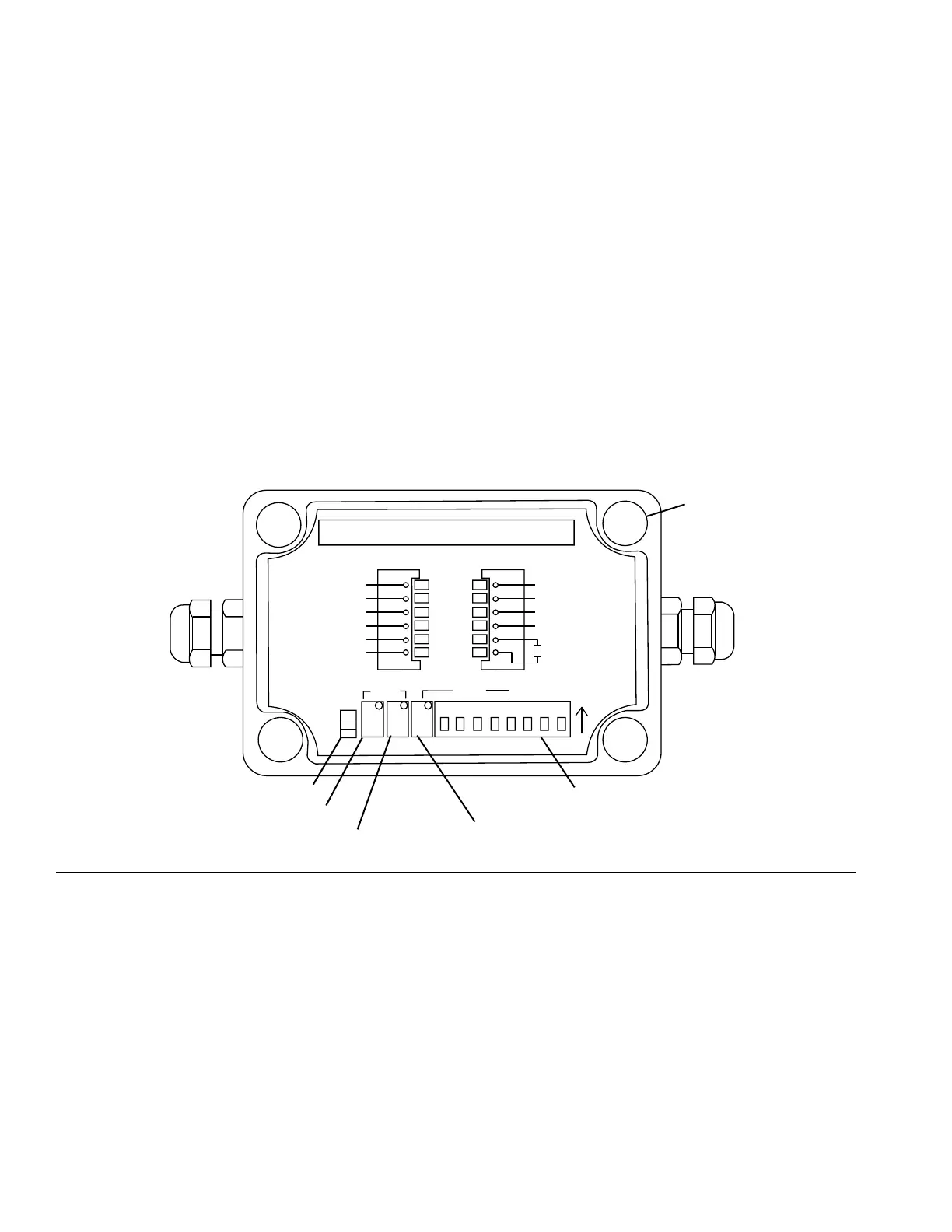

FIG. 62: Amplifier Settings
