Power and Connect GWN7610/GWN7600/GWN7600LR Access Point

Step 1:

Connect one end of a RJ-45 Ethernet cable into the NET or PoE/NET port of the GWN7610/GWN7600;

PoE/NET port of the GWN7600LR.

Step 2:

Connect the other end of the Ethernet cable(s) into a LAN port to your Network. (Use PoE switch for

GWN7600LR).

Step 3:

For GWN7610/GWN7600 only, connect the 24V DC power adapter into the power jack on the back of the

access point. Insert the main plug of the power adapter into a surge-protected power outlet. Otherwise,

PoE can be used if the switchport does provide PoE power.

Notes:

 GWN7610/GWN7600LR can be powered using PoE(802.3af)/PoE+(802.3at) switch via PoE/NET

port while GWN7600 can be powered using PoE (802.3af) switch via PoE/NET port. In this case,

both power and network connectivity will be provided over the PoE/NET port.

 GWN7610 has a PoE detection daemon that will monitor the status and update maximum

allowable power for USB ports in real time.

Step 4:

Wait for the GWN7610/GWN7600/GWN7600LR to boot up and acquire an IP address from the DHCP

Server.

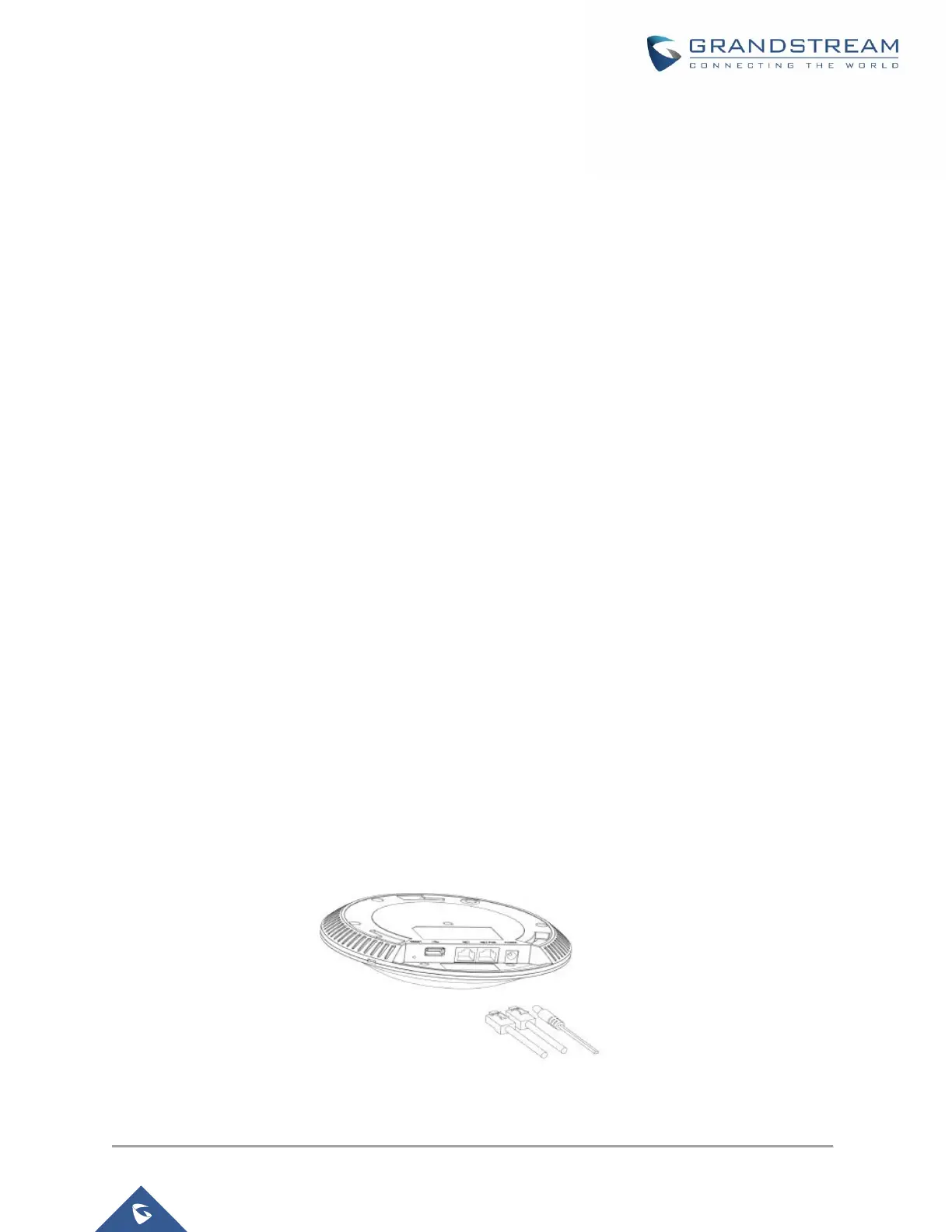

Figure 4: Connecting GWN AP - GWN7600 as example
