GWN7610/GWN7600/GWN7600LR User Manual
Version 1.0.8.18
Mounting Instructions for GWN7600LR
Please refer to the following steps for the mounting your GWN7600LR correctly.
1. Prepare the Cover Bracket by inserting the 4 screws (PM8) into corresponding holes.
2. Attach the Cover Bracket with screws on the vertical/horizontal Mounting Bolt were GWN7600LR
will be installed.
3. Assemble the Base Bracket with the Cover Bracket using provided locknuts and screws (PM8).
4. Connect the Ethernet cable (RJ45) to the correct ports of your GWN7600LR.
5. Align the GWN7600LR with the Base Bracket and pull it down to the right position.
6. Install the 2x Assembled screws to fix GWN7600LR on the Mounting Bolt.

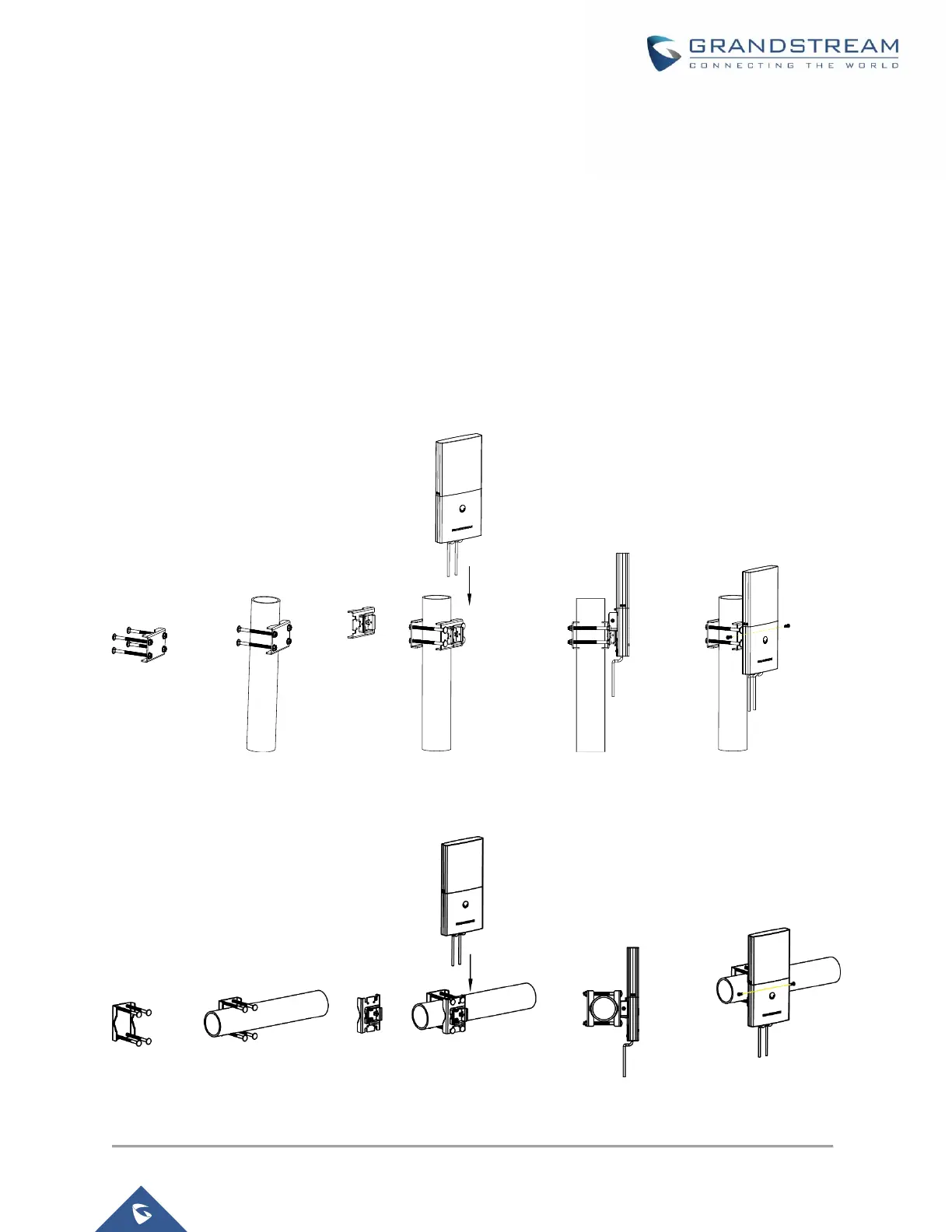

Figure 12: GWN7600LR Vertical Mounting
Figure 13: GWN7600LR Horizontal Mounting
