P a g e | 29
GWN7610/GWN7600/GWN7600LR User Manual
Version 1.0.8.18
Warranty
If the GWN7610/GWN7600/GWN7600LR Wireless Access Point was purchased from a reseller, please
contact the company where the device was purchased for replacement, repair or refund. If the device was
purchased directly from Grandstream, contact our Technical Support Team for a RMA (Return Materials
Authorization) number before the product is returned. Grandstream reserves the right to remedy warranty
policy without prior notification.
Wall and Ceiling Mount Installation for GWN7610/GWN7600
GWN7610/GWN7600 can be mounted on the wall or ceiling, please refer to the following steps for the
appropriate installation.
Wall Mount
Step1:
Position the mounting bracket at the desired location on the wall
with the arrow pointing up.
Step 2:
Use a pencil to mark the four mounting holes (screw holes DIA
5.5mm, reticle hole DIA 25mm).
Step 3:
Insert screw anchors into the 5.5 mm holes. Attach the mounting
bracket to the wall by inserting the screws into the anchors.
Step 4:
Connect the power cable and the Ethernet cable (RJ45) to the
correct ports of your GWN7610/GWN7600.
Step 5:
Align the arrow on the GWN7610/GWN7600 AP with the arrow on
the locking tab of the mounting bracket and ensure that your GWN
is firmly seated on the mounting bracket.
Step 6:
Turn the GWN clockwise until it locks into place and fits the locking tab.

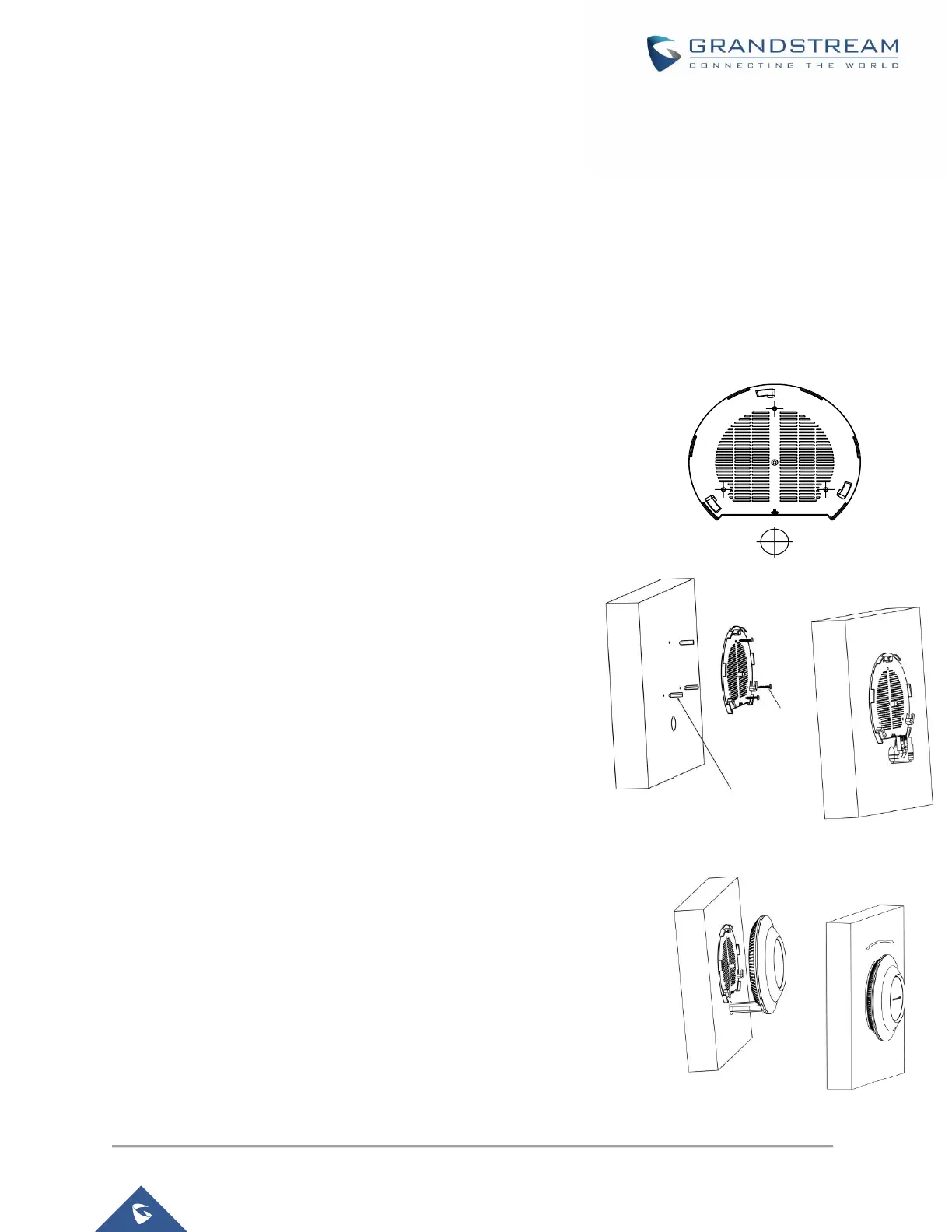

Figure 5: Wall Mount Steps 1 & 2
Figure 7: Wall Mount Steps 5 & 6
PA3.5 x 20 screw
Plastic Expansion Bolt
Figure 6: Wall Mount Steps 3 & 4
