GWN7610/GWN7600/GWN7600LR User Manual
Version 1.0.8.18

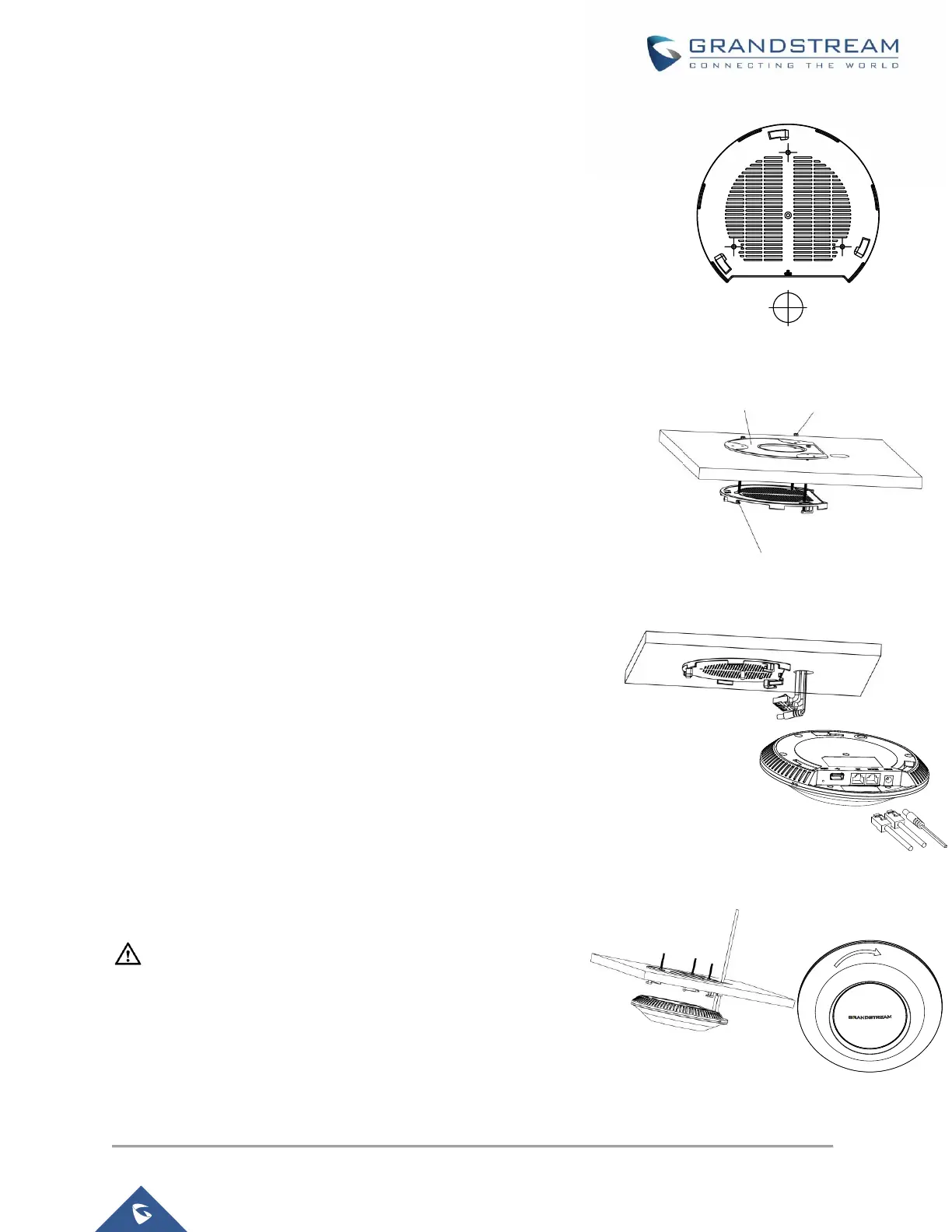

Ceiling Mount
Step 1:
Remove the ceiling tile.
Step 2:
Place the ceiling backing plate in the center of the ceiling tile and
mark the mounting screw holes (screw holes DIA 5.5mm, reticle
hole DIA 25mm).
Step 3:
Insert the screws through the mounting bracket.
Step 4:
Connect the power cable and the Ethernet cable (RJ45) to the
correct ports of your GWN7600.
Step 5:
Align the arrow on the GWN7600 AP with the arrow on the locking
tab of the mounting bracket and ensure that your GWN is firmly
seated on the mounting bracket and connect the network and
power cables.
Step 6:
Turn the GWN clockwise until it locks into place and fits the locking
tab.
Note:
Ceiling mounting is recommended for optimal coverage performance.
Figure 11: Ceiling Mount – Steps 5 & 6
Ceiling Mounting Bracket
M3 nut
M3.0x50 screw
Figure 10: Ceiling Mount – Step 4
Figure 9: Ceiling Mount – Step 3
Figure 8: Ceiling Mount – Steps 1 & 2
