INSTALLATION
Before deploying and configuring the GWN7610, the device needs to be properly powered up and
connected to the network. This section describes detailed information on installation, connection and
warranty policy of the GWN7610.
Equipment Packaging
Table 2: GWN7610 Equipment Packaging
Main Case
Yes (1)
Mounting Bracket
Yes (1)
Ceiling Mounting Bracket
Yes (1)
Plastic Expansion Bolt
Yes (3)
M3 NUT
Yes (3)
Screw (PM 3 x 50)
Yes (3)
Screw (PM 3.5 x 20)
Yes (3)
Quick Installation Guide
Yes (1)
GPL License
Yes (1)
GWN7610 Access Point Ports

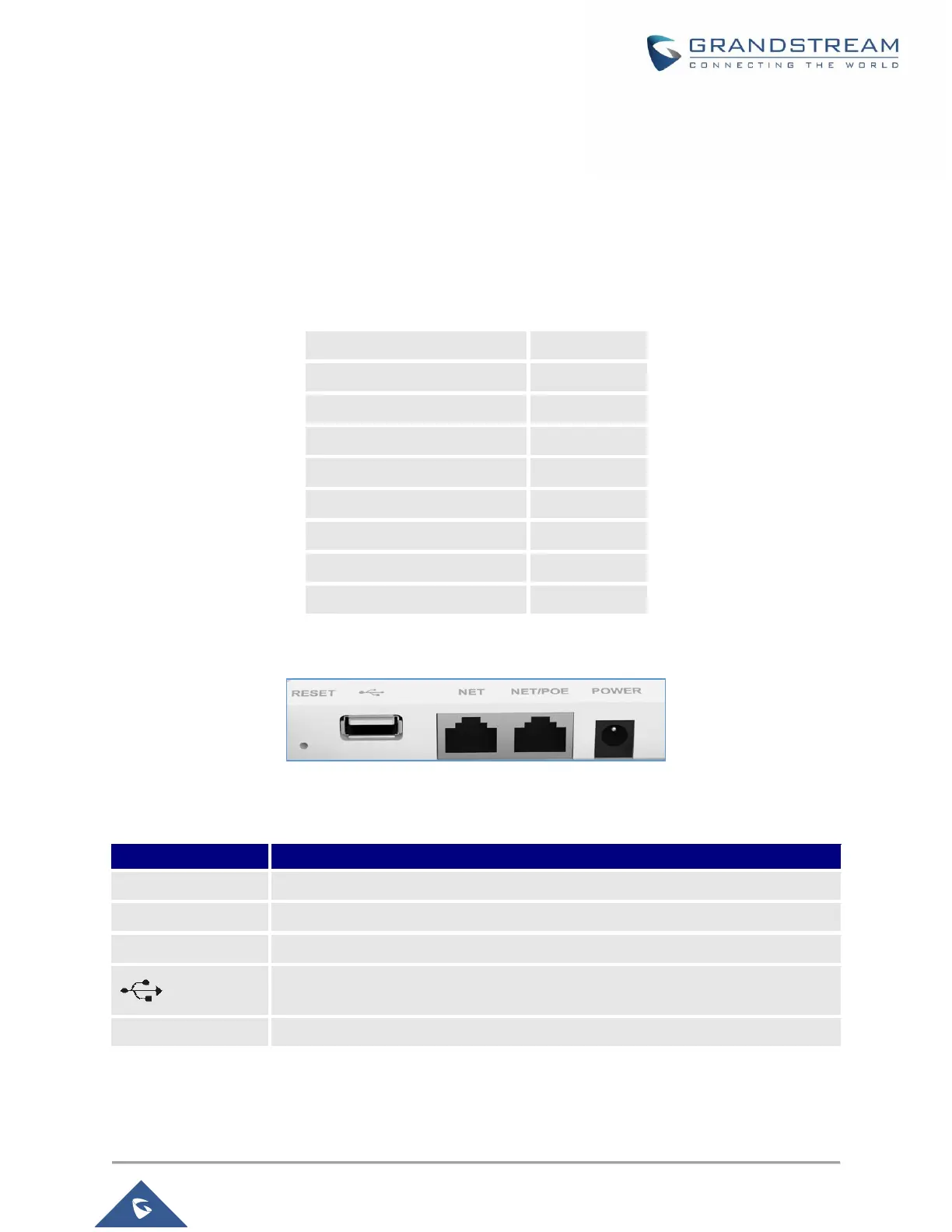

Figure 1: GWN7610 Ports
Table 3: GWN7610 Ports Description
Port
Description
Power
Power adapter connector (24V, 1A)
NET/PoE
Ethernet RJ45 port (10/100/1000Mbps) supporting PoE/PoE+ (802.3af/802.3at).
NET
Ethernet RJ45 port (10/100/1000Mbps) to your router or another GWN7610 series
USB 2.0 port (for future IOT & location based applications)
RESET
Factory reset button. Press for 7 seconds to reset factory default settings.

Grandstream Networks GWN7610 Specifications

General

Brand	Grandstream Networks
Model	GWN7610
Category	Wireless Access Point
Language	English
