Chapter 5 Removing and replacing FRUs
When installing replacement, ensure the LED solder ends clear the cut outs and are
not shorting against the bracket.

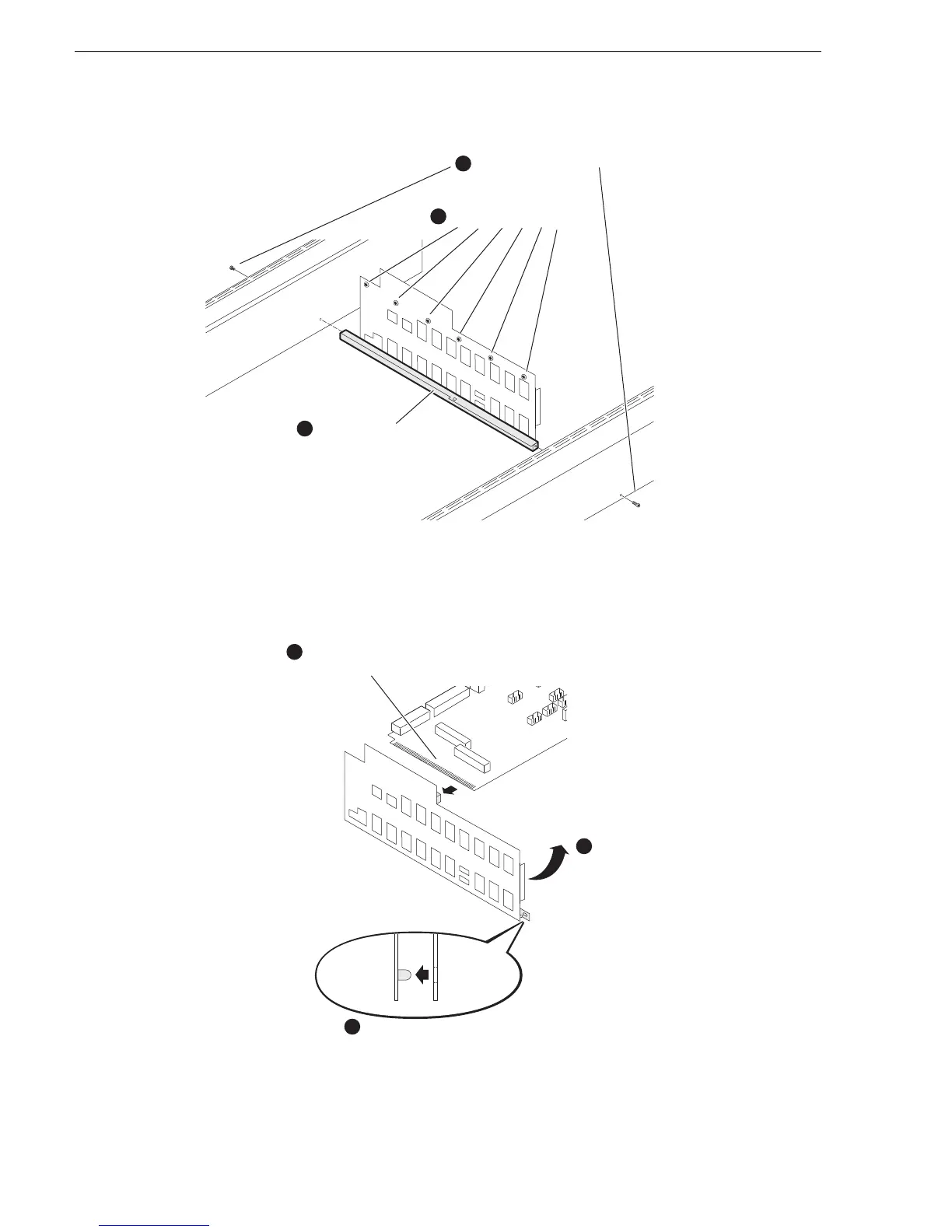

Remove six screws
6
Remove two screws
7
Remove bar
8
Disengage connector
from SCSI interface board
9
Carefully slide SCSI
backplane to the rear to
disengage the 12 LEDS
Slide backplan to the
side and rotate up to
remove
11
10
