July 28, 2008 K2 Media Client Service Manual 121
Graphics board removal
Graphics board removal

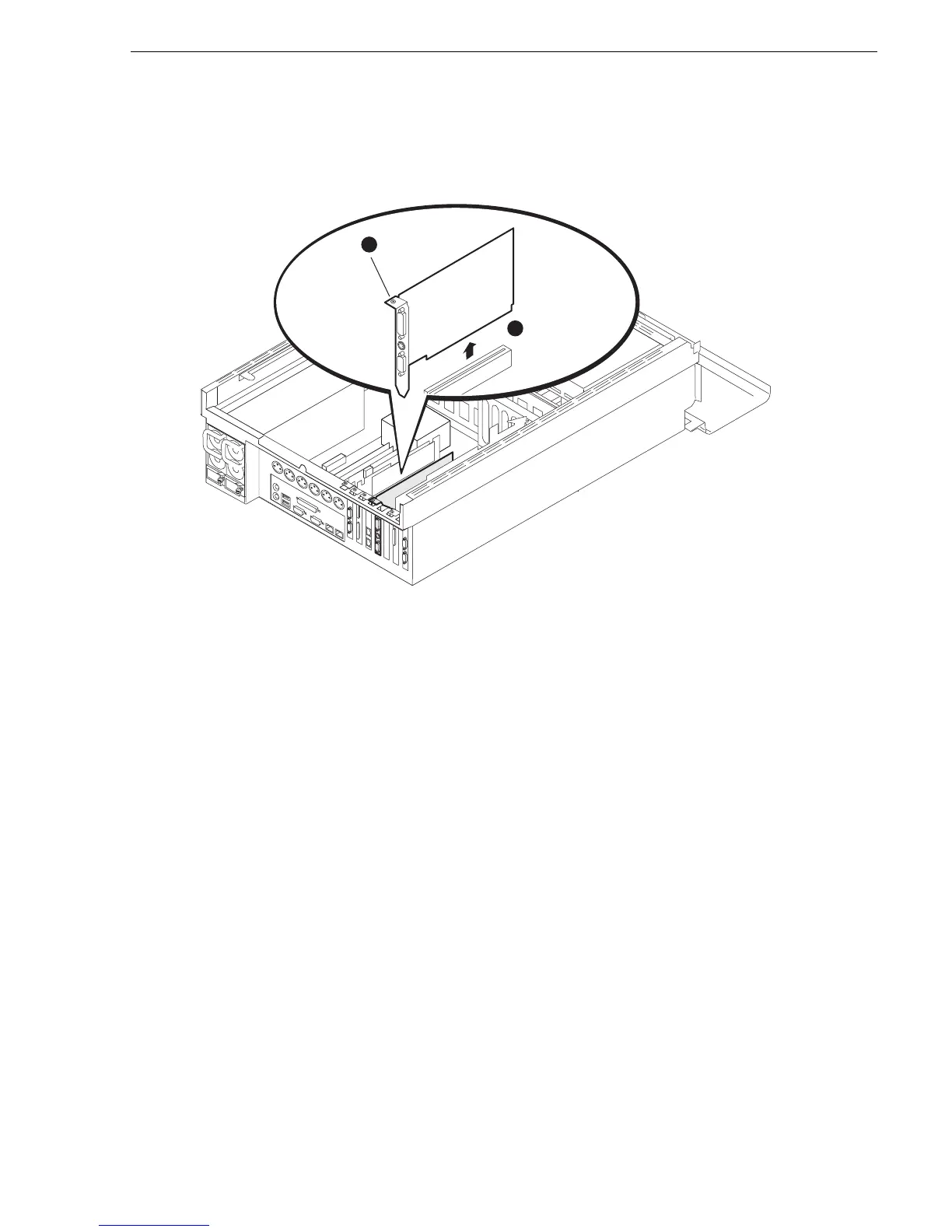

To remove the Graphics board, first remove the top cover and the codec board, then
proceed as illustrated.
The faulty Graphics board might be slightly taller than the other board and as such
require a shim to mount correctly. This shim can be discarded, as the replacement
Graphics board is the correct height to mount in the rear panel slot without a shim.
On all models the Graphics board is in rear panel slot four, as shown.
Remove board
2
Remove
screw
1
To Next Page
