30 K2 Media Client Service Manual July 28, 2008
Chapter 1 Product Description

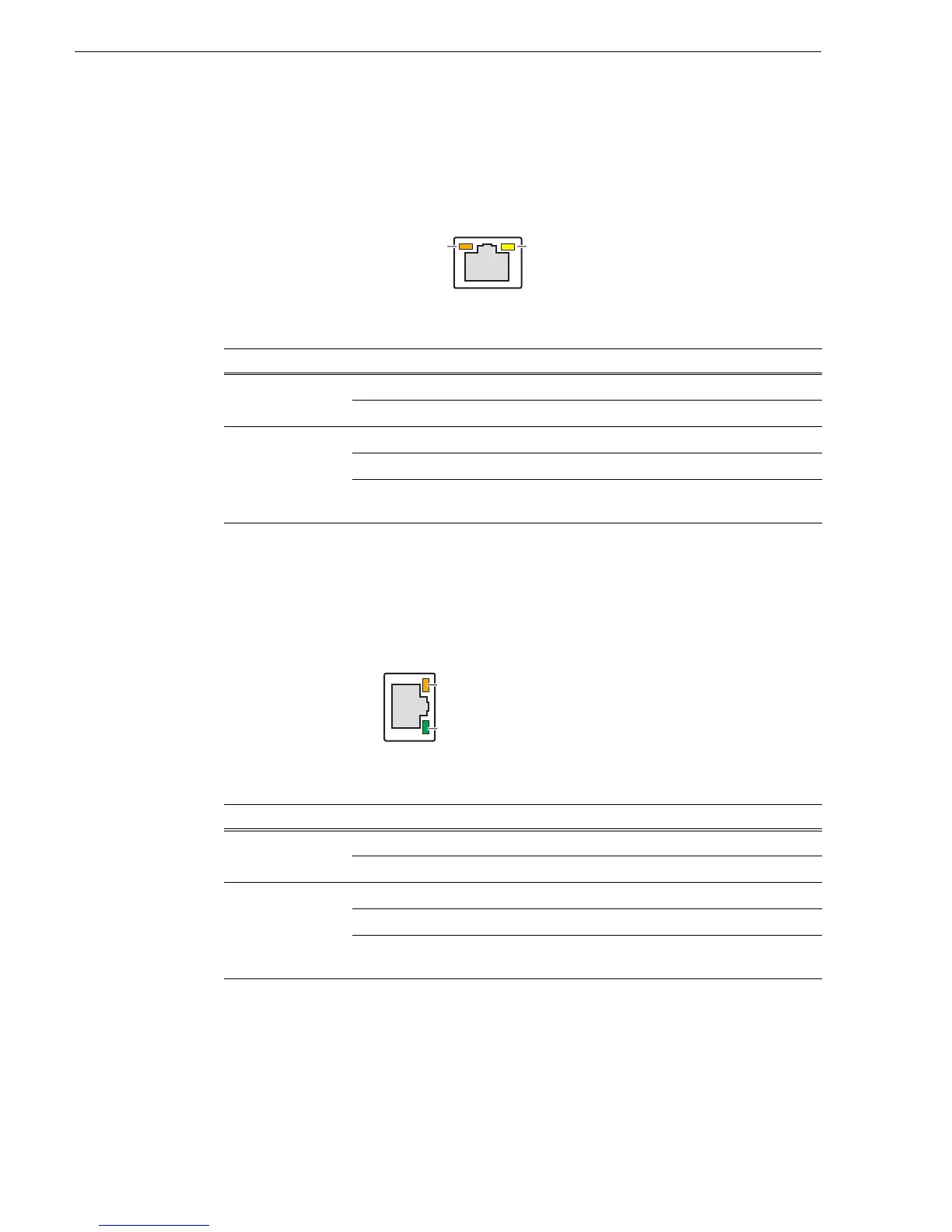

Motherboard LAN connector indicator codes
The motherboard has two RJ-45 LAN connectors that include integrated status LEDs.
The LEDs are oriented as follows:
The meanings of the LED states are described in the following table:
If a LAN connector is faulty, you must replace the motherboard.
Dual Ethernet adapter LAN connector indicator codes
The dual Ethernet adapter has two RJ-45 LAN connectors that include integrated
status LEDs. The LEDs are oriented as follows:
The meanings of the LED states are described in the following table:
If a LAN connector is faulty, you must replace the dual Ethernet adapter.
LED LED state Condition
Green/Orange Green On 100 MHz.
Orange On 1 GHz
Yellow Off LAN link is not established
On (steady state) LAN link is established
On (brighter and pulsing) The computer is communicating with another
computer on the LAN.
LED LED state Condition
Green/Orange Green On 100 MHz.
Orange On 1 GHz
Green Off LAN link is not established
On (steady state) LAN link is established
On (brighter and pulsing) The computer is communicating with another
computer on the LAN.
Yellow LED
Green/Orange LED
Green LED
Green/Orange LED
