Chapter 3: Installation
Power Sweeps in Bins with Concrete Floors
NOTE: GSI does not recommend installing the Direct Gear Drive Power Sweep in concrete. When
flush-floor installations are necessary, a pre-formed trench is needed. A steel trench cover
adequate for the grain height and trench size must be installed. Consult the factory for further
information.

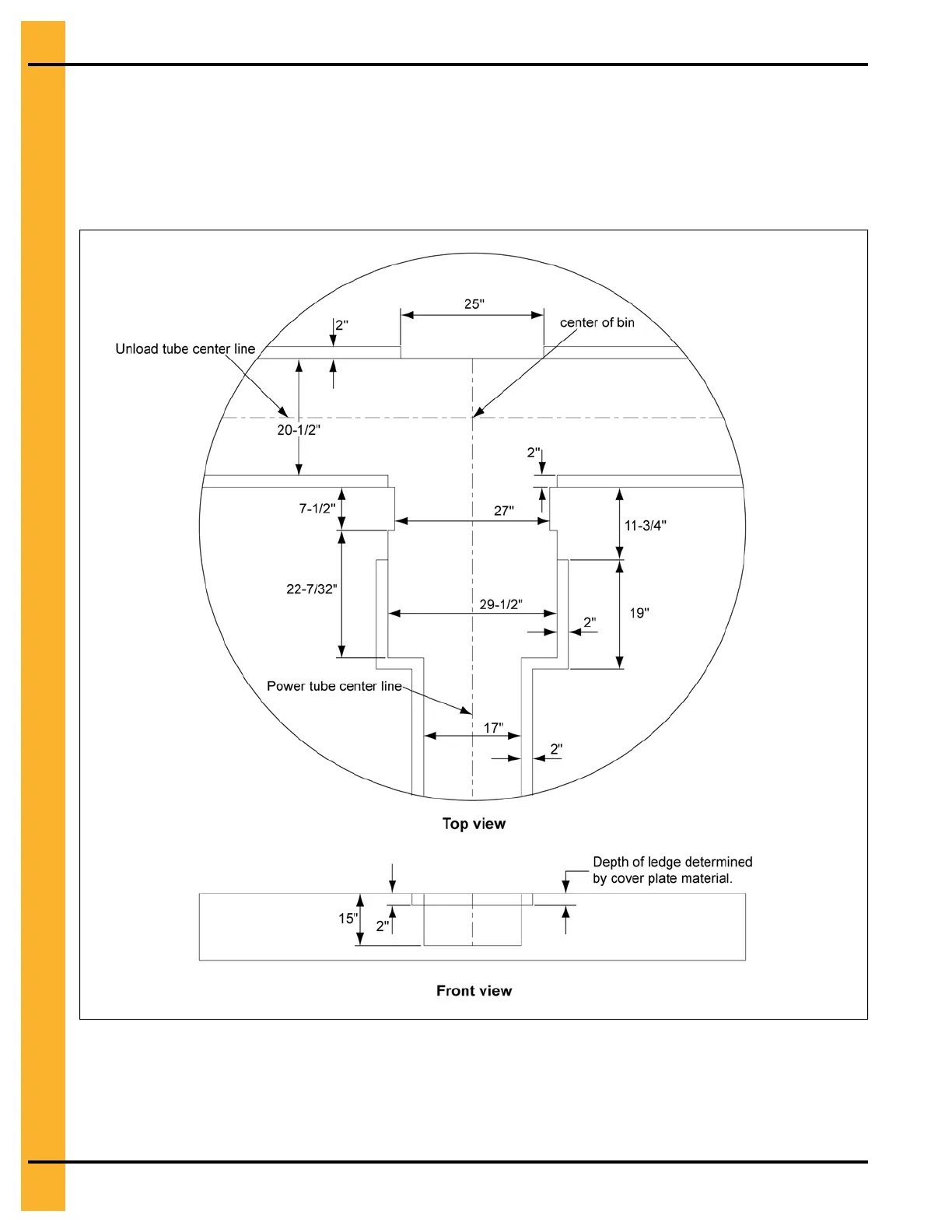

Figure 3-1 Power sweep dimensions - floor view
18
PNEG-2308 Chain Loop Power Sweep
