Chapter 7: Parts List
Sweep Wheel to Backshield Connection

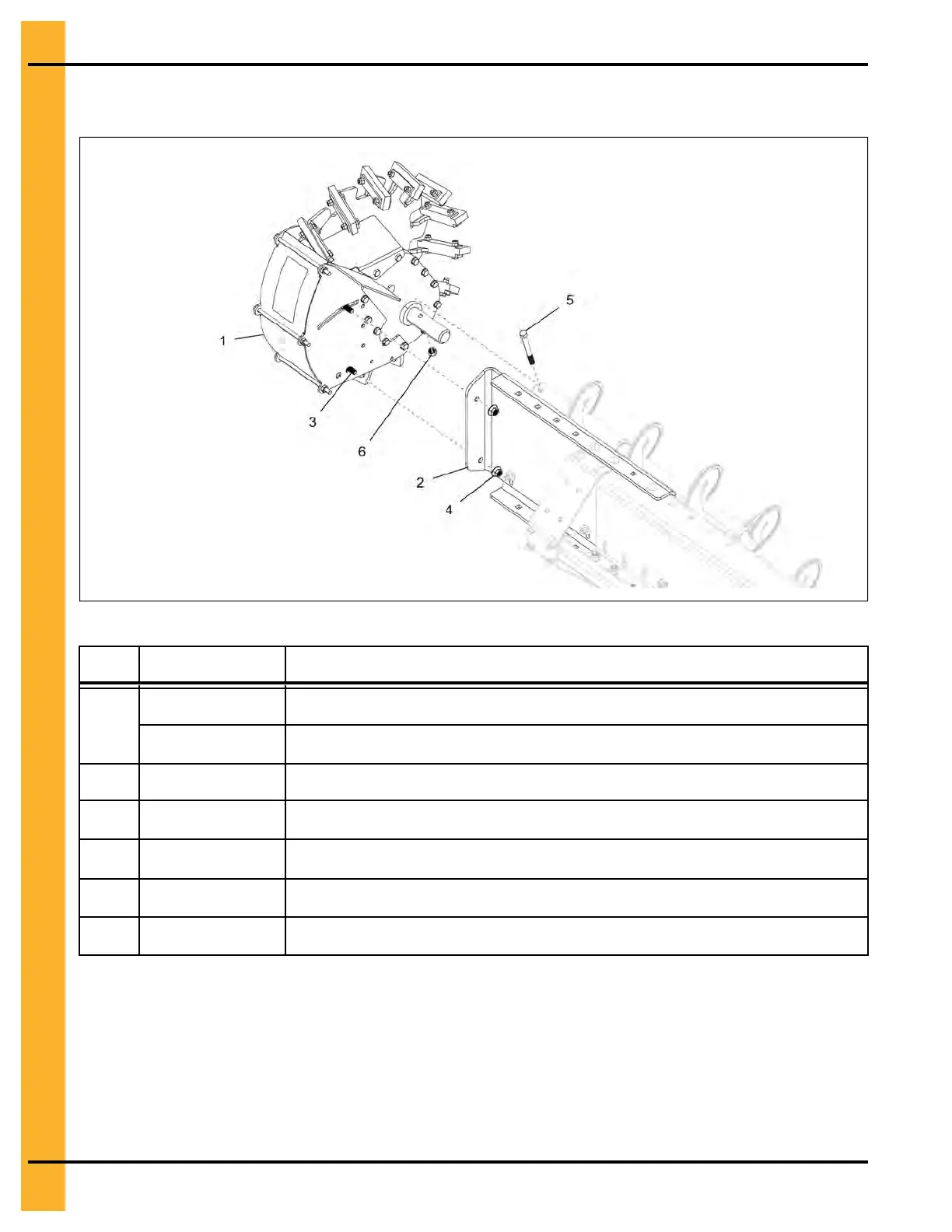

Figure 7-18 Sweep wheel to backshield connection parts
Table 7-16 Sweep wheel to backshield connection parts list
Ref # Part #
Description
1
TG00203
Elevator Wheel Assembly - Fits Galvanized. Back Plate Sweeps 30' - 48' Bins
TG00227
Elevator Wheel Assembly - Fits 54' - 72' Bins
2 GC21150 Wheel Mount
3 S-3585
Bolt, Carriage 3/8"-16 x 1" ZN Grade 5
4 S-968
Nut, Flange 3/8"-16 ZN Grade 5 Wide Flange
5
S-10712
Bolt, HHCS 3/8"-16 x 3-1/2" YDP Grade 8
6 S-8251
Nut, Stover 3/8"-16 ZN Grade C
96
PNEG-2308 Chain Loop Power Sweep
