Chapter 3: Installation
Installing the Sweep Wheel Assembly
Before You Begin
Make sure the wheel mount is installed to the flighting shield assembly.
1. Slide the sweep wheel assembly (99) shaft into the last flight section (90). Attach the sweep wheel
assembly (99) to the wheel mount (98) using two 3/8" x 1" carriage bolts (26) and 3/8" flange nuts
(40).
NOTE: Install the carriage bolts (26) with bolt head on the inside of the sweep wheel assembly (99).

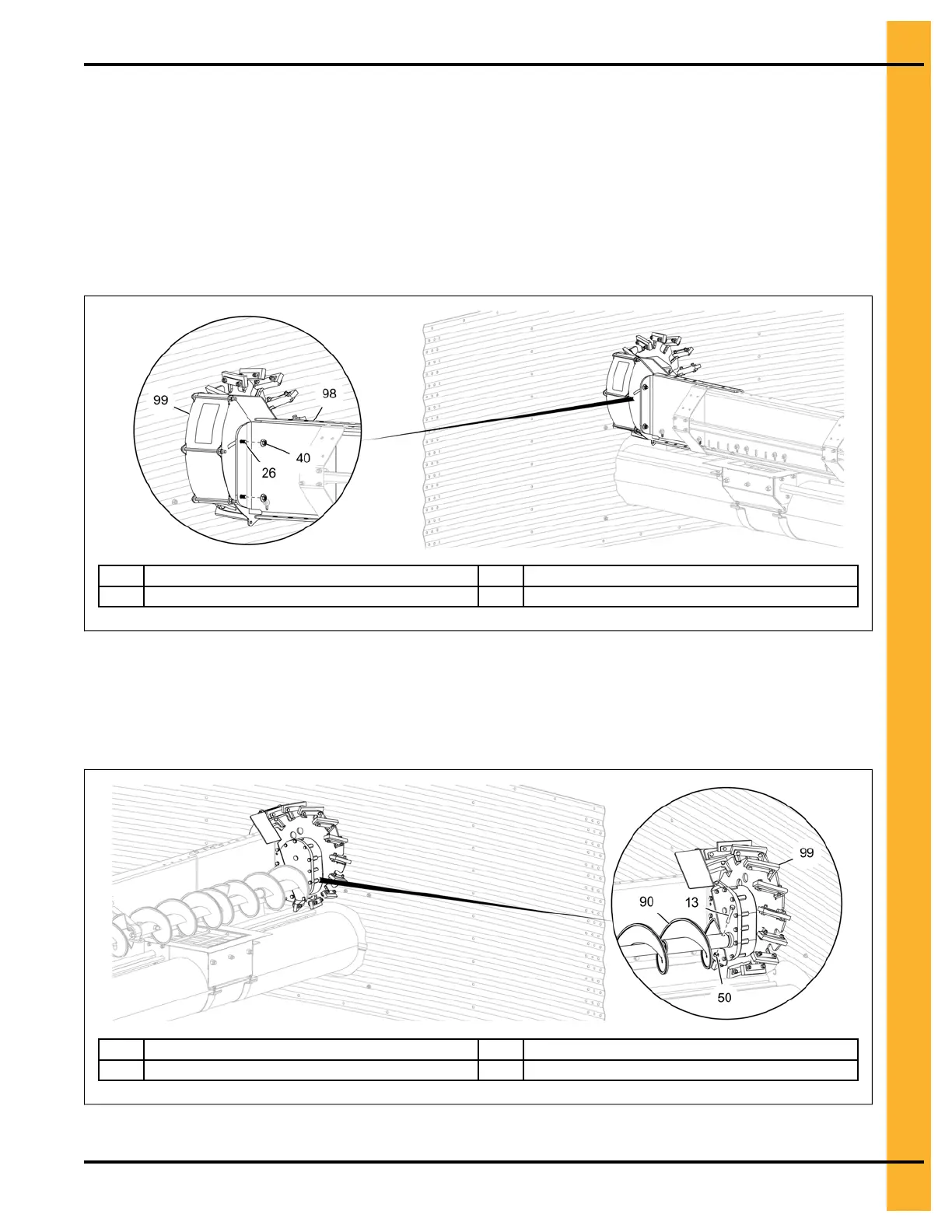

Figure 3-29 Installing the sweep wheel assembly to the wheel mount
26
3/8" x 1" carriage bolt
98 Wheel mount
40
3/8" flange nut
99
Sweep wheel assembly
2. Secure the sweep wheel assembly (99) shaft to the last flight section (90) using a 3/8" x 3-1/2"
HHCS bolt (13) and a 3/8" stover nut (50).
Figure 3-30 Attaching the sweep wheel assembly to the last flight section
13
3/8" x 3-1/2" HHCS bolt
90
Last flight section
50
3/8" stover nut
99
Sweep wheel assembly
