Chapter 3: Installation
Installing the Intermediate Well
1. Install the auxiliary intermediate well (61) to the unload tube (54) near the center well on the gate
opening side using half bands (55), 5/16" x 1-1/4" HHCS bolts (16) and 5/16" flange nuts (39).
2. Install the intermediate wells (60) to the unload tube (54) on both sides of the center well using half
bands (55), 5/16" x 1-1/4" HHCS bolts (16) and 5/16" flange nuts (39).
NOTE:
a. The intermediate wells (60) on the center well gate side should be installed with the gate
opening in the same direction as the center well gate opening.
b. The intermediate wells on the opposite side should be installed with the gate opening
direction opposite to the center well gate opening.

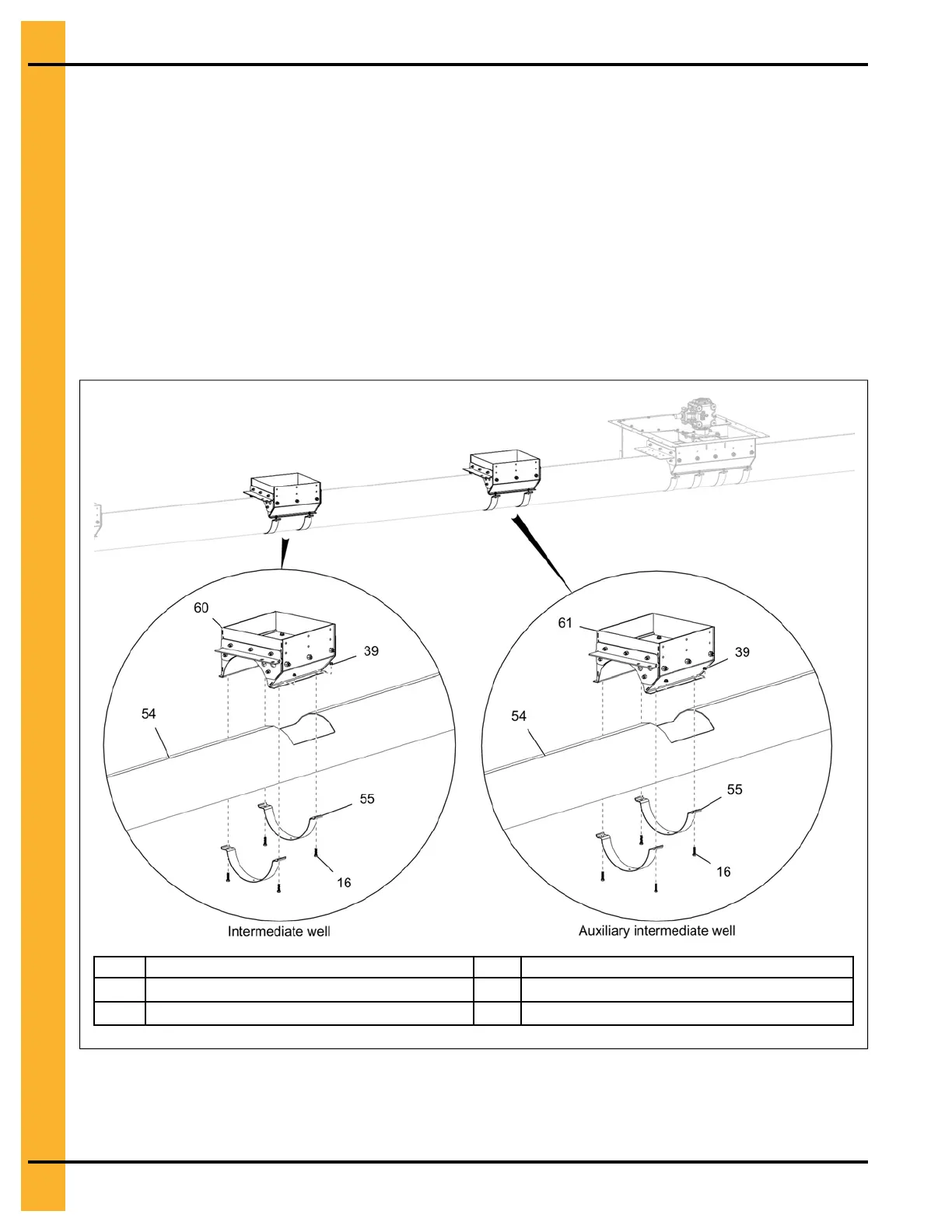

Figure 3-8 Installing the intermediate wells
16 5/16" x 1-1/4" HHCS bolt
55
Half band
39
5/16" flange nut
60 Intermediate well
54 Unload tube 61
Auxiliary intermediate well
After You Finish
After installing the intermediate wells, check if the intermediate wells are also level to the center well side
to side. If not, adjust the intermediate wells by loosening, adjusting and re-tightening the half bands or by
loosening the flange bolts at the center well connection.
