GSi 8" - Backshield Connections

Chapter 7: Parts List
Backshield Connections

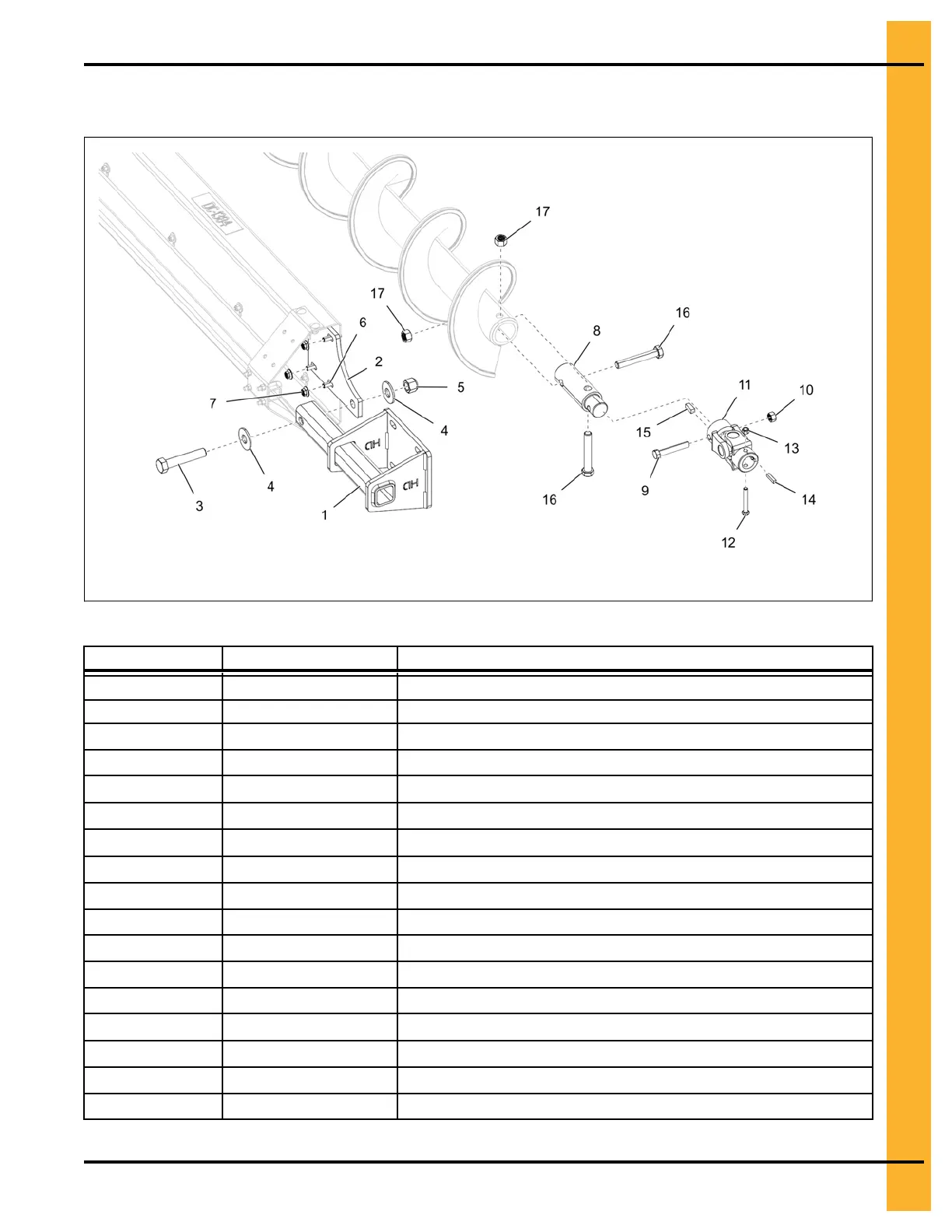

Figure 7-19 Backshield connections parts
Table 7-17 Backshield connections parts list
Ref # Part #
Description
1 GK80713-Y
Gearbox Mount Assembly - 10" HD Ochre
2 GK80608-Y Backshield Pivot Bracket - 8"
3 S-7884
Bolt, HHCS 3/4"-10 x 4" Grade 8
4 S-866
Washer, Flat 3/4" USS ZN
5
S-7217
Nut, Nylock 3/4"-10 ZN Grade 5
6 S-9066
Bolt, Flange 3/8"-16 x 1-1/4" ZN Grade 5
7 S-968
Nut, Flange 3/8"-16 ZN Grade 5 Wide Flange
8 GK80726
U-Joint Connecting Shaft 2.0" x 6.5"
9 S-8252
Bolt, HHCS 1/2"-13 x 3" YDP Grade 8
10 S-8315
Nut, Lock 1/2"-13 ZN Grade C
11 GK7614
U-Joint 1.25" B and 1.5" B x 5.50" Long 12E
12 S-10107
Bolt, HHCS 3/8"-16 x 2-1/2" YDP Grade 8
13 S-8251
Nut, Stover 3/8"-16 ZN Grade C
14 S-8382
Key, Square 1/4" x 1/4" x 1-1/4" L
15 GC03540
Key, 3/8" x 3/8" x 1"
16 S-7893
Bolt, HHCS 5/8"-11 x 4" YDP Grade 8
17 S-8606
Nut, Stover 5/8"-11 ZN Grade C
PNEG-2308 Chain Loop Power Sweep
97
