Chapter 3: Installation
Installing the Sweep Stop
1. Place the pivot point of the sweep stop assembly (106) approximately 18" from the bin floor. Using it
as a template, field drill four 3/8" holes and mount it to the bin wall using four 3/8" bin bolts (28) and
flange nuts (42).
NOTE: The sweep stop assembly should be installed in such a way that it will stop the sweep before
it reaches the walk-through door.

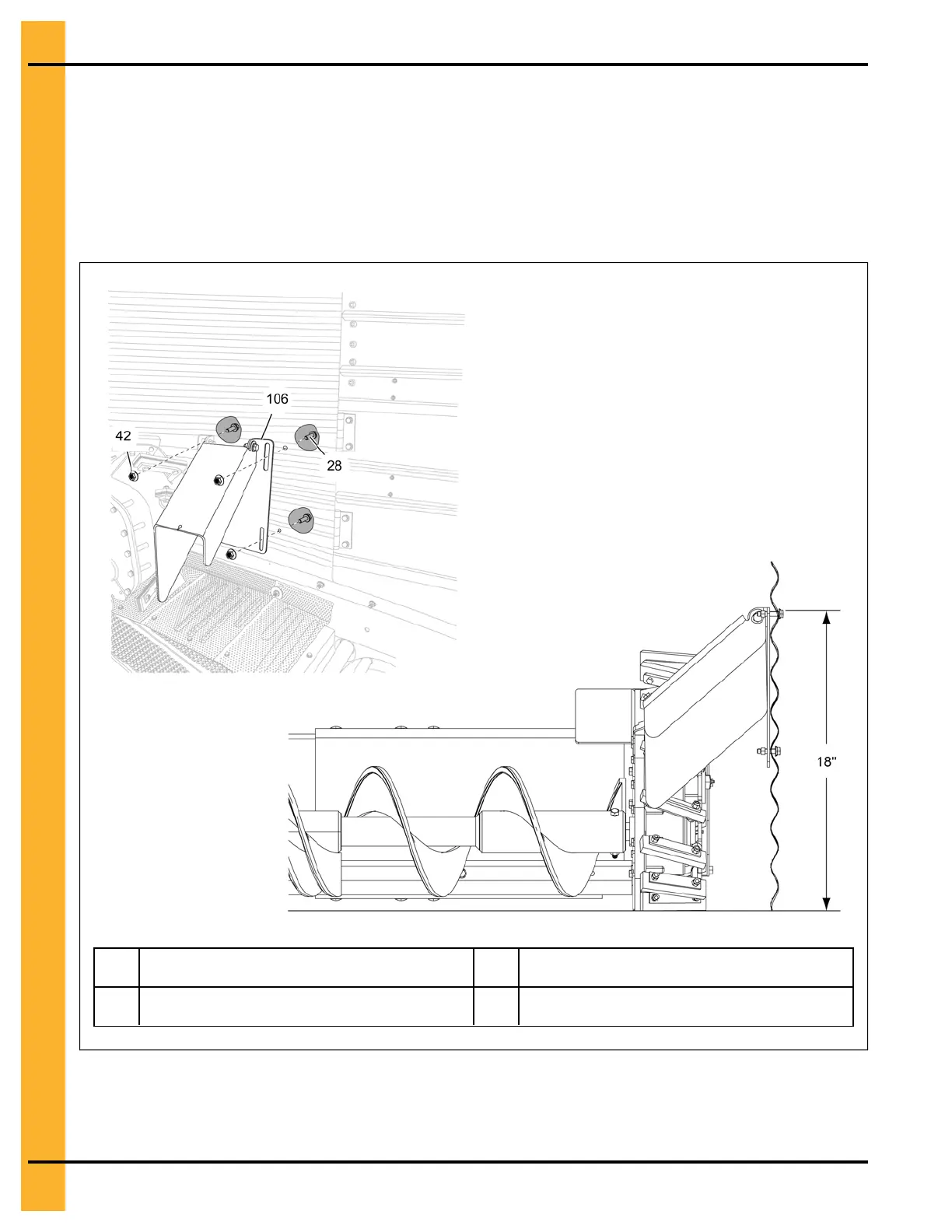

Figure 3-39 Installing the sweep stop assembly to the bin wall
28
3/8" bin bolt
106
Sweep stop assembly
42 Flange nut
44
PNEG-2308 Chain Loop Power Sweep
