Chapter 3: Installation
Installing the Backshield Support Assembly
Backshield support assembly is used for 33 ft. and larger sweeps only.
What You Should Know
The position of the backshield support assembly varies with sweep length. Refer to the below layout to
install the backshield support assembly at correct locations for each sweep.

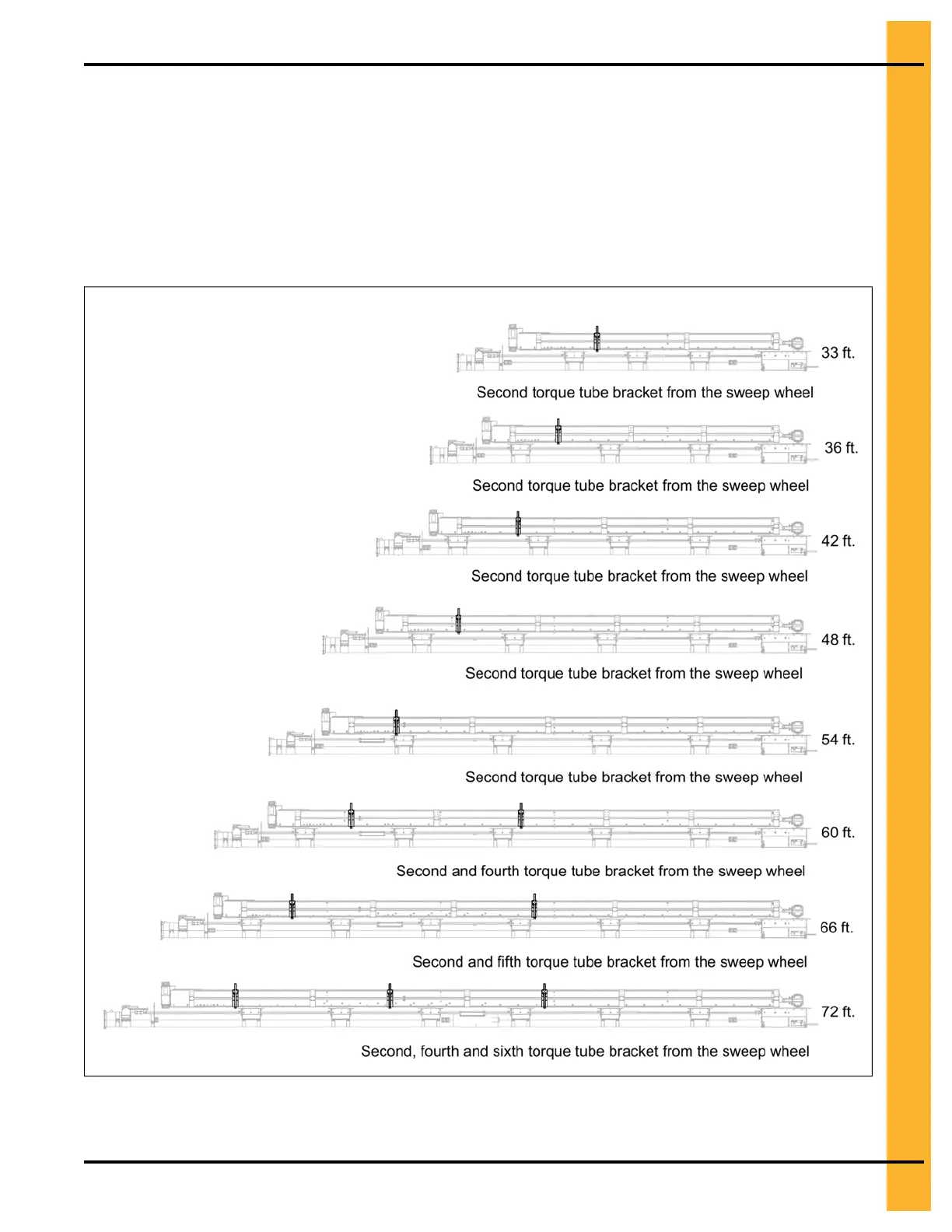

Figure 3-32 Backshield support assembly layout
PNEG-2308 Chain Loop Power Sweep
