GSi 8" - Assembling the Drive Shafts (42 - 72 Only)

Chapter 3: Installation
Assembling the Drive Shafts (42' - 72' Only)
1. Assemble the drive shaft (113) and drive shaft extension (112) together using the coupler (115),
5/16" x 3/8" set screws (52) and keys (114).
NOTE: Loosen the set screws (52) from the coupler (115) before sliding in the shafts (112 and 113).
After the shafts are inserted completely, re-tighten the set screws.

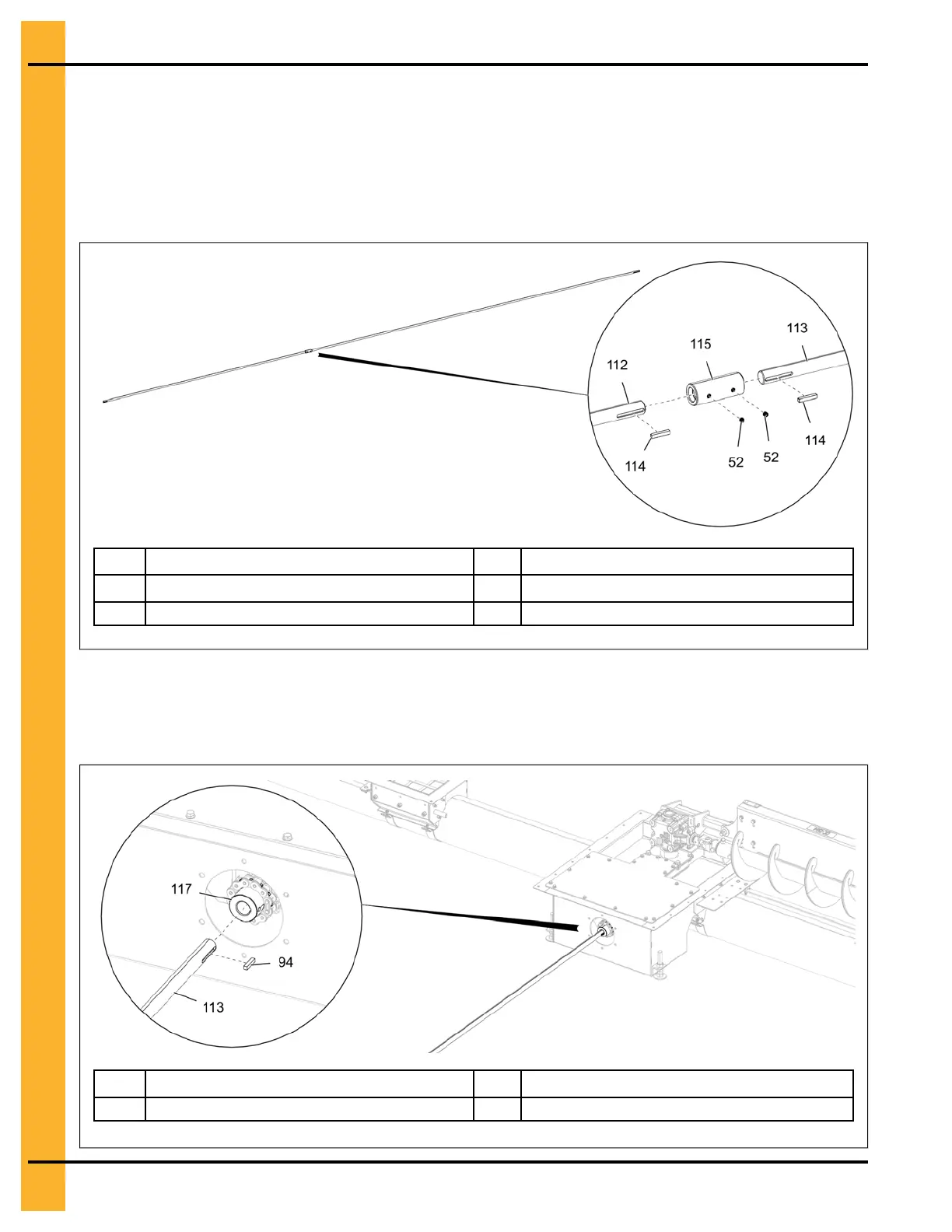

Figure 3-44 Assembling the drive shafts (42' - 72' only)
52 5/16" x 3/8" set screw 114
1/4" x 1-1/2" key
112 Drive shaft extension 115
Coupler
113 Drive shaft
2. Loosen the set screws on the drive coupler (117) in the center well and insert the drive shaft (113)
into the drive coupler (117). Secure the drive shaft (113) with a key (94) and re-tighten the set
screws.
Figure 3-45 Installing the drive shaft to the center well drive coupler
94
Key
117
Drive coupler
113 Drive shaft
48
