GSi 8" - Rack and Pinion

Chapter 7: Parts List
Rack and Pinion

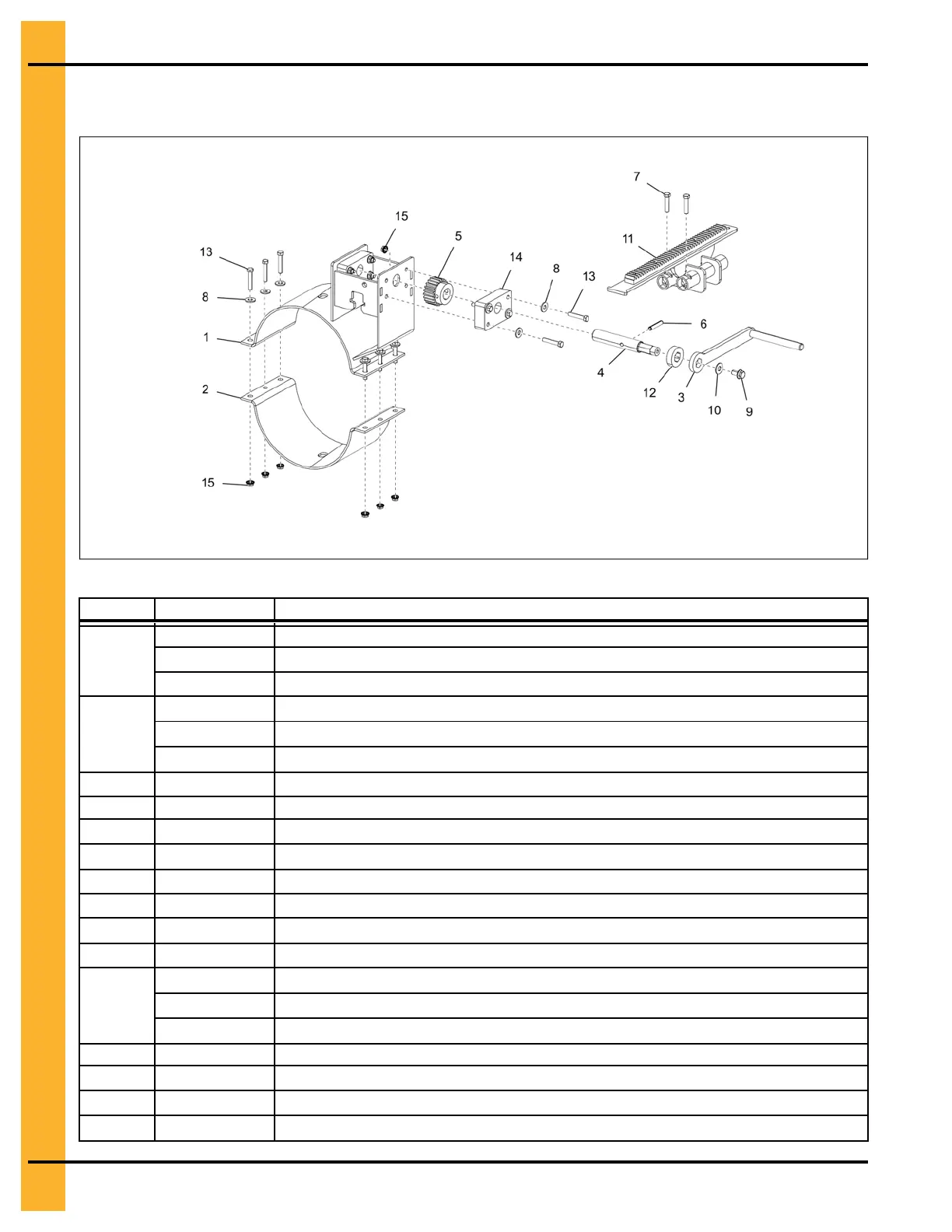

Figure 7-6 Rack and pinion parts
Table 7-4 Rack and pinion parts list
Ref # Part #
Description
1
GC21302-BS
Weldment, with UHMW 8" Rack and Pinion Crank Box Painted
GC21297-BS
Weldment, with UHMW 10" Rack and Pinion Crank Box Painted
8120385-BS
Weldment, with UHMW 12" Rack and Pinion Crank Box Painted
2
GK1603-BS
Band, Half 8“ x 6" 12 Gauge - Bin Silver
GK1509-BS
Band, Half 10" x 6" 7 Gauge - Bin Silver
GC11749-BS
Band, Half 12" x 6" 7 Gauge - Bin Silver
3 GK80404-BS
Gate Crank Weldment, Painted
4 GK6845 Rack and Pinion Crank Shaft Hex
5
GC09859
Gear, Spur 10 DP 14.5 PA 1" FX22T Martin #S1022; 1" Bore with 0.313 Pin Hole
6 S-8397
Pin, Spring 5/16" x 1-3/4" Plain Steel Slotted Rolled
7 S-2741
Bolt, HHCS 5/16"-18 x 1-1/2" ZN Grade 5
8 S-845
Washer, Flat 5/16" USS ZN
9 S-9067
Bolt, Flange 3/8"-16 x 3/4" ZN Grade 5
10 S-248
Washer, Flat 3/8" 7/16" ID 1" OD YDP
11
GK81594
Assembly, with UHMW 8" Rack and Pinion Rack Bar
GK81592
Assembly, with UHMW 10" Rack and Pinion Rack Bar
8120388
Assembly, with UHMW 12" Rack and Pinion Rack Bar
12 GK81591 Rack and Pinion Shaft Washer
13 S-7149
Bolt, HHTB 5/16"-18 x 1-3/4" ZN Grade 5
14 GK81590
Rack and Pinion Shaft Bushing
15 S-10268
Nut, Flange 5/16"-18 JS 500 Grade 5
78
PNEG-2308 Chain Loop Power Sweep
