Chapter 3: Installation
Installing the Center Well
1. Locate the center of the bin and place the center well (53) into position with the vertical shaft in the
gearbox at the center of the bin.
2. Attach the center well (53) to the unload tube (54) using four half bands (55), eight 5/16" x 1-1/4"
HHCS bolts (16) and eight 5/16" flange nuts (39).

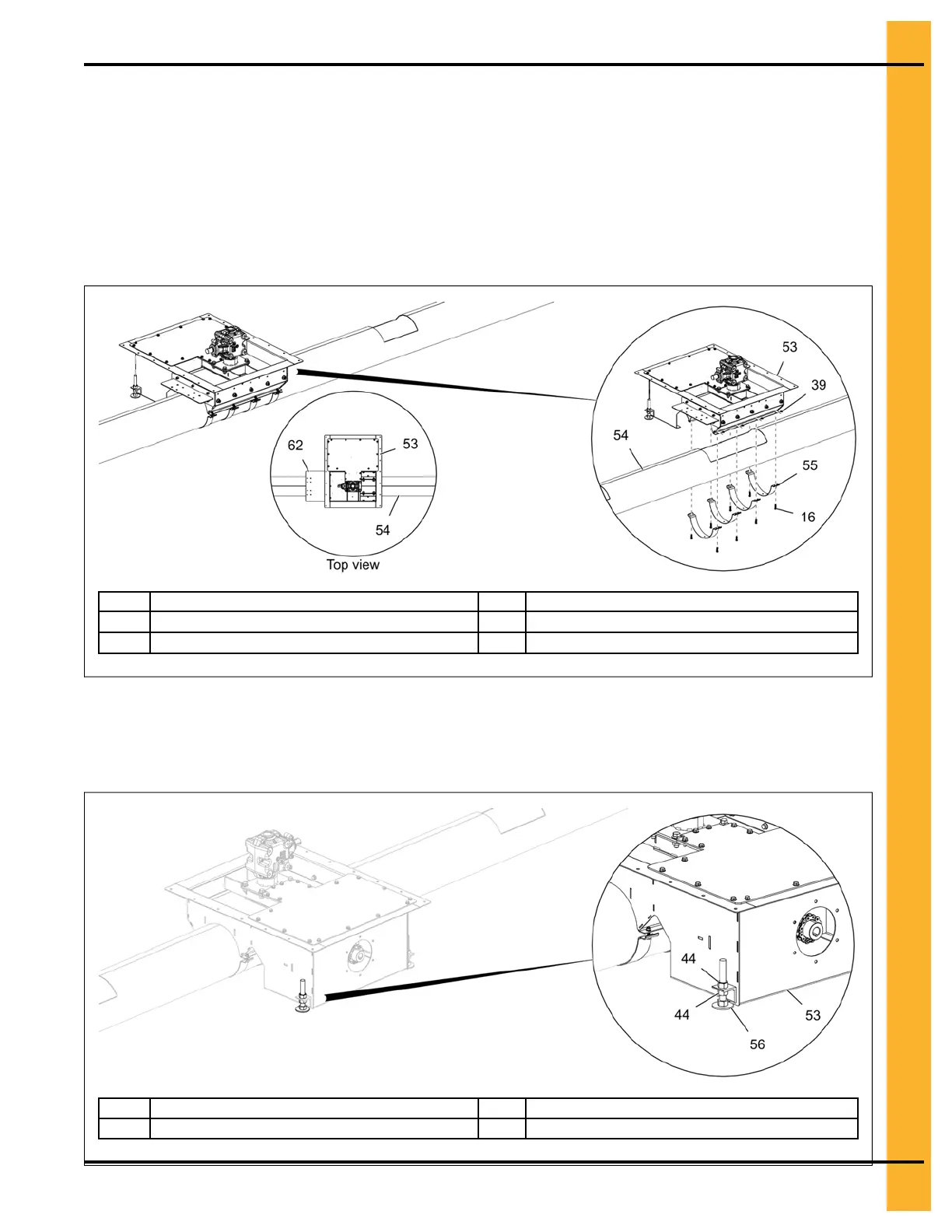

Figure 3-2 Attaching the center well to the unload tube
16 5/16 x 1-1/4" HHCS bolt 54 Unload tube
39
5/16" flange nut
55
Half band
53 Center well 62
Center well gate
3. Level the center well (53) to the concrete floor by adjusting the length of the leveling leg (56) using
both 3/4" hex nuts (44) (above and below the center well flange) located at the bottom corners of the
center well (53).
Figure 3-3 Leveling of center well
44 3/4" hex nut 56
Leveling leg
53 Center well
PNEG-2308 Chain Loop Power Sweep
