Chapter 3: Installation
Assembling and Adjusting the Sweep Support Skid (60' - 72' Bins)
For sweeps up to 54' diameter bins, the sweep support skid is pre-assembled to the shield before being
shipped. For sweeps above 60' diameter bins, the sweep support skid is not pre-assembled and will need
to be assembled to the shield before connecting the sweep flighting to the U-joint shaft attached to the
gearbox.
1. Attach the sweep support skid (105) to the hanger bracket assembly (86) using 1/2" x 4-1/2" HHTB
bolt (2), two 1/2" flat washers (33), 1/2" lock nut (51) and two 1/2" flange nuts (41) at the front side of
the shield.
2. Attach the sweep support skid (105) to the to the backshield (84) using 3/8" x 1-1/2" FHSCS bolt (3)
and 3/8" nylock nut (47) at the backside of the shield.

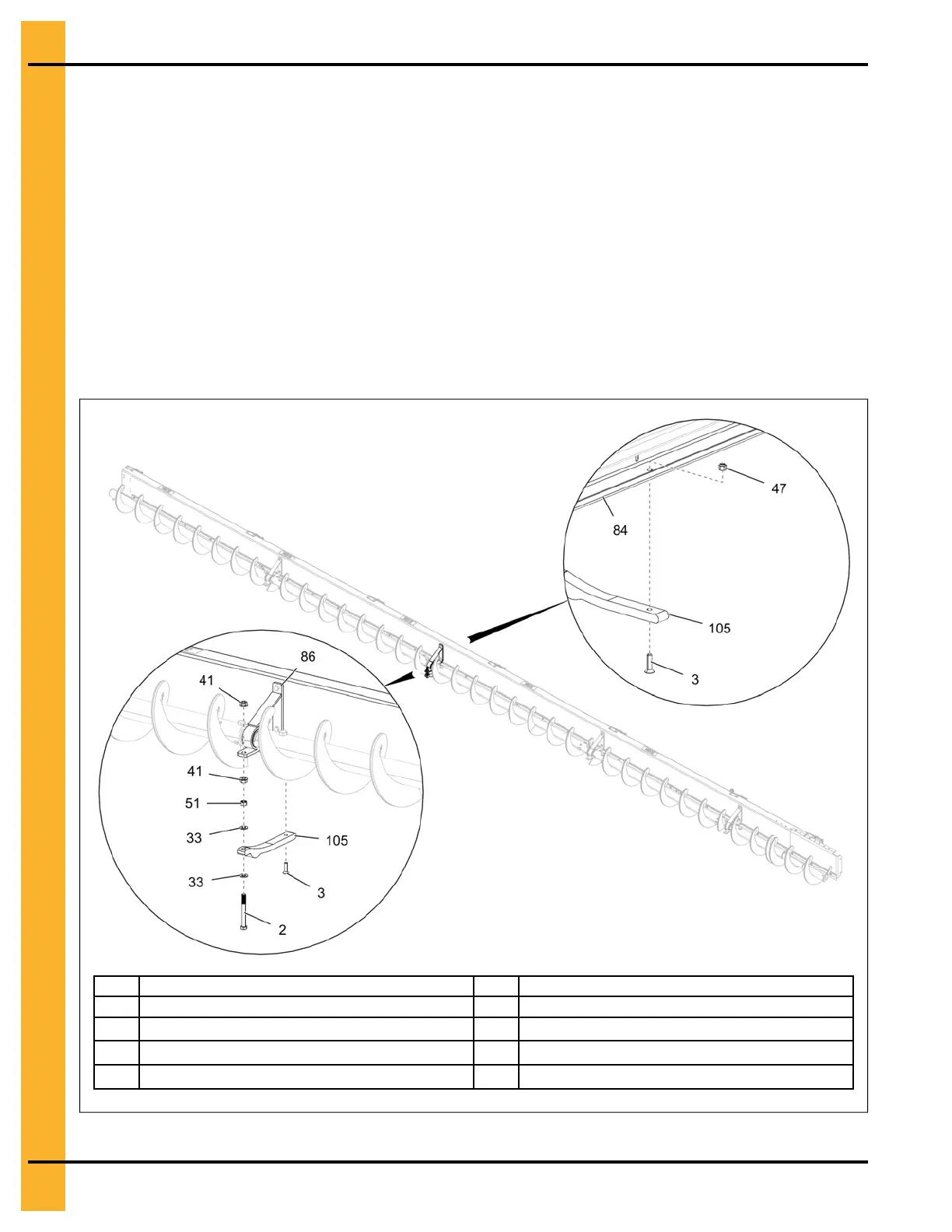

Figure 3-37 Assembling the sweep support skid
2
1/2" x 4-1/2" HHTB bolt
51
1/2" lock nut
3 3/8" x 1-1/2" FHSCS bolt 84 Backshield
33
1/2" flat washer
86 Hanger bracket assembly
41
1/2" flange nut
105
Sweep support skid
47
3/8" nylock nut
42
