Chapter 3: Installation
Installing the Bin Flanges for Power tube
1. Attach the upper bin flange (118) and lower bin flange (119) loosely to the power tube (111) using
5/16" x 1-1/2" HHCS bolts (17) and 5/16" flange nuts (39).

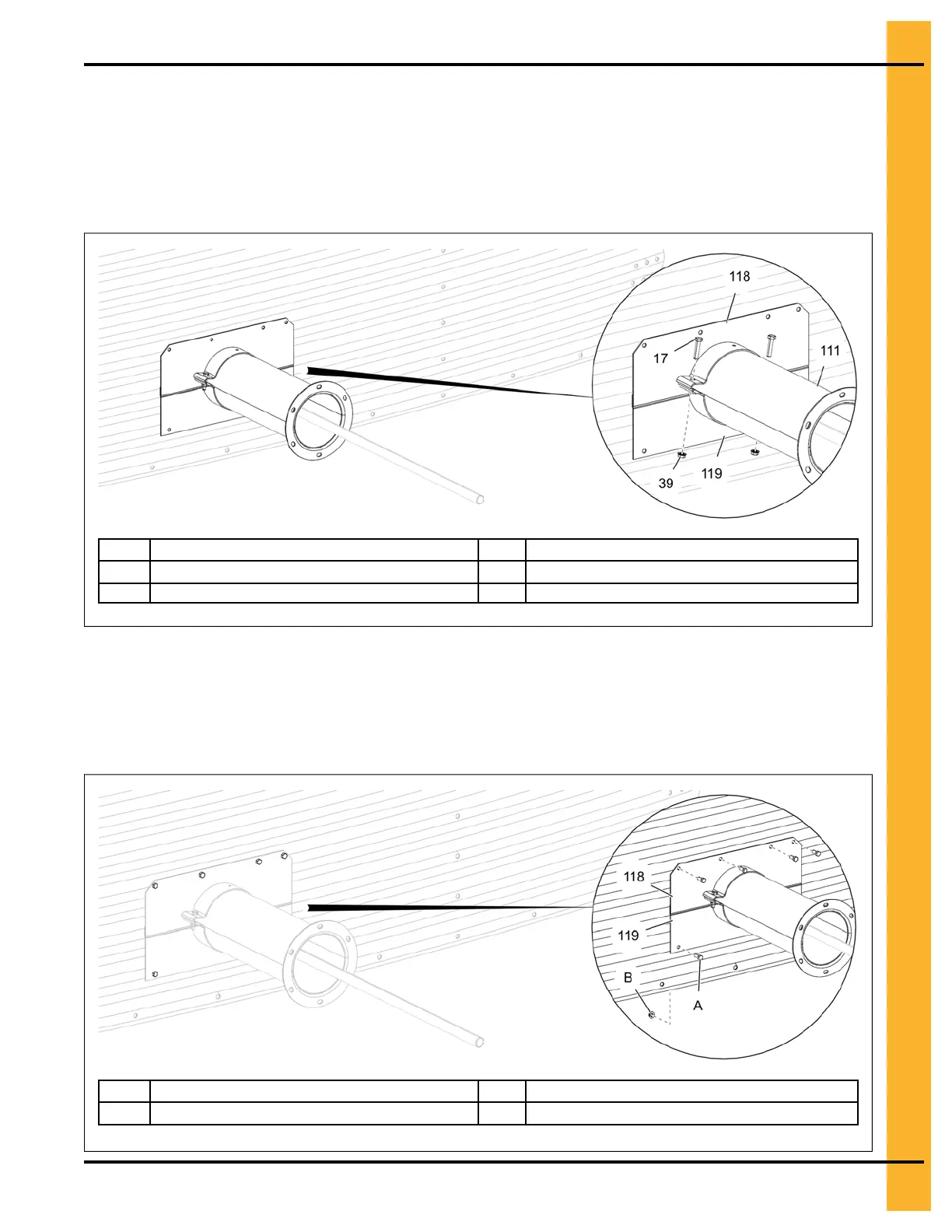

Figure 3-46 Installing the upper and lower bin flanges for power tube
17 5/16" x 1-1/2" HHCS bolt 118
Power tube upper bin flange
39
5/16" flange nut
119
Power tube lower bin flange
111 Power tube
2. Slide the bin flanges flush with the bin wall and tighten the bolts connecting the two flanges.
3. Drill the holes in the bin wall through the four holes located in the upper bin flange (118) and two
holes located in the lower bin flange (119) and secure the bin flanges to the bin wall using six
standard bin bolts (A) and flange nuts (B).
Figure 3-47 Secure the upper and lower bin flanges
A Standard bin bolt 118
Power tube upper bin flange
B
Flange nut
119
Power tube lower bin flange
PNEG-2308 Chain Loop Power Sweep
49
