Disassembly
Service Manual for the Accutherm Ultra Printer 7-25
15. Remove Latch Arm Hub.
16. Remove Retaining Ring.

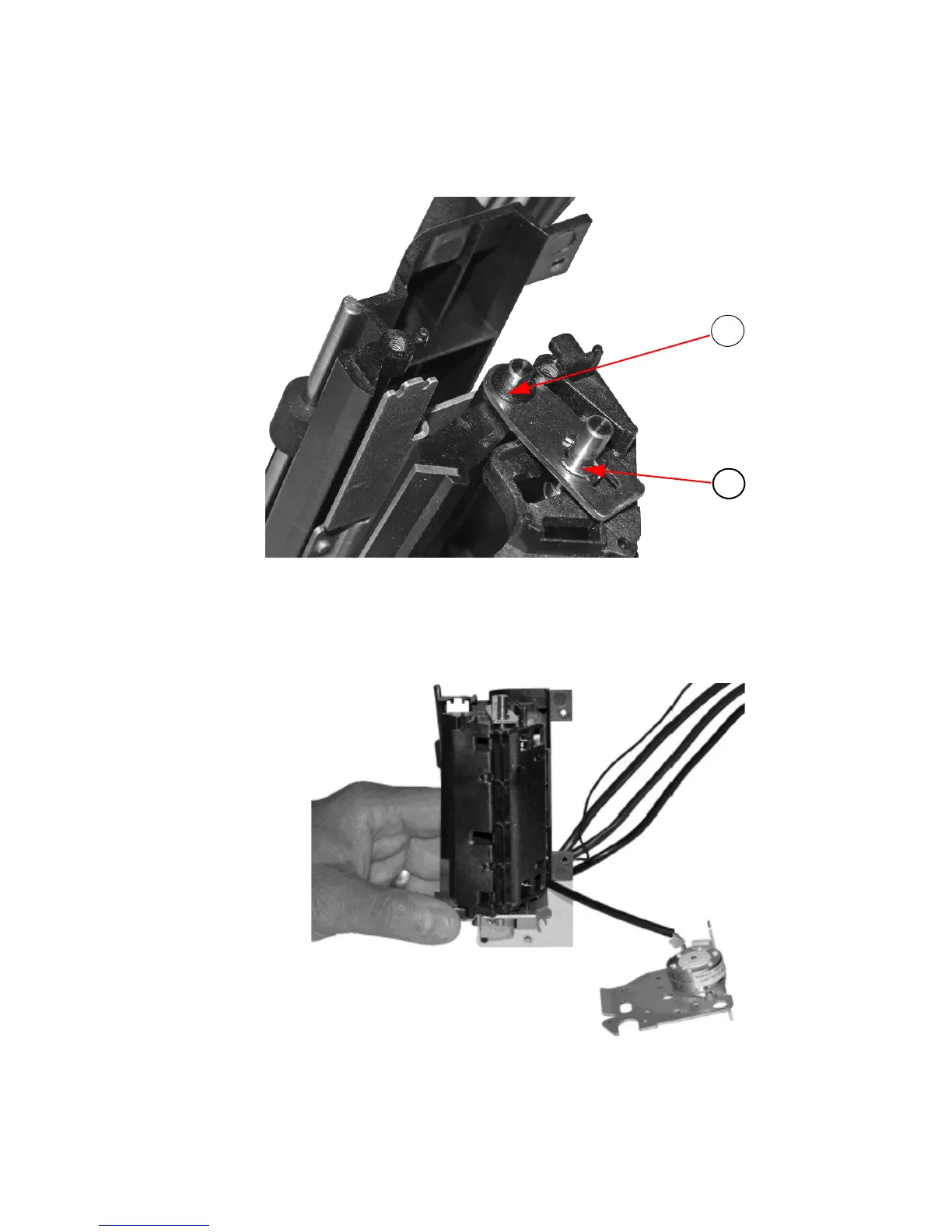

Figure 7-29. Remove Latch Arm Hub and Retaining Ring
Position remaining assembly in a vertical orientation for
remaining
disassembly.
Figure 7-30. Position Remaining Assembly Vertically
15
16
