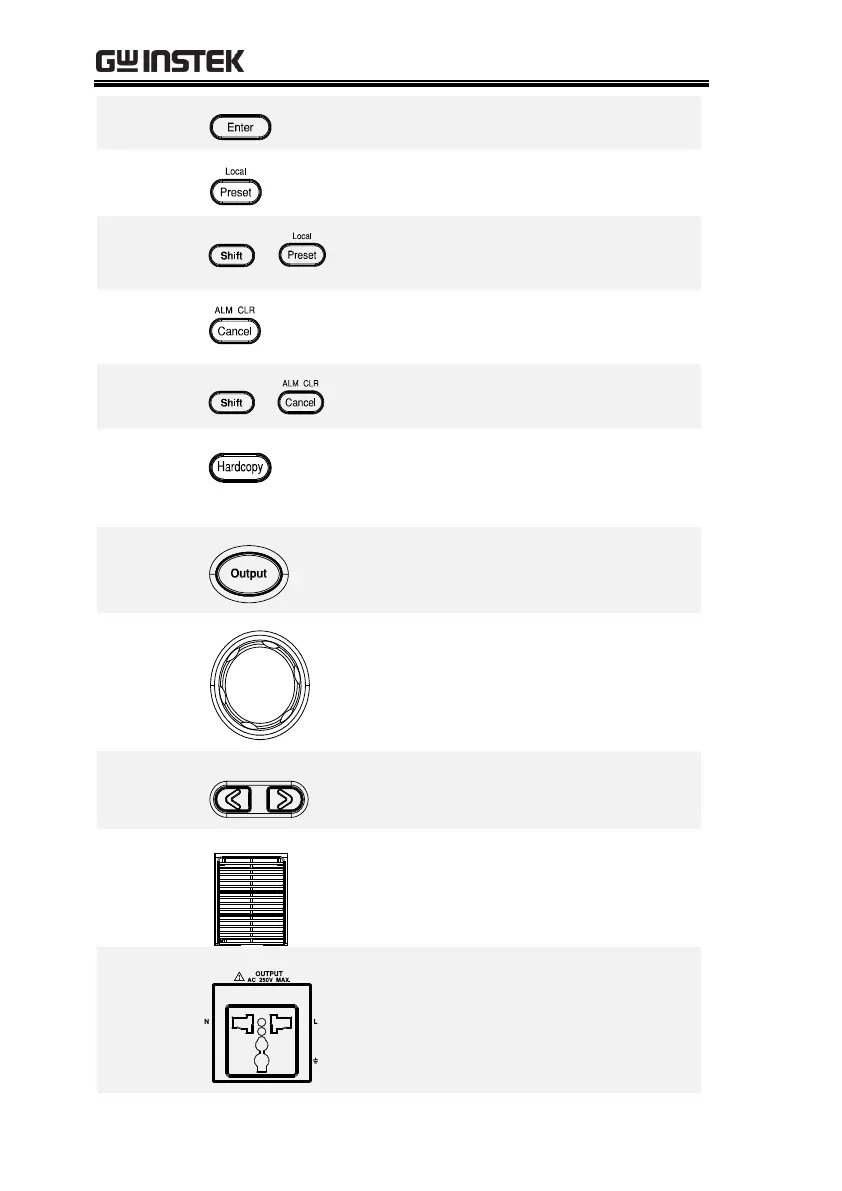

GW Instek ASR-2000 Series Programming Manual

ASR-2000 Programming Manual
16
Enter Key
Confirms selections and settings
Preset Key
Puts the instrument into Preset mode
Local Mode
+
Switches operation back to local mode
from remote mode
Cancel Key
Used to cancel function setting menus or
dialogs.
ALM CLR
+
Clears alarms
Hardcopy
Key
Used to take a screenshot by simply one
press on the key. Make sure an USB flash
disk in well inserted before the action.
Output Key
Turns the output on or off.
Scroll
Wheel
Used to navigate menu items or for
increment/decrement values one step at
a time.
Arrow Keys
The arrow keys are used to select the digit
power of a value that is being edited
Air Inlet
Air inlet for cooling the inside of the ASR-
2000 series
Output
Socket
Output voltage socket, which has 2
versions in accordance with different
regions: Universal and European types, in
front panel. (only available for ASR-
2100/2050)
