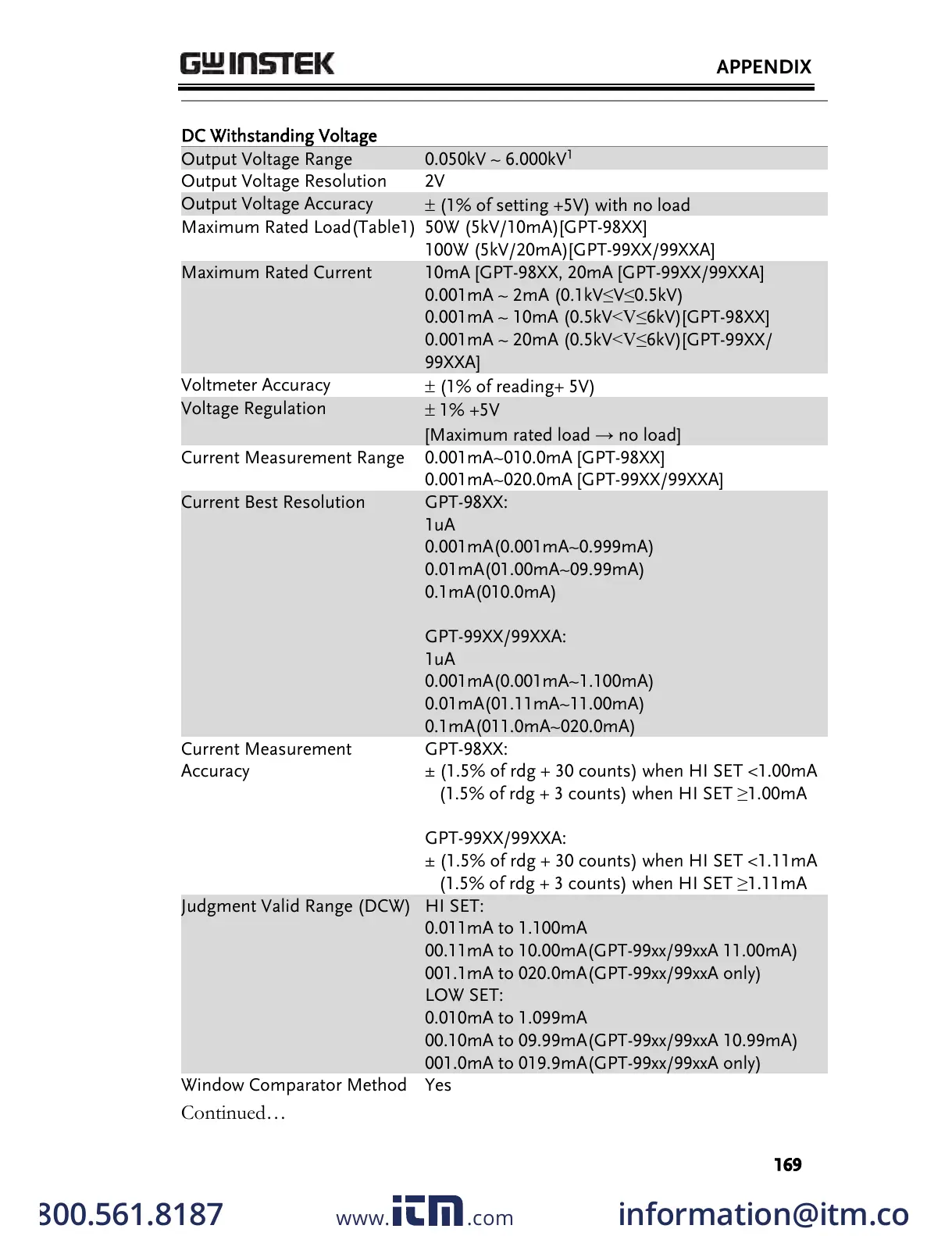

GW Instek GPT-9000 series User Manual

APPENDIX
169
DC Withstanding Voltage
Output Voltage Range
0.050kV ~ 6.000kV
1
Output Voltage Resolution
2V
Output Voltage Accuracy
 (1% of setting +5V) with no load
Maximum Rated Load(Table1)
50W (5kV/10mA)[GPT-98XX]
100W (5kV/20mA)[GPT-99XX/99XXA]
Maximum Rated Current
10mA [GPT-98XX, 20mA [GPT-99XX/99XXA]
0.001mA ~ 2mA (0.1kV≤V≤0.5kV)
0.001mA ~ 10mA (0.5kV<V≤6kV)[GPT-98XX]
0.001mA ~ 20mA (0.5kV<V≤6kV)[GPT-99XX/
99XXA]
Voltmeter Accuracy
 (1% of reading+ 5V)
Voltage Regulation
 1% +5V
[Maximum rated load → no load]
Current Measurement Range
0.001mA~010.0mA [GPT-98XX]
0.001mA~020.0mA [GPT-99XX/99XXA]
Current Best Resolution
GPT-98XX:
1uA
0.001mA(0.001mA~0.999mA)
0.01mA(01.00mA~09.99mA)
0.1mA(010.0mA)
GPT-99XX/99XXA:
1uA
0.001mA(0.001mA~1.100mA)
0.01mA(01.11mA~11.00mA)
0.1mA(011.0mA~020.0mA)
Current Measurement
Accuracy
GPT-98XX:
± (1.5% of rdg + 30 counts) when HI SET <1.00mA
(1.5% of rdg + 3 counts) when HI SET ≥1.00mA
GPT-99XX/99XXA:
± (1.5% of rdg + 30 counts) when HI SET <1.11mA
(1.5% of rdg + 3 counts) when HI SET ≥1.11mA
Judgment Valid Range (DCW)
HI SET:
0.011mA to 1.100mA
00.11mA to 10.00mA(GPT-99xx/99xxA 11.00mA)
001.1mA to 020.0mA(GPT-99xx/99xxA only)
LOW SET:
0.010mA to 1.099mA
00.10mA to 09.99mA(GPT-99xx/99xxA 10.99mA)
001.0mA to 019.9mA(GPT-99xx/99xxA only)
Window Comparator Method
Yes
Continued…
