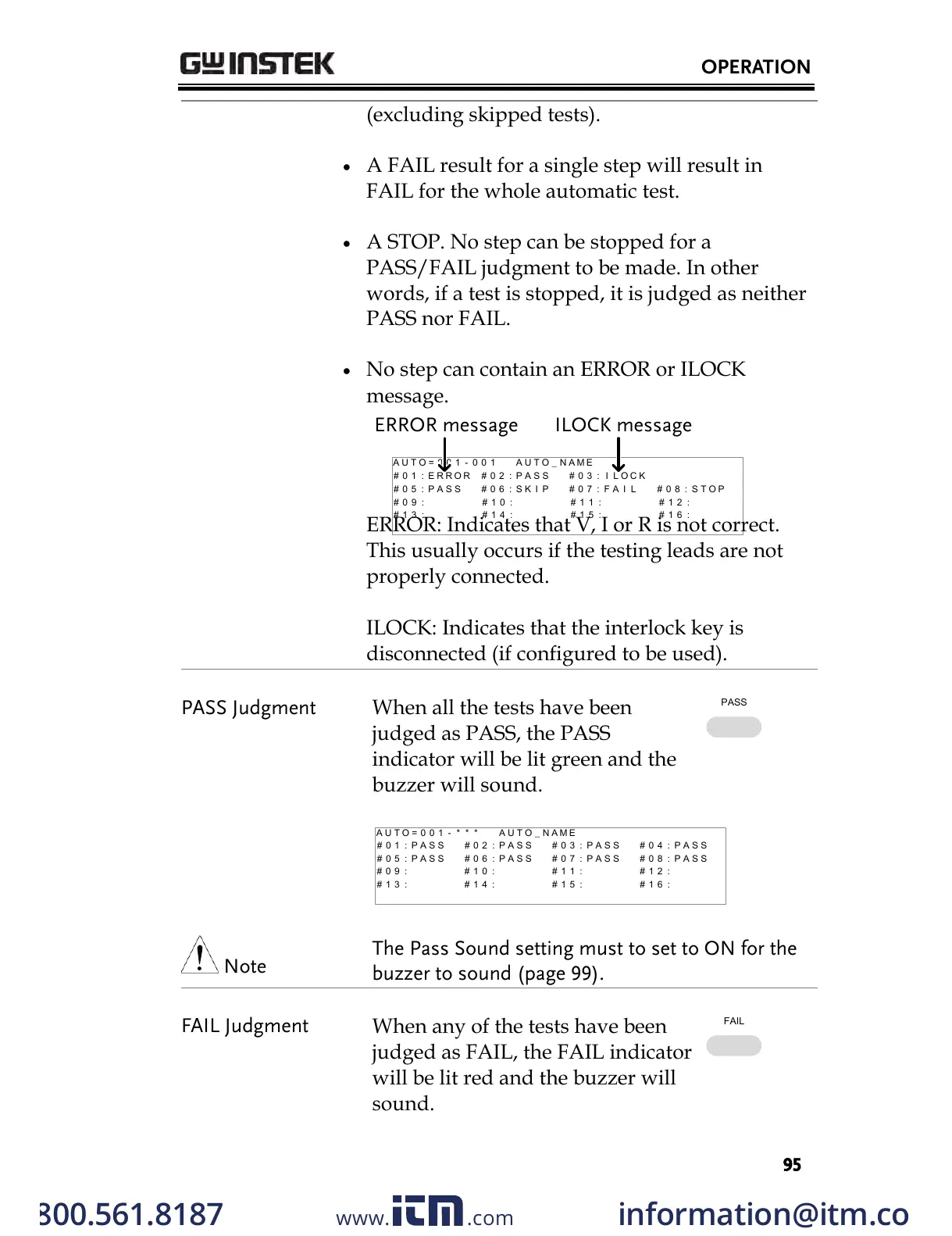

GW Instek GPT-9000 series User Manual

OPERATION
95
(excluding skipped tests).
 A FAIL result for a single step will result in
FAIL for the whole automatic test.
 A STOP. No step can be stopped for a
PASS/FAIL judgment to be made. In other
words, if a test is stopped, it is judged as neither
PASS nor FAIL.
 No step can contain an ERROR or ILOCK
message.
E R R
P A S
O
S
P A S
S K I
S
P
E MA U OT N A_ 1A U T O = 0 0 1 - 0 0
# 0 1 : # 0 2 : # 0 3 :
# 0 5 : # 0 6 : # 0 7 : # 0 8 : S T O
# 0 9 : # 1 0 : # 1 1 : # 1 2 :
# 1 3 : # 1 4 : # 1 5 : # 1 6 :
P
I L O
F A I
C
L
ILOCK message
ERROR message
R K
ERROR: Indicates that V, I or R is not correct.
This usually occurs if the testing leads are not
properly connected.
ILOCK: Indicates that the interlock key is
disconnected (if configured to be used).
PASS Judgment
When all the tests have been
judged as PASS, the PASS
indicator will be lit green and the
buzzer will sound.
PASS
P A S
P A S
S
S
P A S
P A S
S
S
E MA U OT N A_ *A U T O = 0 0 1 - * *
# 0 1 : # 0 2 : # 0 3 : # 0 4 : P A S
# 0 5 : # 0 6 : # 0 7 : # 0 8 : P A S
# 0 9 : # 1 0 : # 1 1 : # 1 2 :
# 1 3 : # 1 4 : # 1 5 : # 1 6 :
S
S
P A S
P A S
S
S
Note
The Pass Sound setting must to set to ON for the
buzzer to sound (page 99).
FAIL Judgment
When any of the tests have been
judged as FAIL, the FAIL indicator
will be lit red and the buzzer will
sound.
FAIL
