GW Instek PEL-3021 - Pel-3111 H; PEL-3211(H) Booster Pack

PEL-3000(H) User Manual
16
PEL-3111H
P0
P1
P4
P7
CAL.
P2
P5
P8
Lock
P3
P6
P9
Utility
Local
File
0
1
4
7
2
5
8
3
6
9
EnterClear
Shift
Preset
Load
On/
Off
Main
Help
FUNC
Short
TRIG OUT
I
MON OUT
5 - 800V
1050W
0 – 52.5A
V
MON OUT
A/B

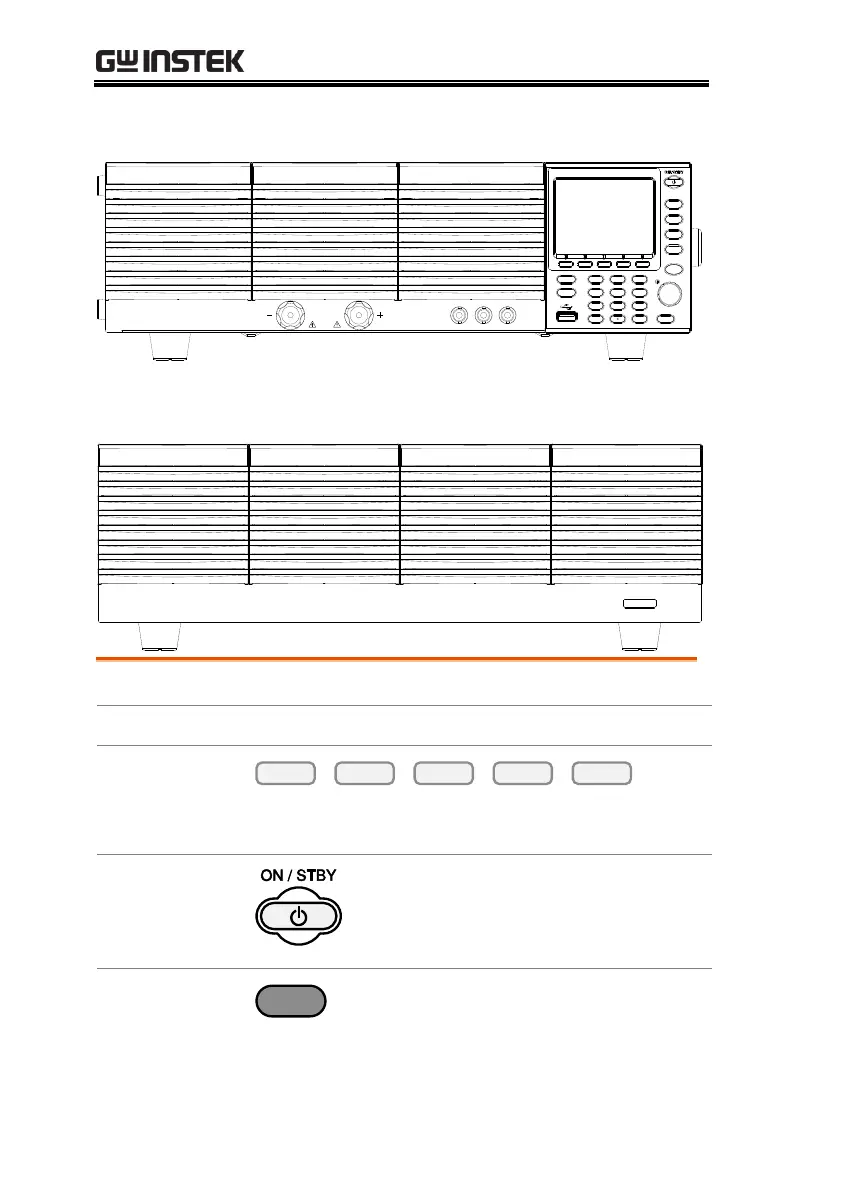

PEL-3211(H) Booster Pack
LINK STBY
Air Inlet
The air inlet has a removable dust filter
LCD display
3.5 inch LCD display
Function keys
The function keys directly correspond to the soft
menu keys at the bottom of the display.
ON/STBY
Turns the unit on or puts the unit
into standby mode. Use the power
switch on the rear panel to turn
the unit off.
Main/Local
Main
Main: Sets the operating mode:
CC, CV, CR, CP mode.
