PEL-3000(H) User Manual
36
Using the Terminal Cover (PEL-011)
The rear panel terminal cover should be used to
prevent electric shock. The rear panel terminal
covers should always be used when connecting a
load to the rear panel terminals. As the front panel
and rear panel terminals are physically connected,
the terminal cover should also be used as a safety
measure when a DUT is connected to the front
terminals
Ensure the power is off before making any
connections to the PEL-3000(H).
In the following diagrams, the cable wiring is not
shown for clarity.

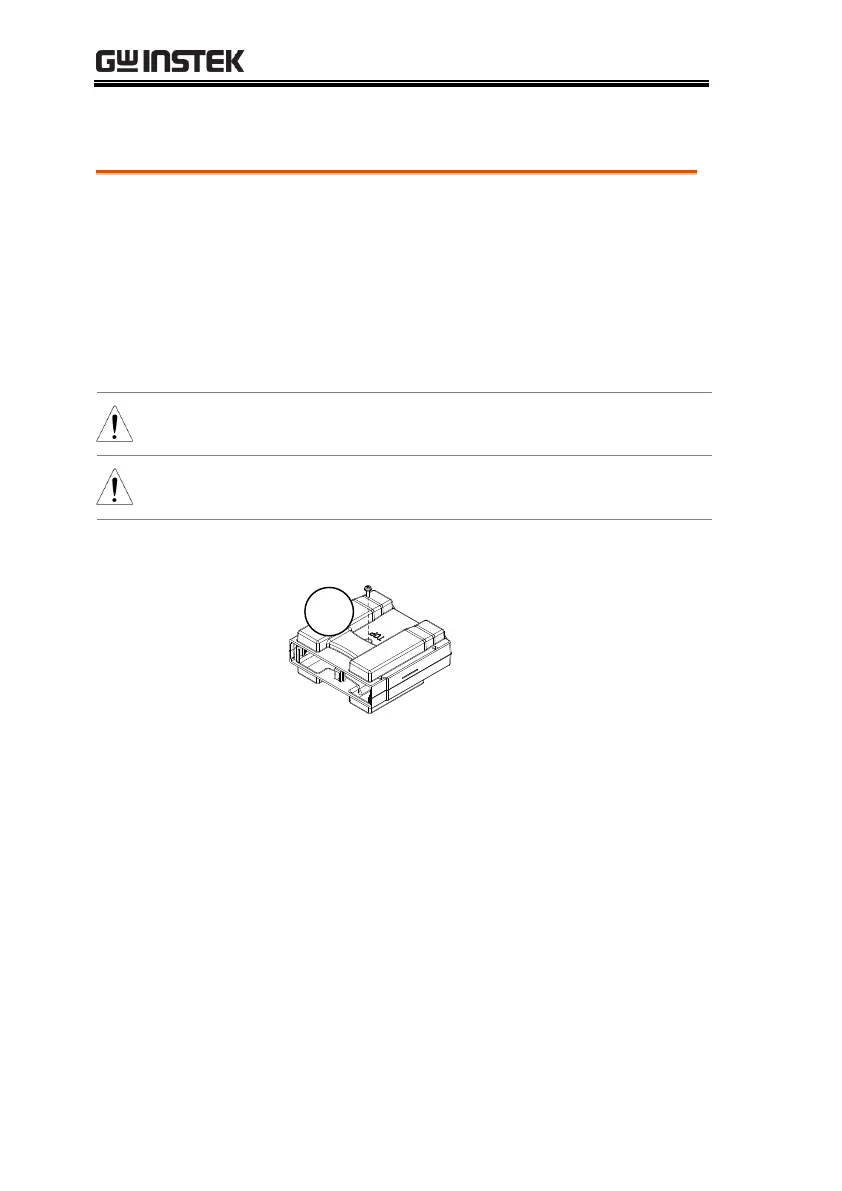

1. Remove the screw holding the top cover to the
bottom cover.
2. Line-up the bottom cover with the notches in
the output terminals.
3. Place the top terminal cover over the bottom
cover.
