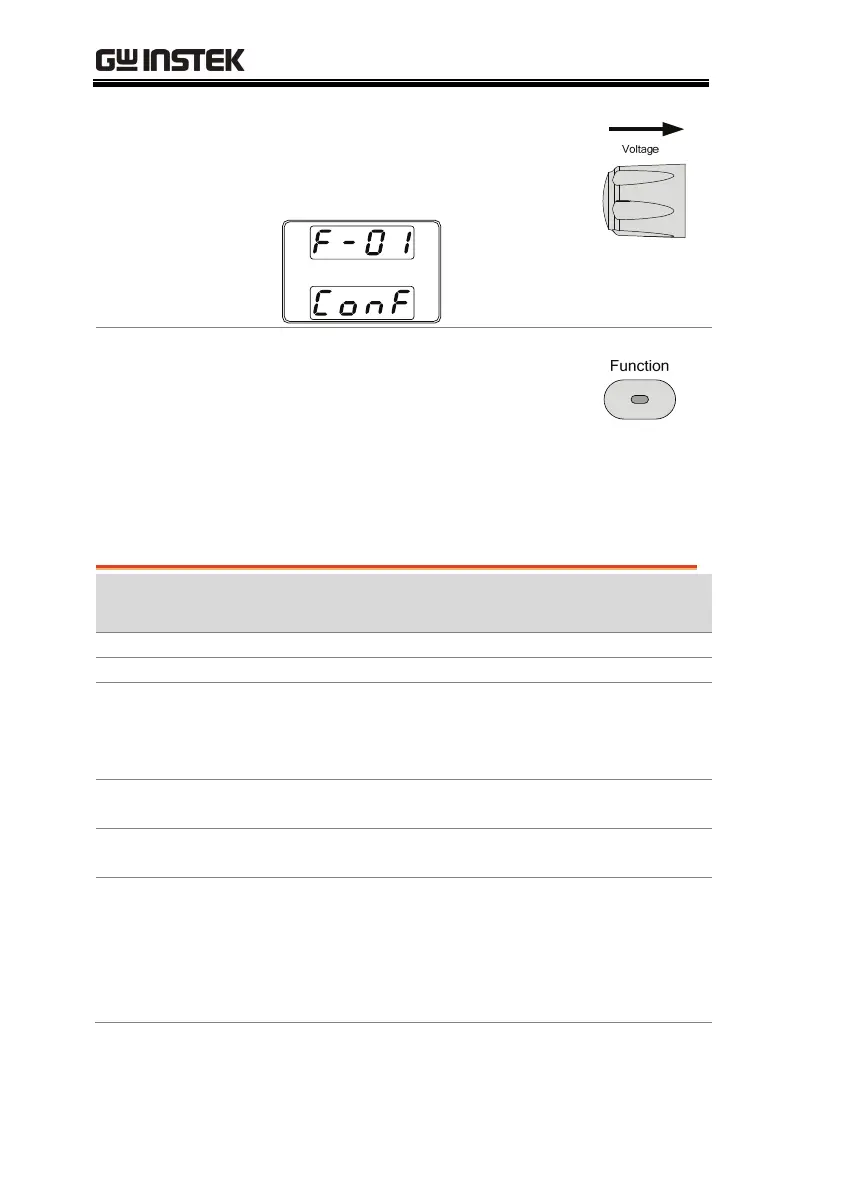

GW Instek PSW Series Programming Manual

PSW Series User Manual
18
5. Press the Voltage knob to save the
configuration setting. Conf will be
displayed when successful.
Exit
Press the Function key again to exit
the configuration settings. The
function key light will turn off.
Configuration Table
Please use the configuration settings listed below when applying
the configuration settings.
Normal Function
Settings Setting Setting Range
Output ON delay time F-01 0.00s~99.99s
Output OFF delay time F-02 0.00s~99.99s
V-I mode slew rate select F-03
0 = CV high speed priority
1 = CC high speed priority
2 = CV slew rate priority
3 = CC slew rate priority
Rising voltage slew rate F-04
0.01V/s~60.00V/s (PSW 30-XX)
0.1V/s~160.0V/s (PSW 80-XX)
Falling voltage slew rate F-05
0.01V/s~60.00V/s (PSW 30-XX)
0.1V/s~160.0V/s (PSW 80-XX)
Rising current slew rate F-06
0.01A/s~72.00A/s (PSW 30-36)
0.1A/s~144.0A/s (PSW 30-72)
0.1A/s~216.0A/s (PSW 30-108)
0.01A/s~27.00A/s (PSW 80-13.5)
0.01A/s~54.00A/s (PSW 80-27)
0.01A/s~81.00A/s (PSW 80-40.5)

GW Instek PSW Series Specifications

General

Ripple & Noise (CC)	≤ 3mArms
Protections	OVP, OCP, OTP
Remote Sense	Yes
Programmable	Yes
Operating Temperature	0°C to 40°C
Storage Temperature	-20°C to 70°C
Voltage Resolution	1mV
Current Resolution	1mA
Current Accuracy	±0.1% + 10mA
Ripple & Noise (CV)	≤1mVrms
Load Regulation (CC)	≤0.1% + 5mA
Line Regulation (CC)	≤0.1% + 5mA
Remote Interface	USB, RS232
Display	LCD
