GW Instek PSW Series Programming Manual

PSW Series User Manual
22
Interface Configuration
USB Remote Interface .......................................................... 22
Configure GPIB Interface .................................................... 23
Configure the Ethernet Interface ........................................ 24
USB Remote Control Function Check ............................... 25
W
eb Server Remote Control Function Check ................... 25

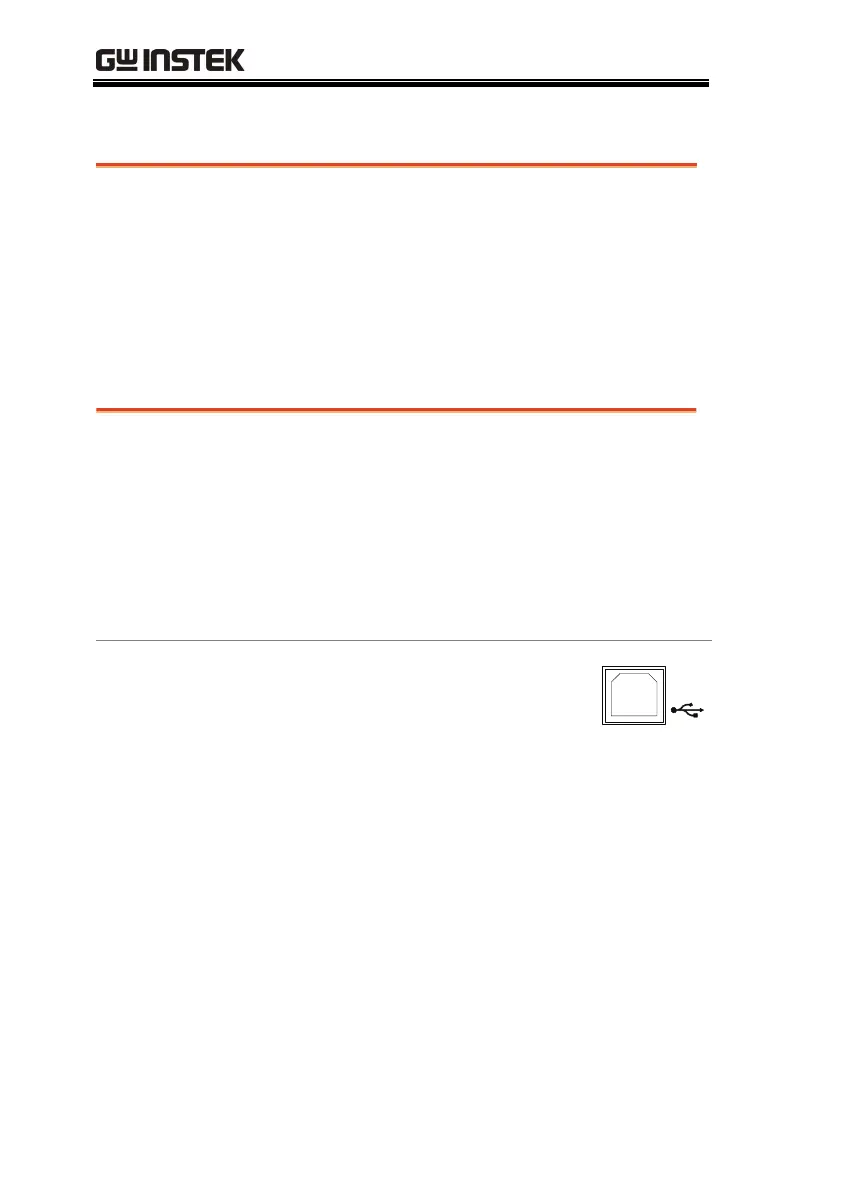

USB Remote Interface
USB
configuration
PC side
connector
Type A, host
PSW side
connector
Rear panel Type B, slave
Speed
1.1/2.0 (full speed/high speed)
USB Class
CDC (communications device
class)
Panel operation
1. Connect the USB cable to the rear
panel USB B port.
2. Press the Function key to enter the
Normal configuration settings.
Page 17
Set the following USB settings:
F-22 = 2
Set the rear panel USB port to
USB-CDC.

GW Instek PSW Series Specifications

General

Ripple & Noise (CC)	≤ 3mArms
Protections	OVP, OCP, OTP
Remote Sense	Yes
Programmable	Yes
Operating Temperature	0°C to 40°C
Storage Temperature	-20°C to 70°C
Voltage Resolution	1mV
Current Resolution	1mA
Current Accuracy	±0.1% + 10mA
Ripple & Noise (CV)	≤1mVrms
Load Regulation (CC)	≤0.1% + 5mA
Line Regulation (CC)	≤0.1% + 5mA
Remote Interface	USB, RS232
Display	LCD
