GW Instek PSW Series Programming Manual

REMOTE CONTROL
23
Configure GPIB Interface
To use GPIB, the optional GPIB to USB (GUG-001) adapter must be
used. The GPIB to USB adapter must be connected before the PSW
is turned on. Only one GPIB address can be used at a time.
Configure GPIB
1. Ensure the PSW is off before proceeding.
2. Connect the USB cable from the rear panel
USB B port on the PSW to the USB A port on
the GPIB to USB adapter.
3. Connect a GPIB cable from a GPIB controller to
the GPIB port on the adapter.

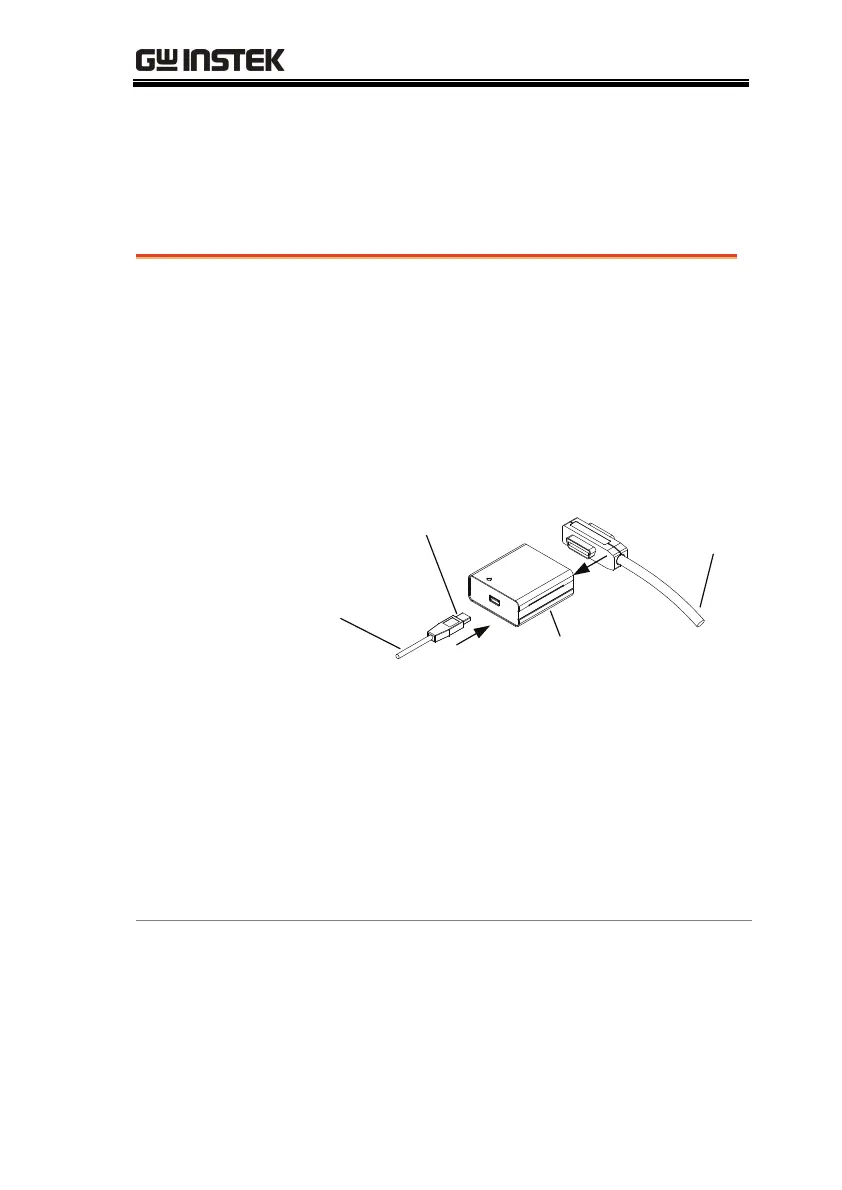

Type B plug for
PSW series
Type A plug
From
computer
GUG-001
4. Turn the PSW on.
5. Press the Function key to enter the
Normal configuration settings.
Page 17
Set the following GPIB settings:
F-22 = 1
Set the rear panel USB port to
GPIB-USB (GUG-001)
F-23 = 0~30 Set the GPIB address (0~30)
GPIB constraints
 Maximum 15 devices altogether, 20m cable
length, 2m between each device
 Unique address assigned to each device
 At least 2/3 of the devices turned On
 No loop or parallel connection

GW Instek PSW Series Specifications

General

Ripple & Noise (CC)	≤ 3mArms
Protections	OVP, OCP, OTP
Remote Sense	Yes
Programmable	Yes
Operating Temperature	0°C to 40°C
Storage Temperature	-20°C to 70°C
Voltage Resolution	1mV
Current Resolution	1mA
Current Accuracy	±0.1% + 10mA
Ripple & Noise (CV)	≤1mVrms
Load Regulation (CC)	≤0.1% + 5mA
Line Regulation (CC)	≤0.1% + 5mA
Remote Interface	USB, RS232
Display	LCD
