1-5

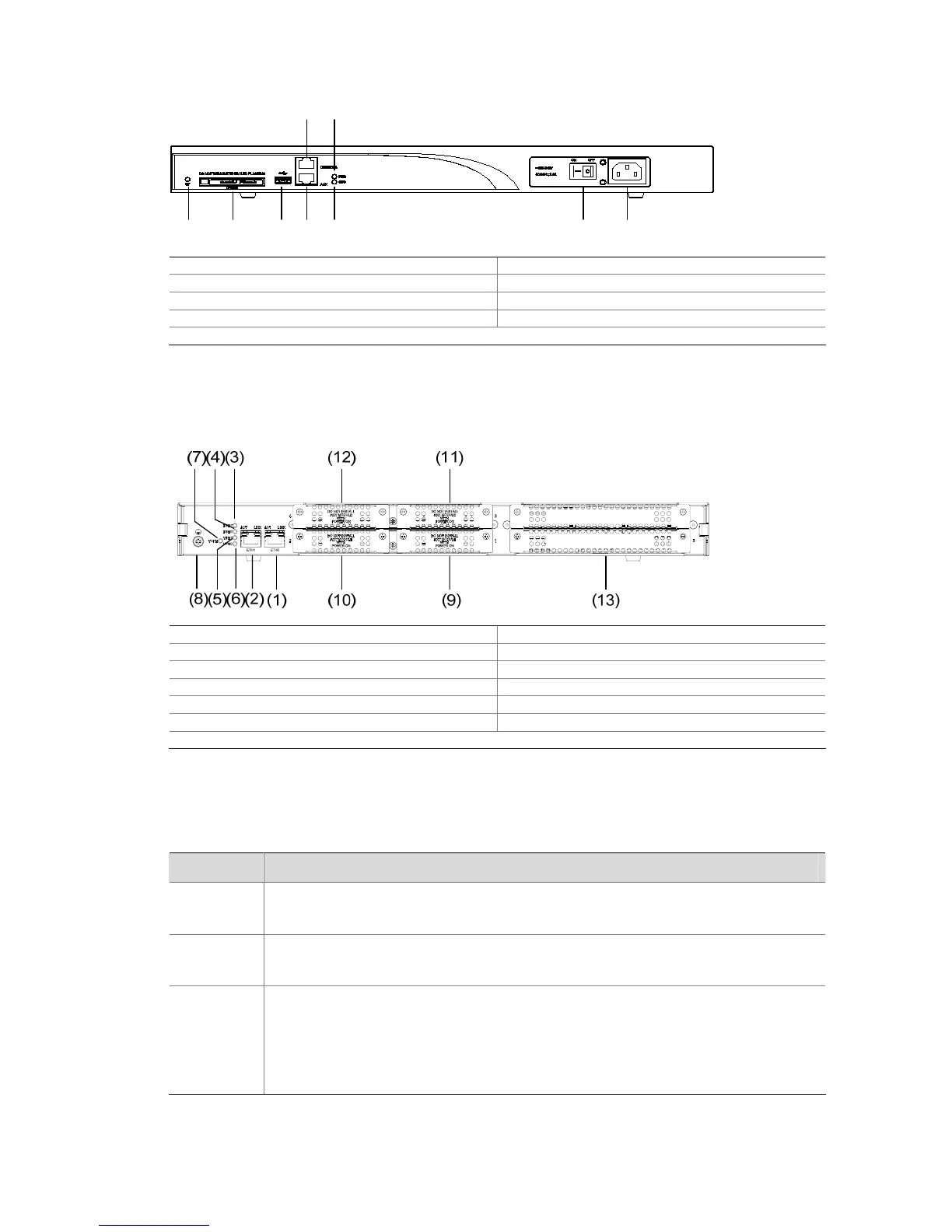

Figure 1-3 Front view of MSR 30-16
(1)
(2)
(3)
(4)(5)(6)(7) (8)(9)
(1) Power LED (POWER) (2) System LED (SYSTEM)
(3) Console port (CONSOLE) (4) Auxiliary port (AUX)
(5) USB interface (6) CF card
(7) CF card LED (8) Power socket
(9) Power switch
2) Rear view
Figure 1-4 Rear view of MSR 30-16
(1) FE interface 0 (2) FE interface 1
(3) ESM1 LED (4) ESM0 LED
(5) VPM1 LED (6) VPM0 LED
(7) VCPM LED (8) Grounding terminal
(9) SIC slot 1 (10) SIC slot 2
(11) SIC slot 3 (12) SIC slot 4
(13) MIM slot 5
Panel LEDs
Table 1-7 Front panel LEDs description of MSR 30-16 router
LED Description
PWR
ON means: the system provides power for cards normally.
OFF means the system does not supply power for cards.
SYS
Blinking means the system is operating normally.
Steady ON or steady OFF means the system does not operate normally.
USB0
OFF means the USB interface has not been connected to a host.
Steady green means the USB interface is connected to a host and the host can be
removed.
Blinking green means data is being transferred to/from the host and the host cannot
be removed now.
