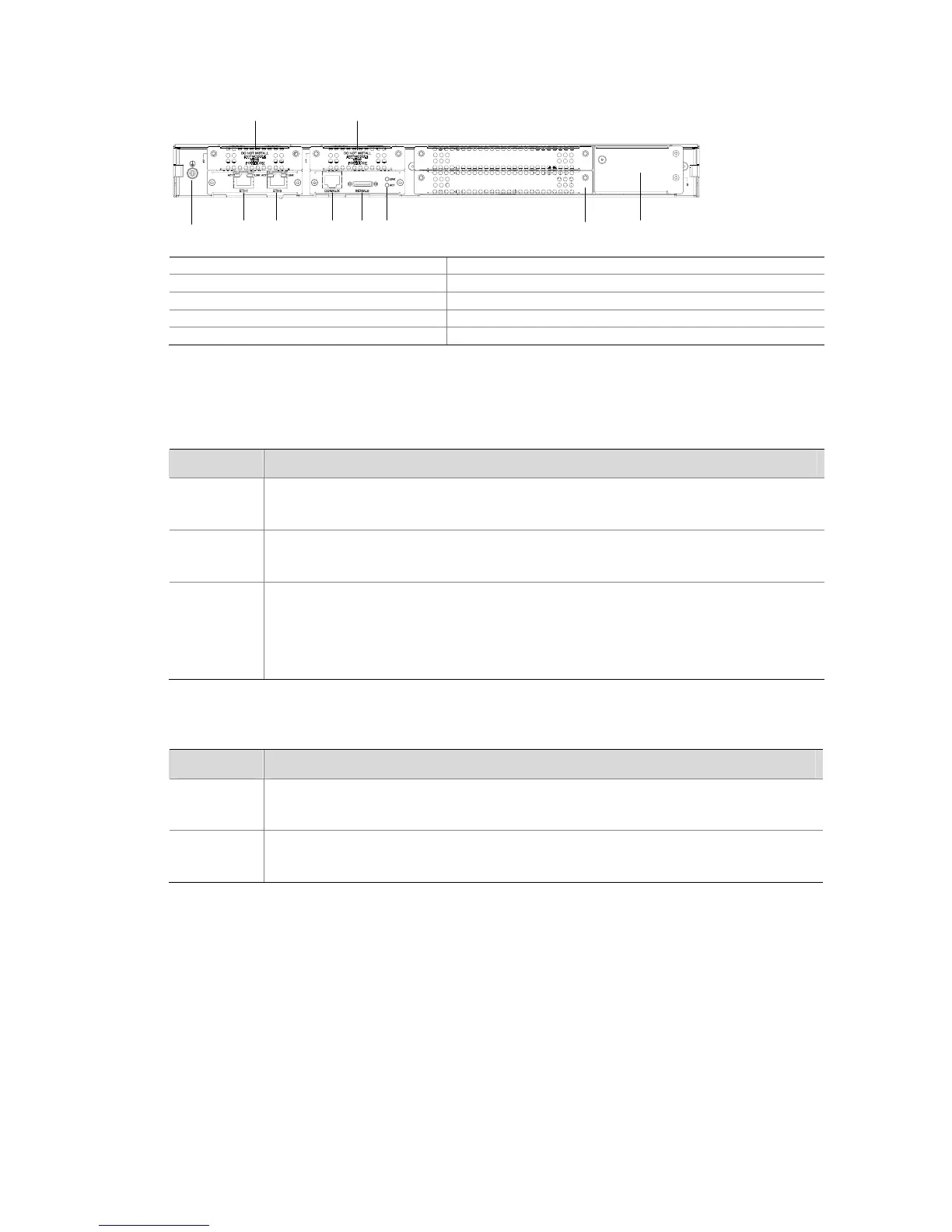

Figure 1-2 Rear panel of the MSR 30-11
(2) (3)(1) (4) (5) (6) (8)(7)
(9)(10)
(1) Grounding terminal (2) FE interface 1
(3) FE interface 0 (4) Console/AUX interface
(5) Serial interface (6) Serial interface status LEDs
(7) MIM/XMIM slot (8) Removable slide rails
(9) SIC slot 1 (10) SIC slot 2
Panel LEDs
Table 1-5 LEDs on the front panel of the MSR 30-11
LED Description
PWR
ON: The power supply of the system works normally.
OFF: The power supply of the system is disconnected.
SYS
Blinking: The system runs normally.
ON or OFF: The system runs abnormally.
ESM
OFF: No ESM is in position.
Solid green: An ESM is in position and works normally.
Blinking green: The ESM is processing data.
Solid yellow: An ESM is in position but is faulty.
Table 1-6 LEDs on the rear panel of the MSR 30-11
LED Description
LINK
OFF: No link is present.
ON: A link is present.
ACT
OFF: No data is being received or sent.
Blinking: Data is being received or sent.
