H3C MSR 30-20 ROUTER User Manual

6-3
z The installation procedure is just opposite to the removal procedure.
z You can open/close the chassis cover of an MSR 30-16 in the way you do for an MSR 30-20.
z On a mounting screw of your router chassis, there is an anti-dismantle seal of our company. You
must keep it in good condition when asking your sales agent for servicing. You can open the
chassis yourself but with permission of your sales agent and must operate following the related
rules. The company is not liable for any damage or consequence resulted from users' operation
without permission.
z Do not replace the hardware unless necessary and under the guidance of technical staff.
z Ensure that no electricity is present before servicing the device to avoid bodily injuries.
z Wear an ESD-preventive wrist strap when servicing the device, making sure it has good
skin-contact.
z Use the memory modules provided by our company. only. Otherwise, anomalies might occur to the
device.
Internal Structure of the Router

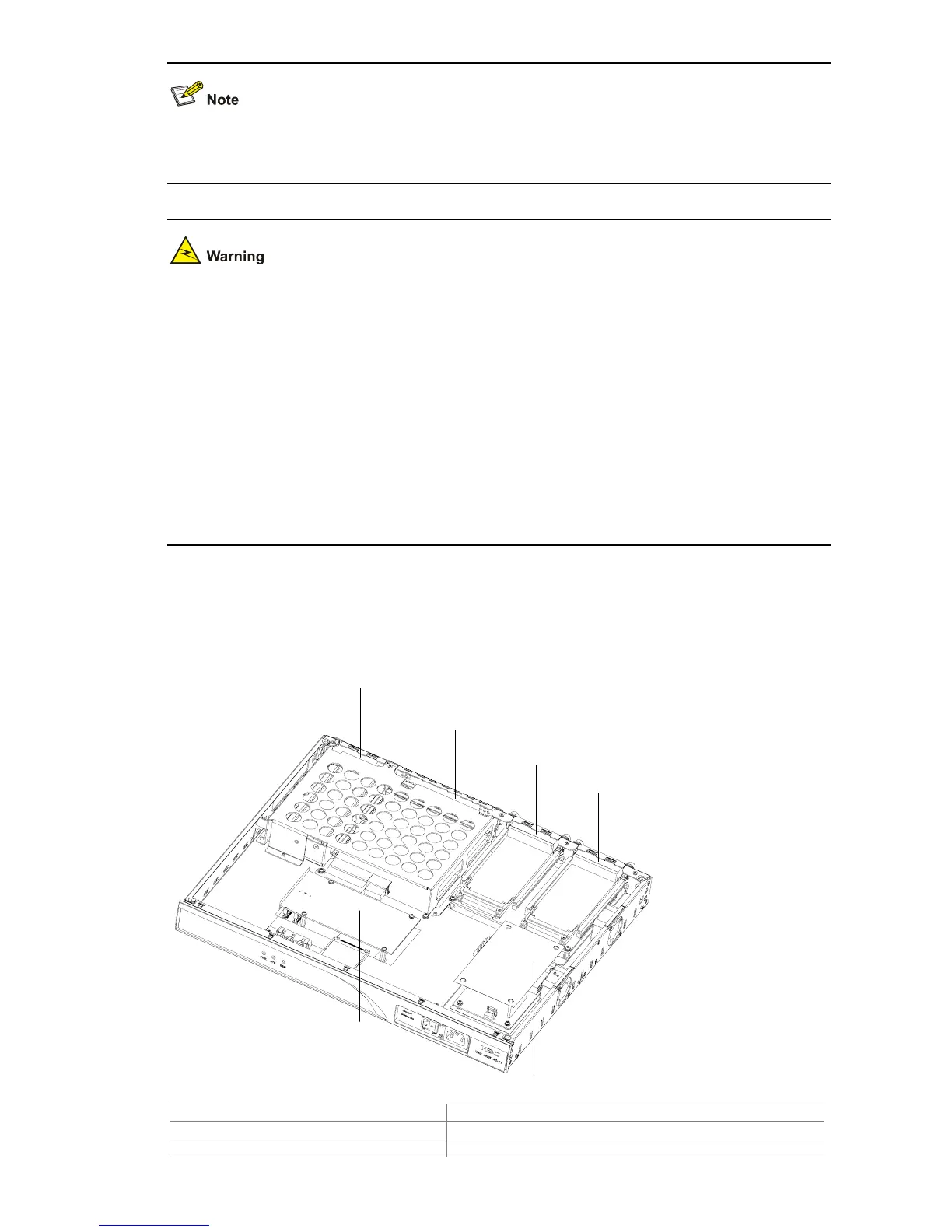

Figure 6-6 MSR 30-11 internal structure
(1)
(2)
(3)
(4)
(6)
(5)
(1) Slide rails (2) MIM/XMIM slot
(3) SIC slot 1 (4) SIC slot 2
(5) ESM slot (6) Power module
