H3C MSR 30-20 ROUTER User Manual

5-10

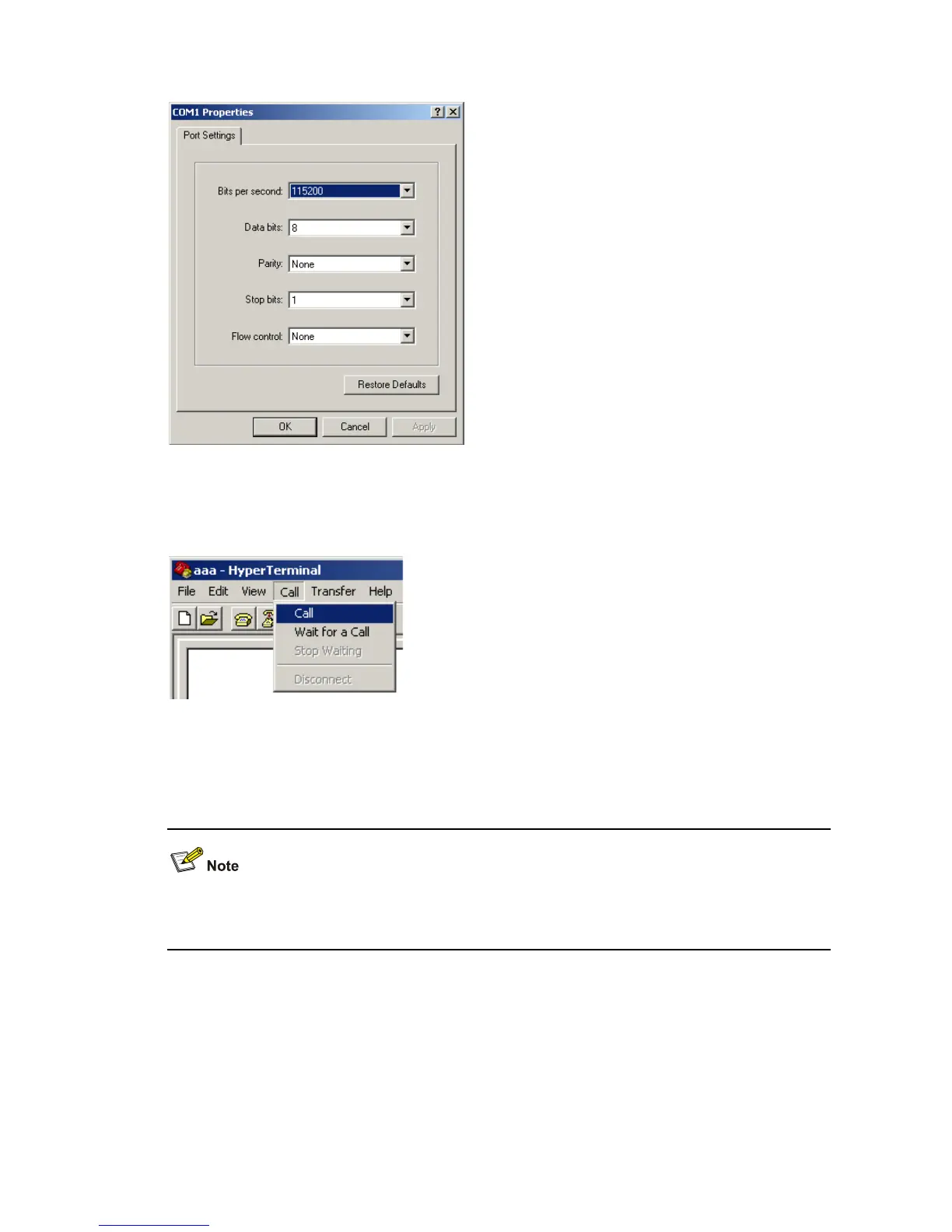

Figure 5-3 Change baud rate
Click [Call/Call] to establish new connection.
Figure 5-4 Establish new connection
Then, press <Enter> to prompt current configuration baud rate and return to the previous menu.
The system prompts:
The current baudrate is 115200
Restore the baud rate of the HyperTerminal to 9600 bps (the default) after upgrading the BootROM.
This is to ensure that information can be displayed on the console screen after system boot or reboot.
Upgrading BootROM
First, enter <7> in the main BootROM menu (refer to section “Main BootROM Menu”) to enter the
BootROM operation submenu, under which all BootROM operations are completed. Refer to section
“
BootROM operation submenu” for detailed descriptions.
For example, when you upgrade full BootROM:

H3C MSR 30-20 ROUTER Specifications

General

Brand	H3C
Model	MSR 30-20 ROUTER
Category	Network Router
Language	English
