1-6
LED Description
CF
CF card LED:
Steady green means the CF card is in place and can be identified by the router.
Blinking green means the CF card is being accessed and must not be removed.
Steady yellow means the CF card is in place but cannot be identified by the router.
OFF means no CF card is inserted or the CF card cannot be identified.
Table 1-8 Rear panel LEDs of MSR 30-16 Router
LED Description
LINK
OFF means no link is present.
ON means a link connection is established.
ACT
OFF means no data is being received or sent.
ON means data is being received or sent.
ESM0 to 1
OFF means no ESM is in the ESM slot.
Solid green means an ESM is in the ESM slot and operates normally.
Blinking green means the ESM is processing data.
Solid yellow means an ESM is in the ESM slot but does not operate normally.
VCPM
OFF means VCPM is not in the slot.
Steady green means a VCPM is in the slot and operates normally.
Steady yellow means a VCPM is in the slot but does not operate normally.
VPM0 to 1
OFF means no VPM is in the VPMx slot.
Steady green means a VPM is in the VPMx slot and operates normally.
Steady yellow means a VPM is in the VPMx slot but does not operate normally.
MSR 30-20 Router
Appearance
1) Front view

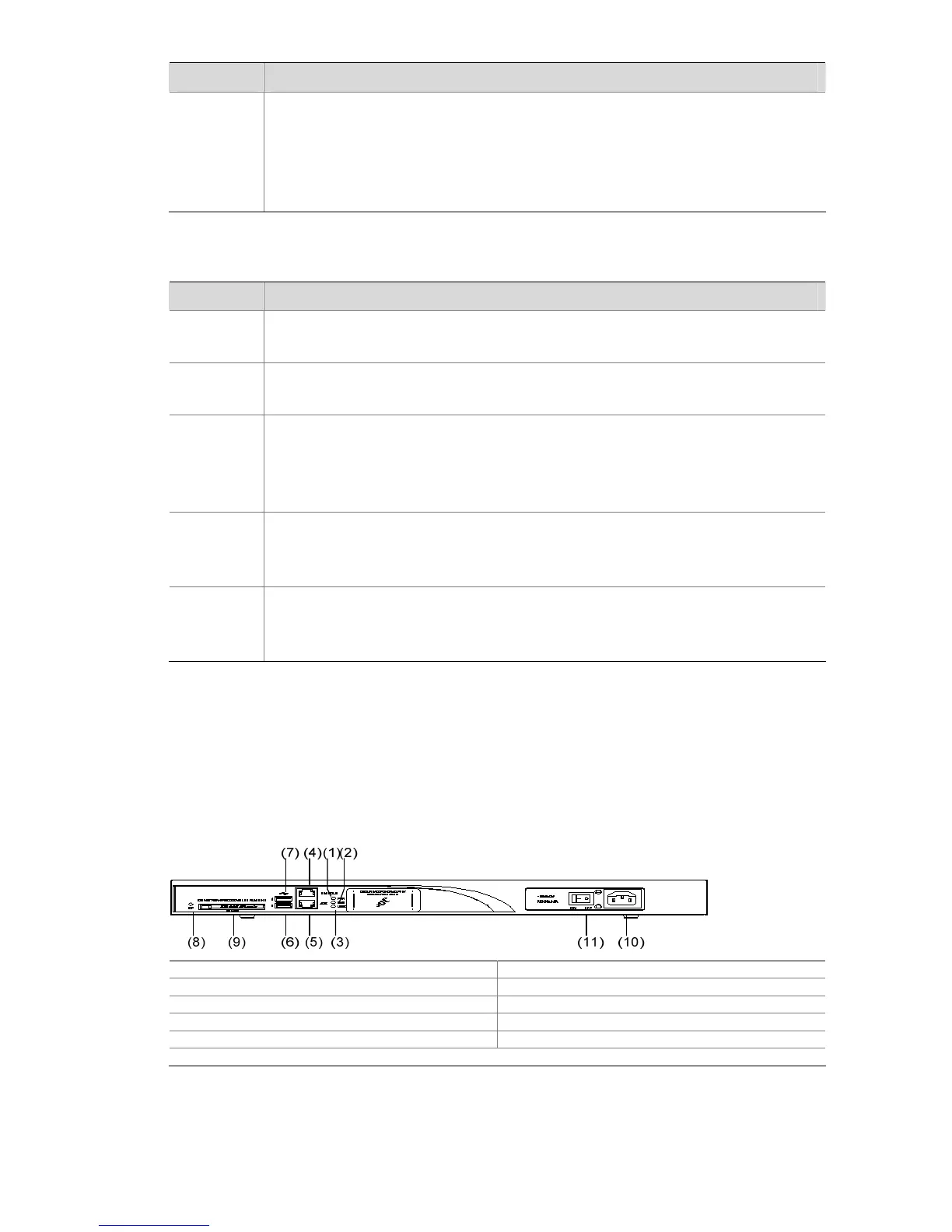

Figure 1-5 Front view of MSR 30-20
(1) Power LED (PWR) (2) System LED (SYS)
(3) USB LED (4) Console port (CONSOLE)
(5) Auxiliary port (AUX) (6) USB interface 0
(7) USB interface 1 (8) CF card LED
(9) CF card (10) Power socket
(11) Power switch
