1-8
LED Description
ESM0 to 1
OFF means no ESM is in the ESM slot.
Steady green means an ESM is in the ESM slot and operates normally.
Blinking green means the ESM is processing data.
Steady yellow means an ESM is in the ESM slot but does not operate normally.
VCPM
OFF means no VCPM is in the slot.
Steady green means a VCPM is in the slot and operates normally.
Steady yellow means a VCPM is in the slot but does not operate normally.
VPM0 to 1
OFF means no VPM is in the VPMx slot.
Steady green means a VPM is in the VPM slot and operates normally.
Steady yellow means a VPM is in the VPM slot but does not operate normally.
MSR 30-40 Router
Appearance
1) Front view

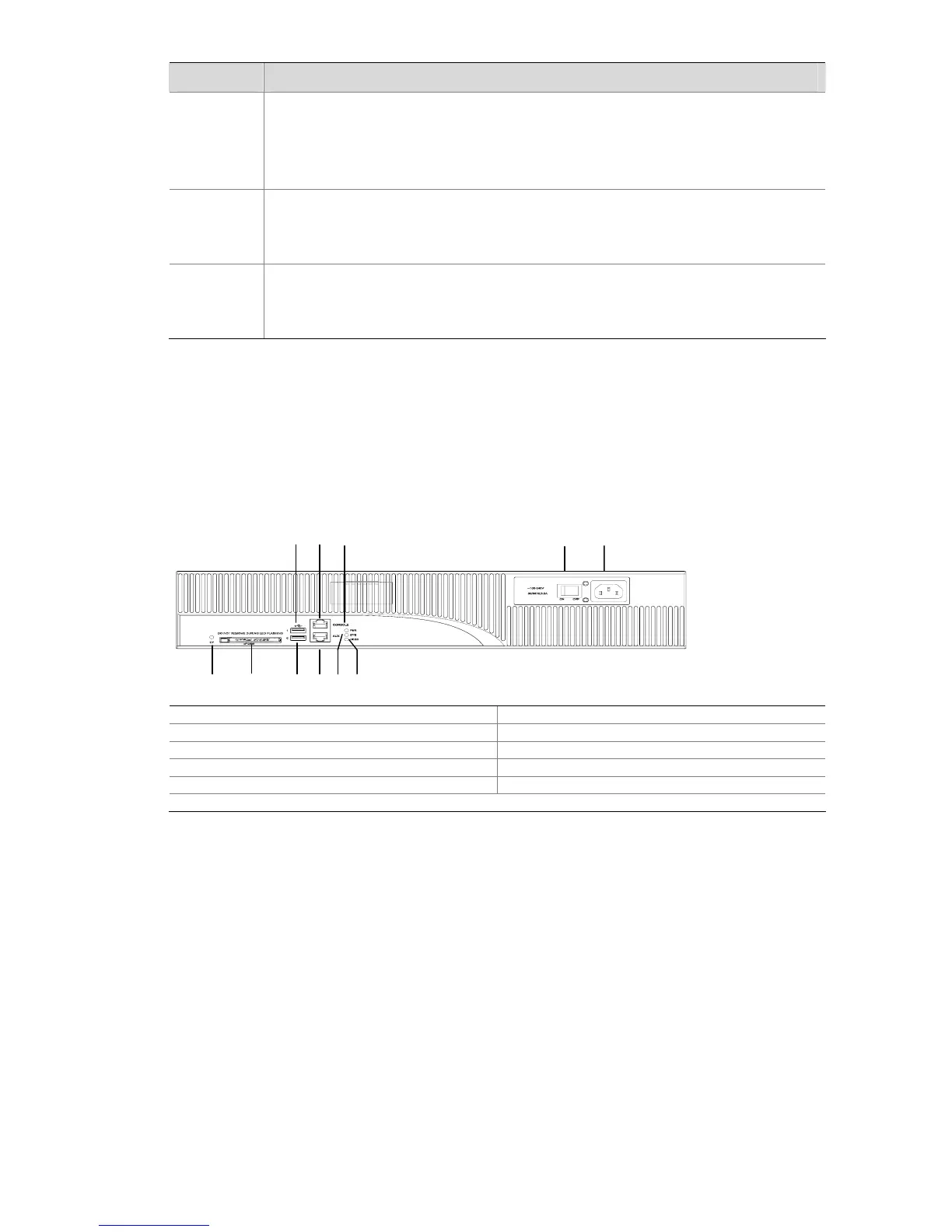

Figure 1-7 Front view of MSR 30-40
(2) (3)
(10)
(8)
(9)
(6) (5)
(7) (4) (1)
(11)
(1) Power LED (PWR) (2) System LED (SYS)
(3) USB LED (4) Console port (CONSOLE)
(5) Auxiliary port (AUX) (6) USB interface 0
(7) USB interface 1 (8) CF card LED
(9) CF card (10) Power socket
(11) Power switch
2) Rear view
