1-10
Table 1-12 Rear panel LEDs of MSR 30-40 Router
LED Description
GE LED
OFF means no link is present.
Steady green means a 1000 Mbps connection has been established.
Blinking green means data is being received or transmitted at a speed of 1000 Mbps.
Steady yellow means a 10/100 Mbps connection has been established.
Blinking yellow means data is being transmitted at a speed of 10/100 Mbps.
SFP0 to 1
OFF means no SFP connection is established.
Steady green means SFP connection has been established.
Blinking green means SFP is receiving or transmitting data.
Steady yellow means SFP cannot be identified by the router.
ESM0 to 1
OFF means no ESM is in the ESM slot.
Steady green means an ESM is in the ESM slot and operates normally.
Blinking green means the ESM is processing data.
Solid yellow means an ESM is in the ESM slot but does not operate normally.
VCPM
OFF means no VCPM is in the slot.
Steady green means a VCPM is in the slot and operates normally.
Steady yellow means a VCPM is in the slot but does not operate normally.
VPM0 to 2
OFF means no VPM is in the VPMx slot.
Steady green means a VPM is in the VPMx slot and operates normally.
Steady yellow means a VPM is in the VPMx slot but does not operate normally.
MSR 30-60 Router
Appearance
1) Front view

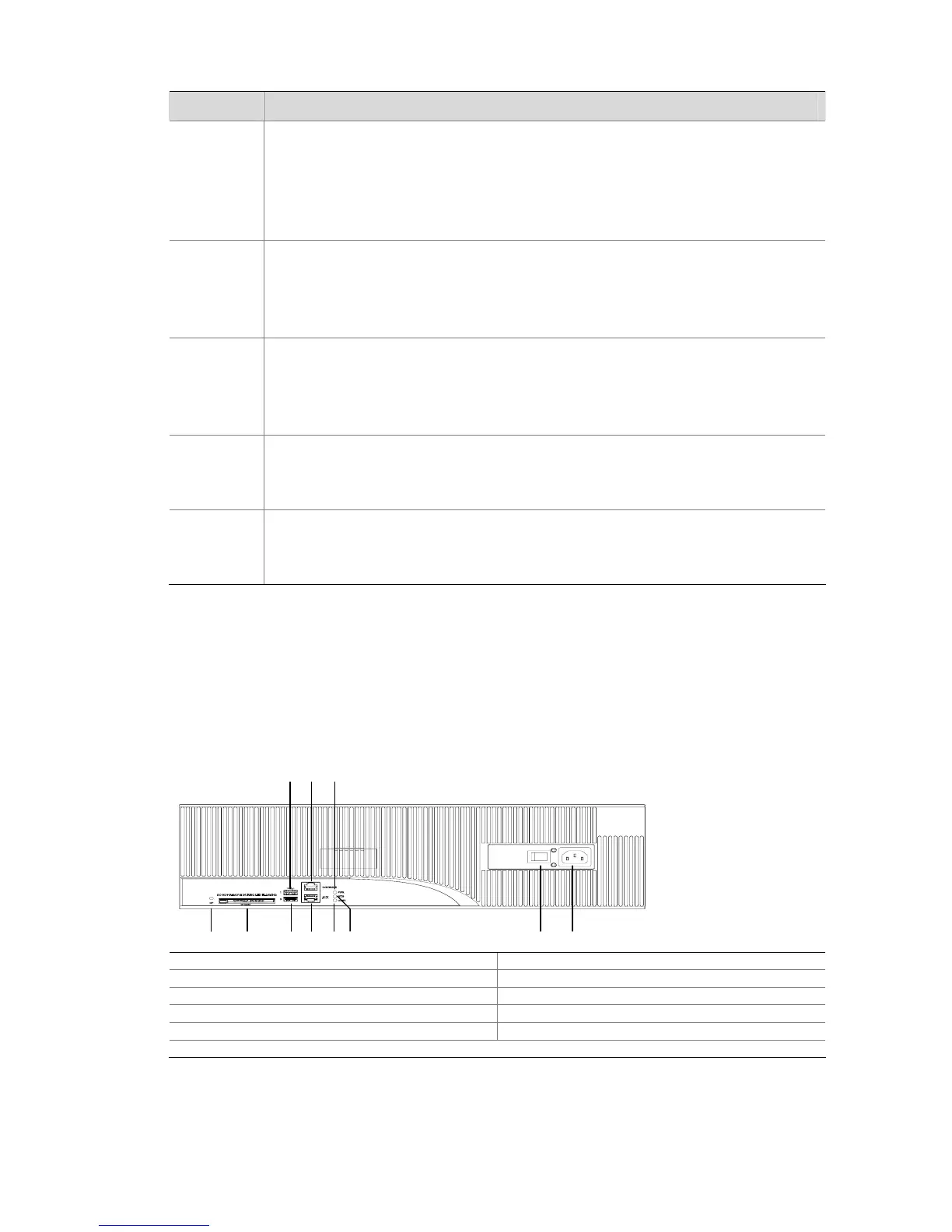

Figure 1-9 Front view of MSR 30-60
(3)(2)
(1)(4)
(5)(6)
(7)
(10)(8) (9) (11)
(1) Power LED (PWR) (2) System LED (SYS)
(3) USB LED (4) Console port (CON)
(5) Auxiliary port (AUX) (6) USB interface 0
(7) USB interface 1 (8) CF card LED
(9) CF card (10) Power socket
(11) Power switch
