The current version of the MSR 30-11 does not support any CF card, but the later versions will do.
Therefore, a CF card slot is reserved on the MSR 30-11.

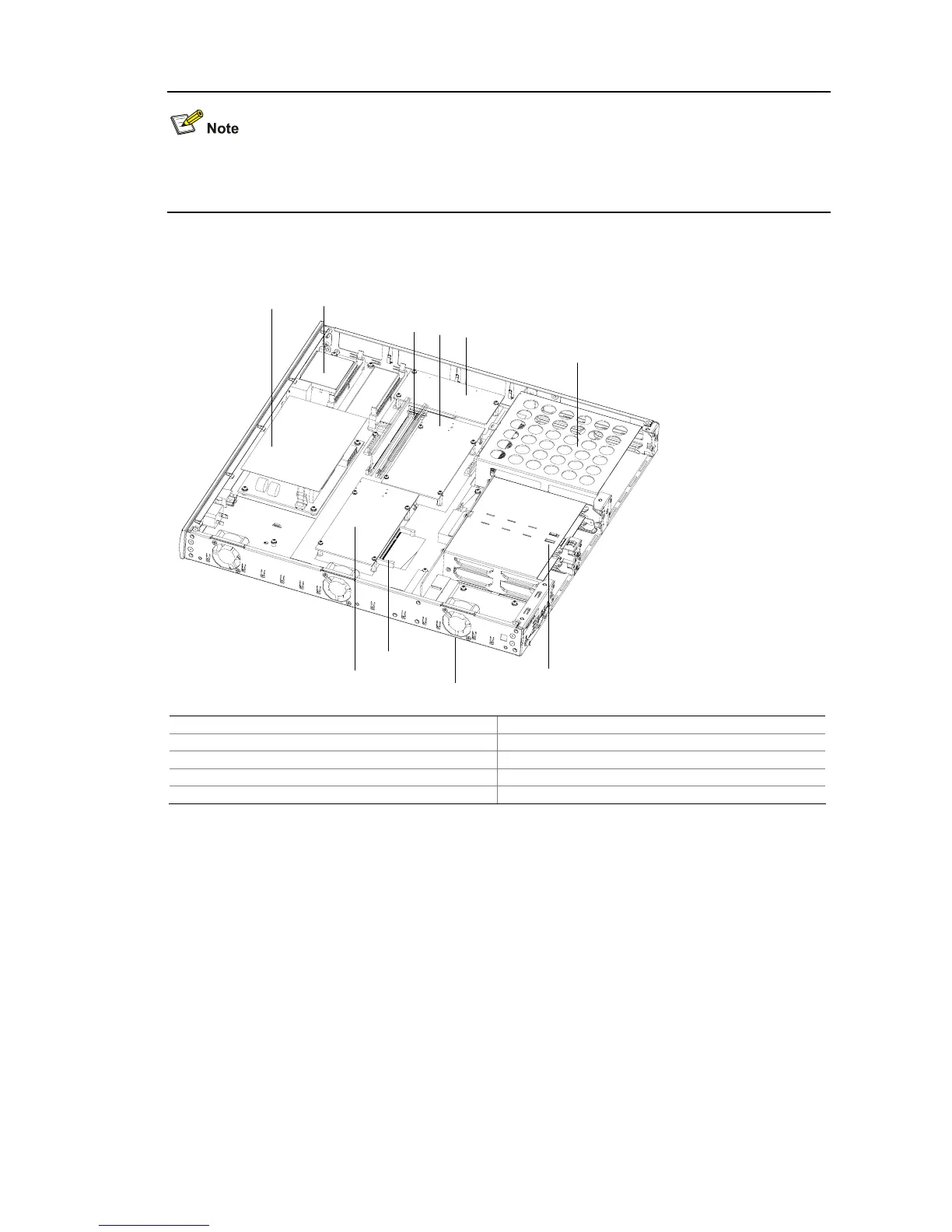

Figure 6-7 MSR 30-16 internal structure
(1)
(5)
(2)
(3)
(4)
(6)
(7)
(10)
(8)
(9)
(1) Power module (2) CF card slot
(3) VPM (4) ESM slot 1
(5) VCPM slot (6) MIM slot
(7) SIC card slot (8) Fan
(9) Memory module slot (10) ESM slot 0
