H3C MSR 30-20 ROUTER

6-7

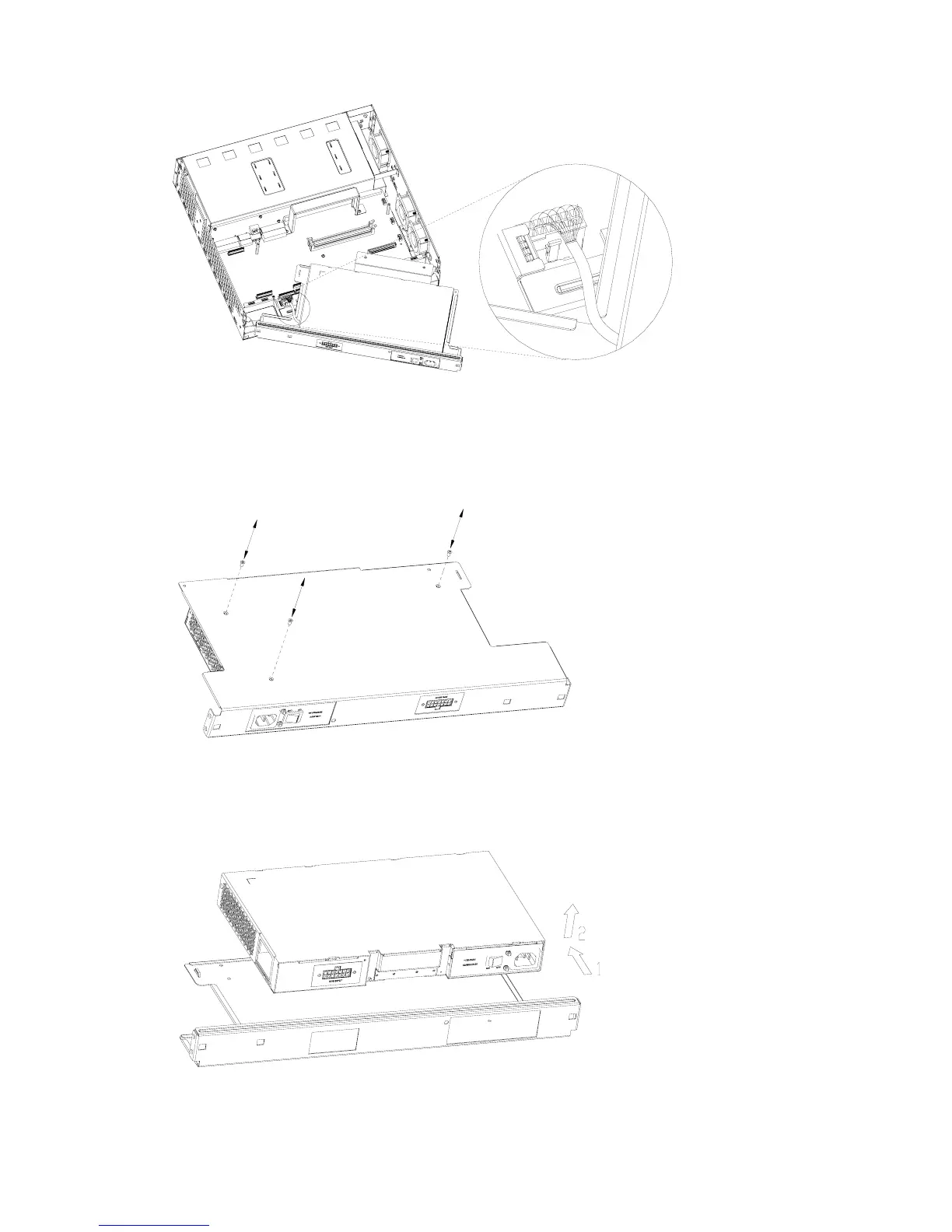

Figure 6-12 Remove the power bracket and the power cord
2) Remove the power module from the bracket
z Remove the screws
Figure 6-13 Remove the screws fastening the power module and the bracket
z Separate the power module from the bracket
Figure 6-14 Draw out the power module and separate it from the bracket
