H3C S3600 Series Ethernet Switches Chapter 5 Loading Boot ROM and Host Software
5-8

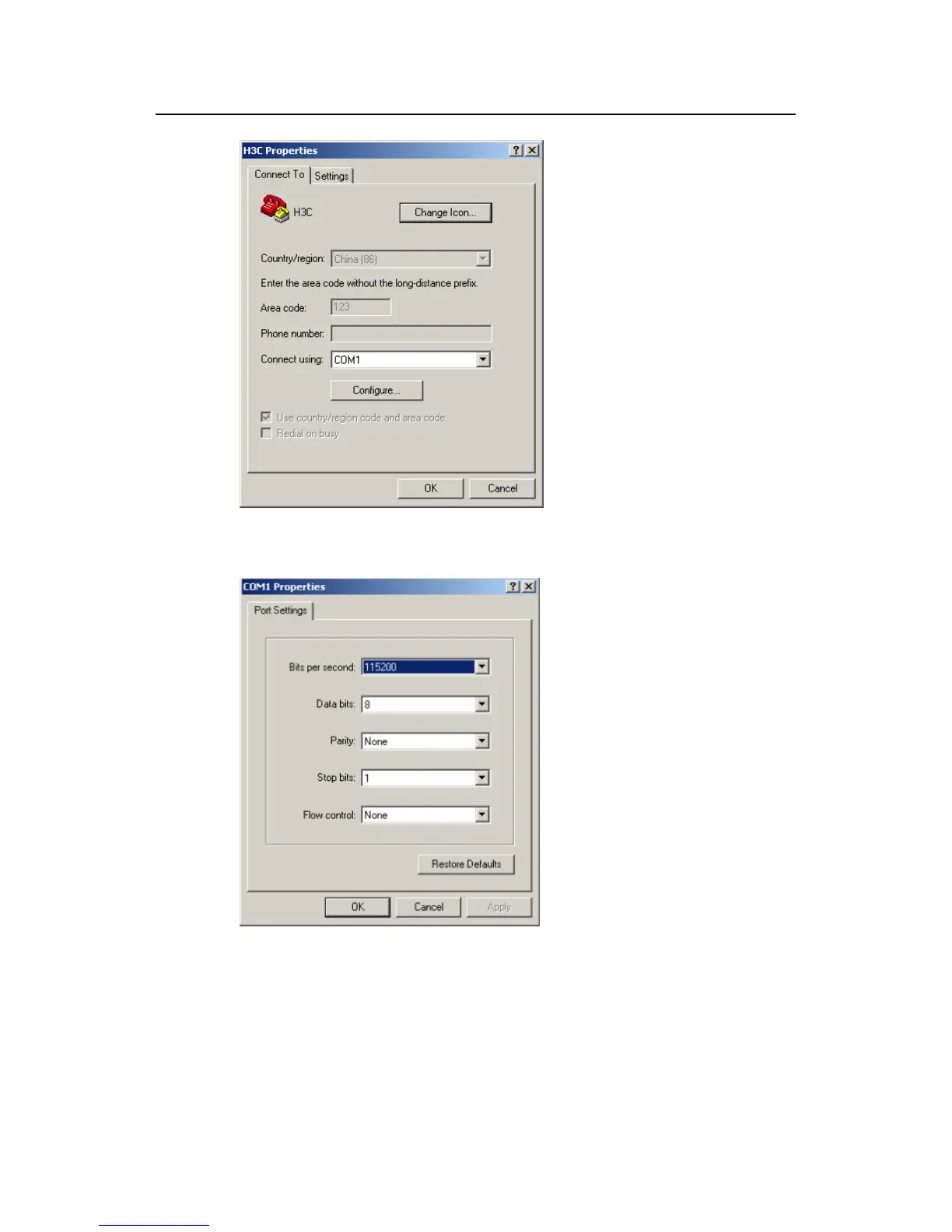

Figure 5-1 Properties dialog box
Figure 5-2 Console Port Configuration dialog box
Step 5: Click <Disconnect> to disconnect the HyperTerminal from the switch and then
click <Call> to re-establish the connection, thus validating the baud rate setting.
