Items supplied with the analyzer: Shown in Figure 11.

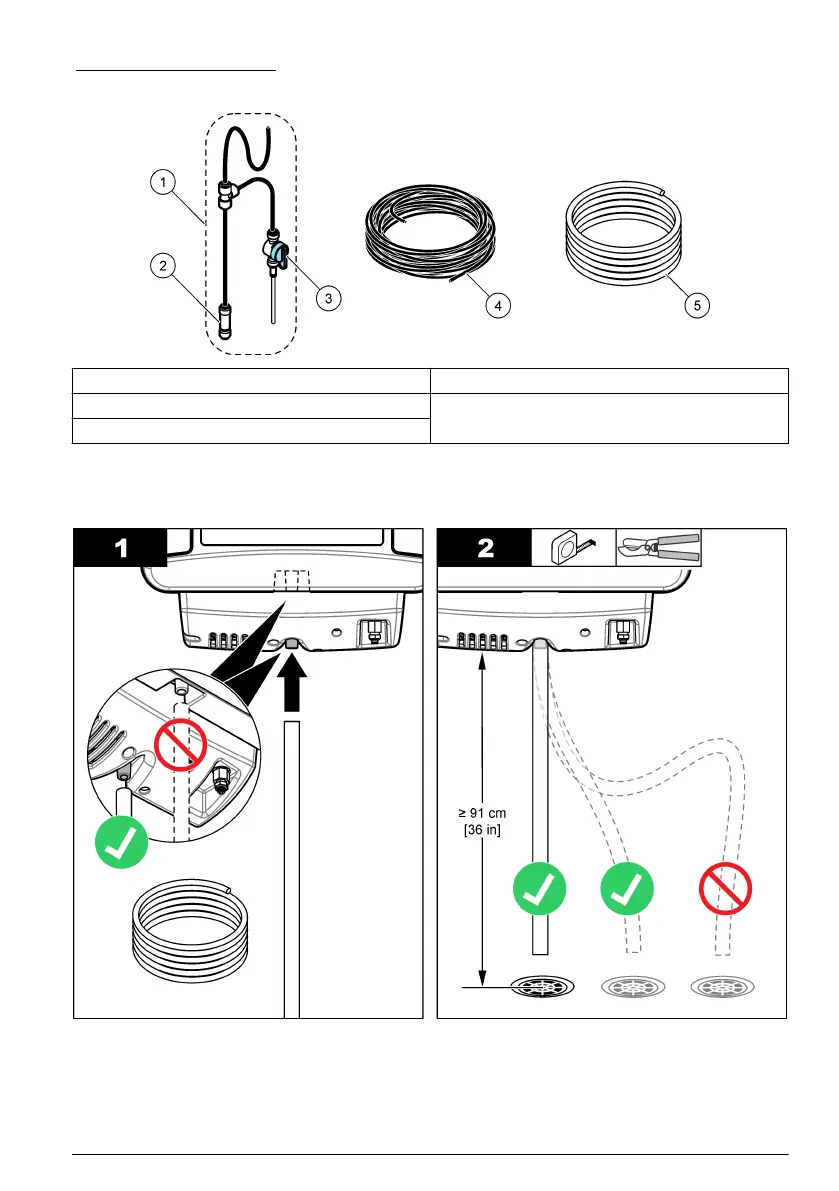

Figure 11 Plumbing parts
1 Grab sample assembly 4 Sample inlet tubing, black, 15 m (50 ft)
2 Check valve 5 Drain tubing, clear, 3 m (10 ft)
3 Grab sample valve
1. Push one end of the clear tubing over the drain fitting.
2. Decrease the length of the clear tubing until it has a constant downward slope to the drain. Attach
the other end of the clear tubing so that it stays over the drain.
