hager h3+ User Manual

16 6LE005550A
Description of the h3+ communication system
2.1 h3+ electronic trip units
2.1.4

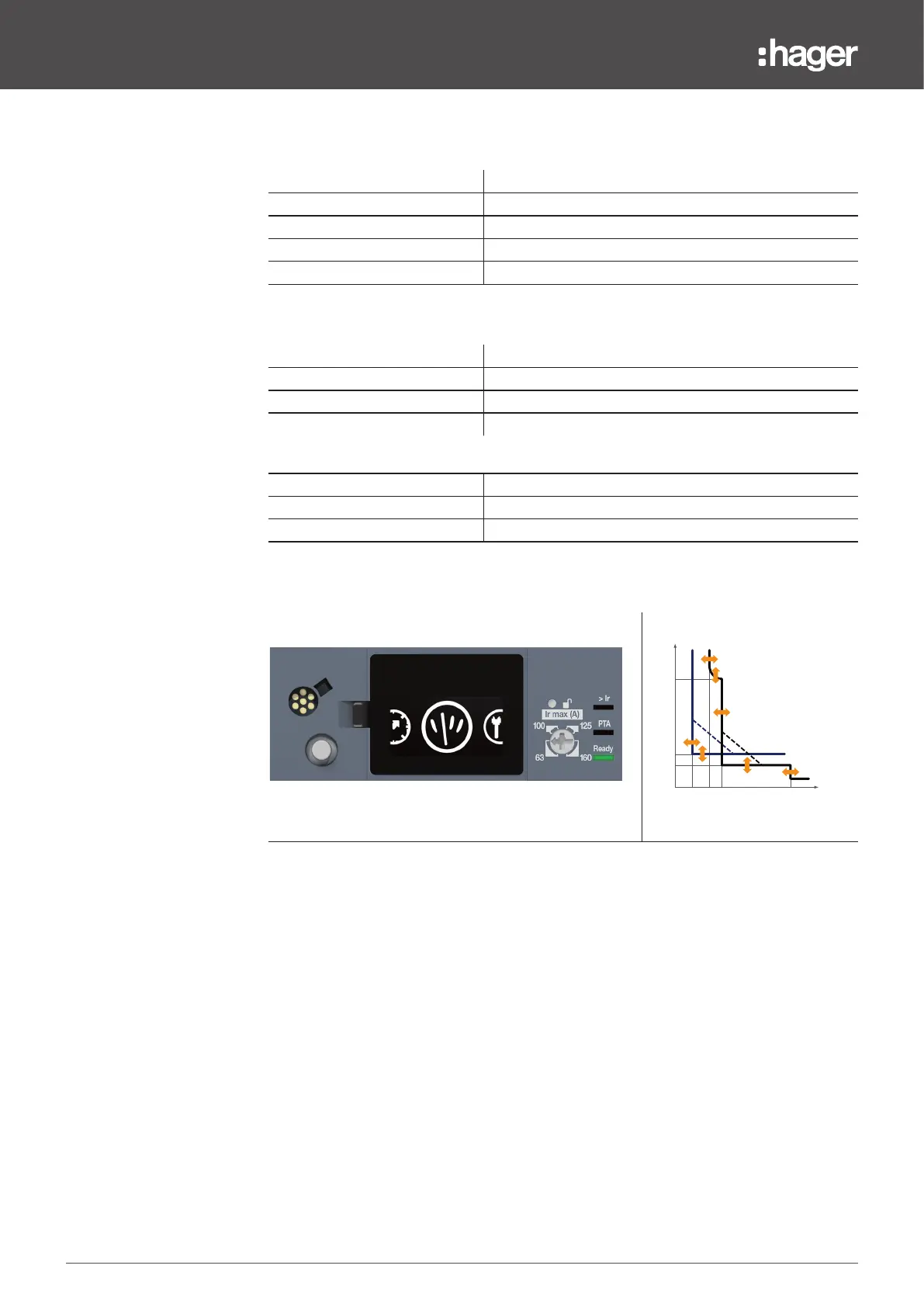

Energy trip units
In (A)
t (s)
tr
lrlg lilsd
tsd
tg
l²t
Configuration using adjustment dial, joystick and embedded display.
- Signalling the status of the trip unit via LED (Ready).
- Signalling the PTA overload pre-alarm via LED (adjustable threshold)
- Signalling the overload alarm via LED (>Ir).
- Possible adjustment of the thresholds and time delays of the LSIG protection.
- Possible adjustment of the neutral pole protection on 4-pole versions
(neutral positioned on the left).
Protection function
L - Long time delay protection
S - Short time delay protection
I - Instantaneous protection
G - Ground protection
Setting all the protection parameters. See § 3.2 Protection function.
Measurement function
See § 3.3 Measurement function
Alarm management
Pre-alarms
I - Instantaneous protection
Ii (accuracy +15/-15%)
In = 40 A; 100 A: Ii (x In) 3 - 4 - 5 - 6 - 7 - 8 - 10 - 12 - 15
In = 160 A; 250 A: Ii (x In) 3 - 4 - 5 - 6 - 7 - 8 - 9 - 10 - 11
time delay (ms) fixed
non-tripping time (ms) 10
maximum cut-o time (ms) 50
G - Ground protection
Ig (accuracy +10/ -10%)
Ig = In x… OFF - 40% for In = 40 A; 20% for In > 40 A
time delay (ms) 200 (fixed); I²t activated according to Isd I²t
non-tripping time (ms) 180
maximum cut-o time (ms) 250
Neutral adjustment (4P only)
neutral protection (Ir, Isd) x … OFF - 50% - 100%
instantaneous neutral protection li Same as phases
time delay Same as tr, tsd and instantaneous
