120 6LE005550A
Communication via Modbus
5.3 Connecting the communication module to the Modbus network
ATTENTION
Risk of loss of Modbus data
Use of connection cables other than those recommended may result in functional
impairments of the Modbus connection and consequently loss of data.

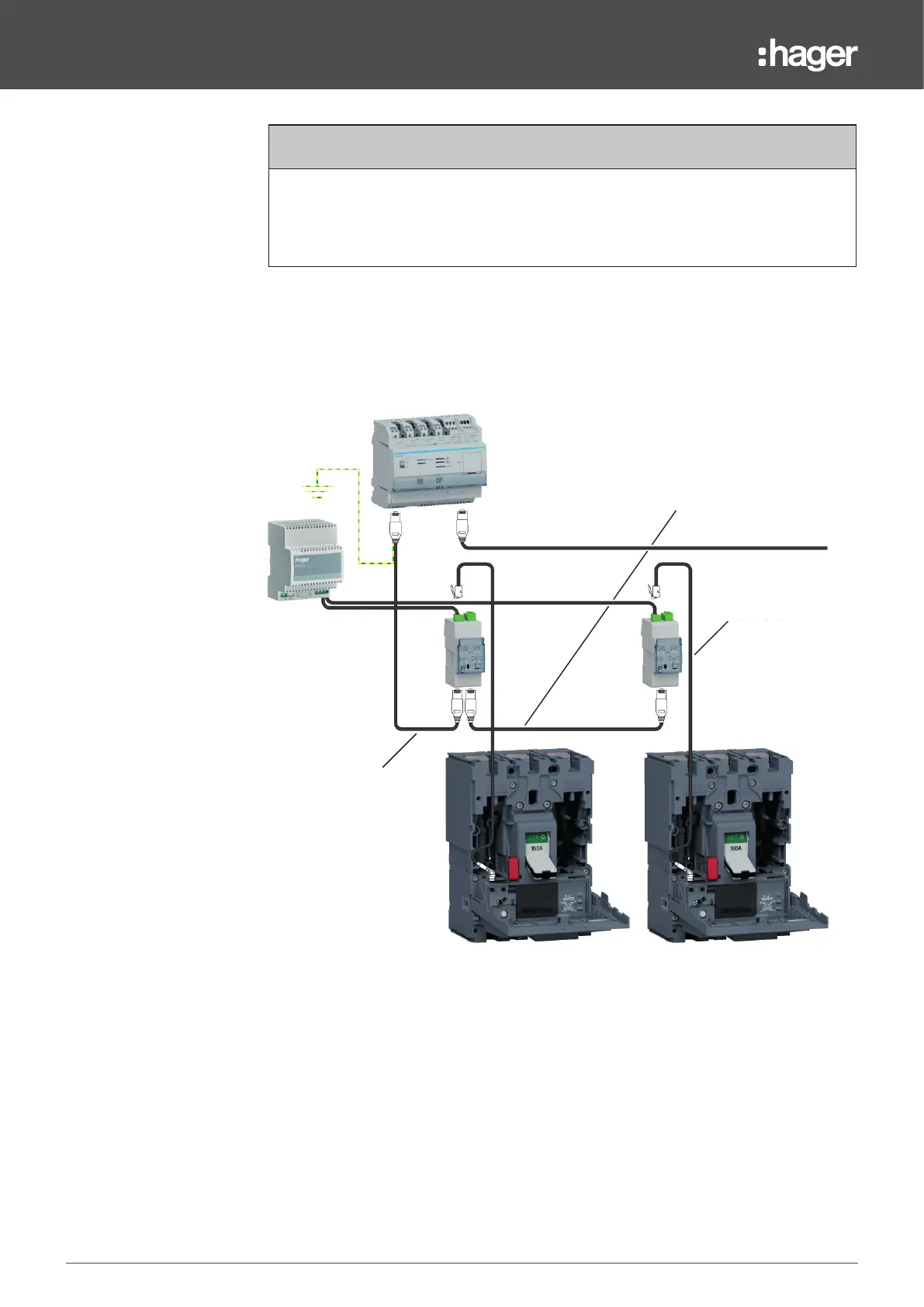

The communication module is connected to the Modbus wiring chain using specific
cables available as an option. These cables are equipped with RJ45 connectors
compatible with the connections of the communication module and agardio.manager
server.
Câble RJ45 –RJ45
avec l de terre
Câble RJ45 – RJ45
Câble CIP
Connection to agardio.manager
RJ45 – RJ45 cable
with ground wire
RJ45 – RJ45 cable
CIP cable
