956LE005550A
Starting, commissioning, operation
4.6 Start-up and configuration via the HTD210H display
4.6.2
Connecting the
HTD210H display
ATTENTION
Risk of damaging the HTD210H display
Use of an inappropriate RJ9 lead may damage the display.
Only use CIP adapters available as an option.
The HTD210H panel display is connected to the Energy circuit breaker using the
CIP adapter.
The CIP adapter cable is composed of an RJ9 connector to connect to the panel
display and a suitable connector to connect to the CIP connector.

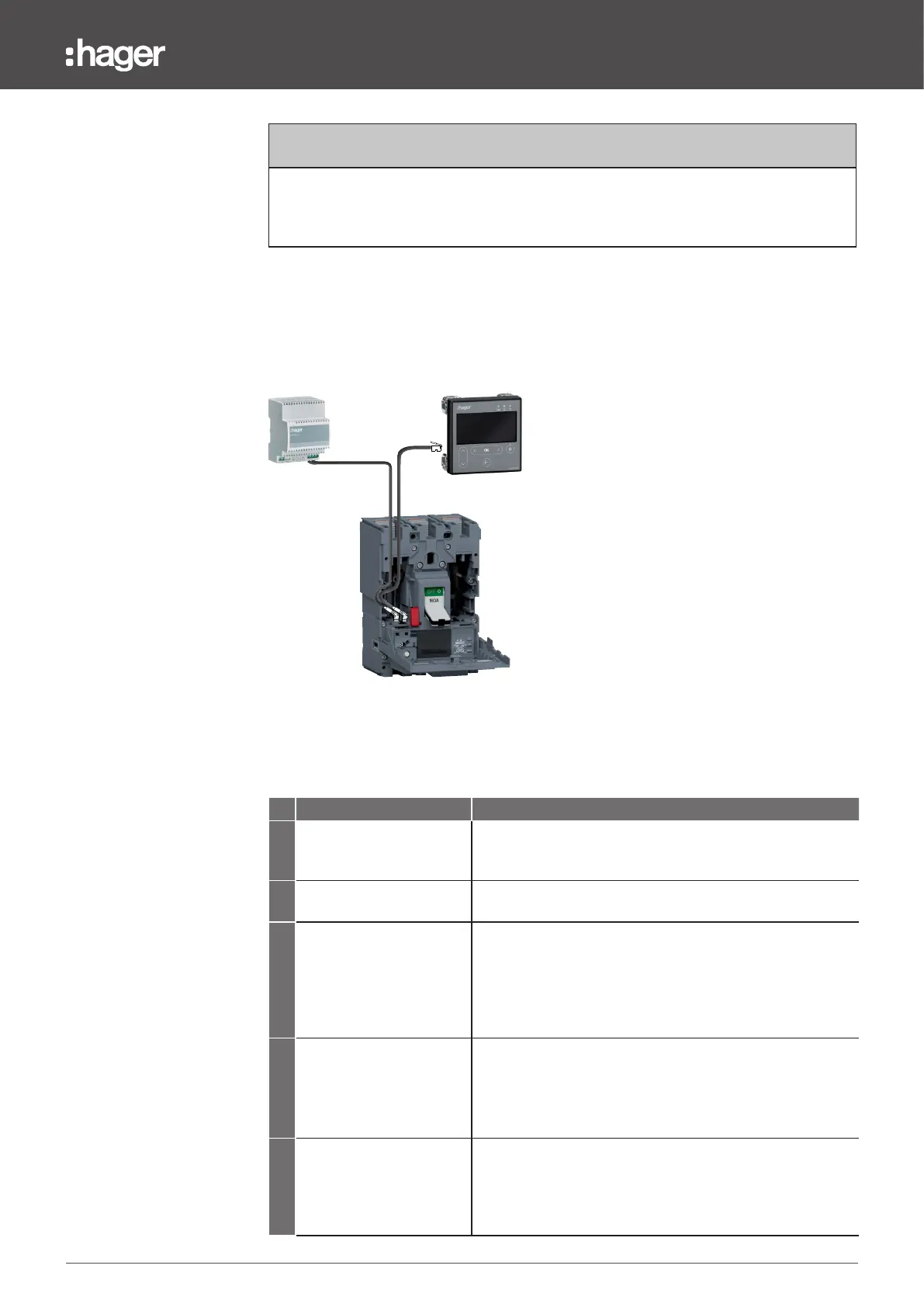

HTD210H display connection
Here is the procedure to follow to connect the HTD210H display:
Action Note/Illustration
1 Switch the Energy circuit
breaker to the OFF or
tripped position.
–
2
Open the front cover of the
circuit breaker
The front cover of the circuit breaker can only be opened in the
OFF or tripped position.
3 Insert the CIP marked
section for the CIP adapter
in one of the connectors
marked CIP inside
the circuit breaker on the
left-hand side
Risk of damaging the CIP connector. Respect the direction of
insertion for the connector: The adapter part marked CIP must
be visible from the front. Avoid forcing the connector when
inserting.
4
Route the CIP adapter
cable outside the circuit
breaker until it reaches
the HTD210H display.
Please respect the wiring rules in force in switchboards:
- Separate the routing of the power cables and the circulation
of low-level signal cables
- Secure the cable along the routing.
5 Close the front cover
of the circuit breaker to
immobilise the side support
as well as the side cable
routing.
