hager h3+ User Manual

756LE005550A
Starting, commissioning, operation
4.1 Connectors and accessories

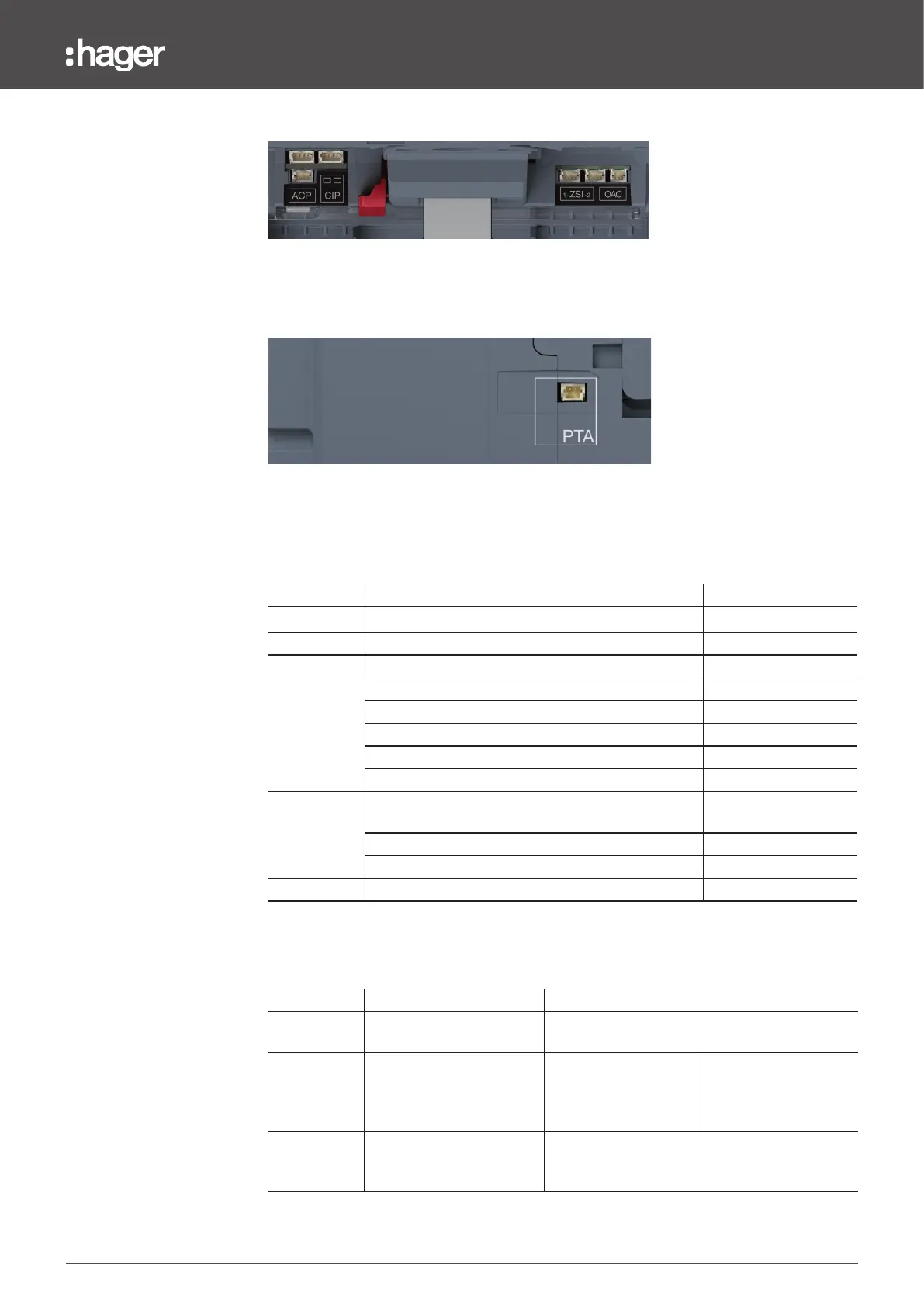

Energy P250 trip unit connectors
Location of the PTA connector
PTA connector
4.1.2
Connection accessories
Connection accessories are available as an option. These are pre-wired adapters
which are available in various lengths as required.
Connector Accessories reference length
PTA or OAC HTC130H: OAC/PTA adapter
1,20 m
MIP Included in the HTP610H tool –
CIP
HTC330H: CIP adapter 0,50 m
HTC340H: CIP adapter 1,50 m
HTC350H: CIP adapter 3 m
HTC360H: CIP adapter 5 m
HTC370H: CIP adapter 10 m
HTC140H: CIP adapter – 24 V 1,20 m
ACP
HXS120H: AX/AL Energy
(AX and AL contacts cannot be connected)
–
HXS121H: AX/AL Energy 230 VAC –
HXS122H: AX/AL Energy 125 VAC / 30 VDC –
ZSI1 or ZSI2 HTC150 H: ZSI adapter 1,20 m
Identifying the wires of HTC130H, HTC140H, HTC150H adapters and HXS12xH
auxiliaries
Number of output wires Identification of wires
HTC130H
HTC140H
2 wires
+ polarity: Brown
- polarity: White
HXS121H
HXS122H
6 wires
AX contact
Shared: White
NO: Black
NF: Red
AL contact
Shared: White
NO: Black
NF: Red
HTC150H 3 wires
Shared: Brown
Short time delay signal: White
Ground fault signal: Green
