Communication via Modbus

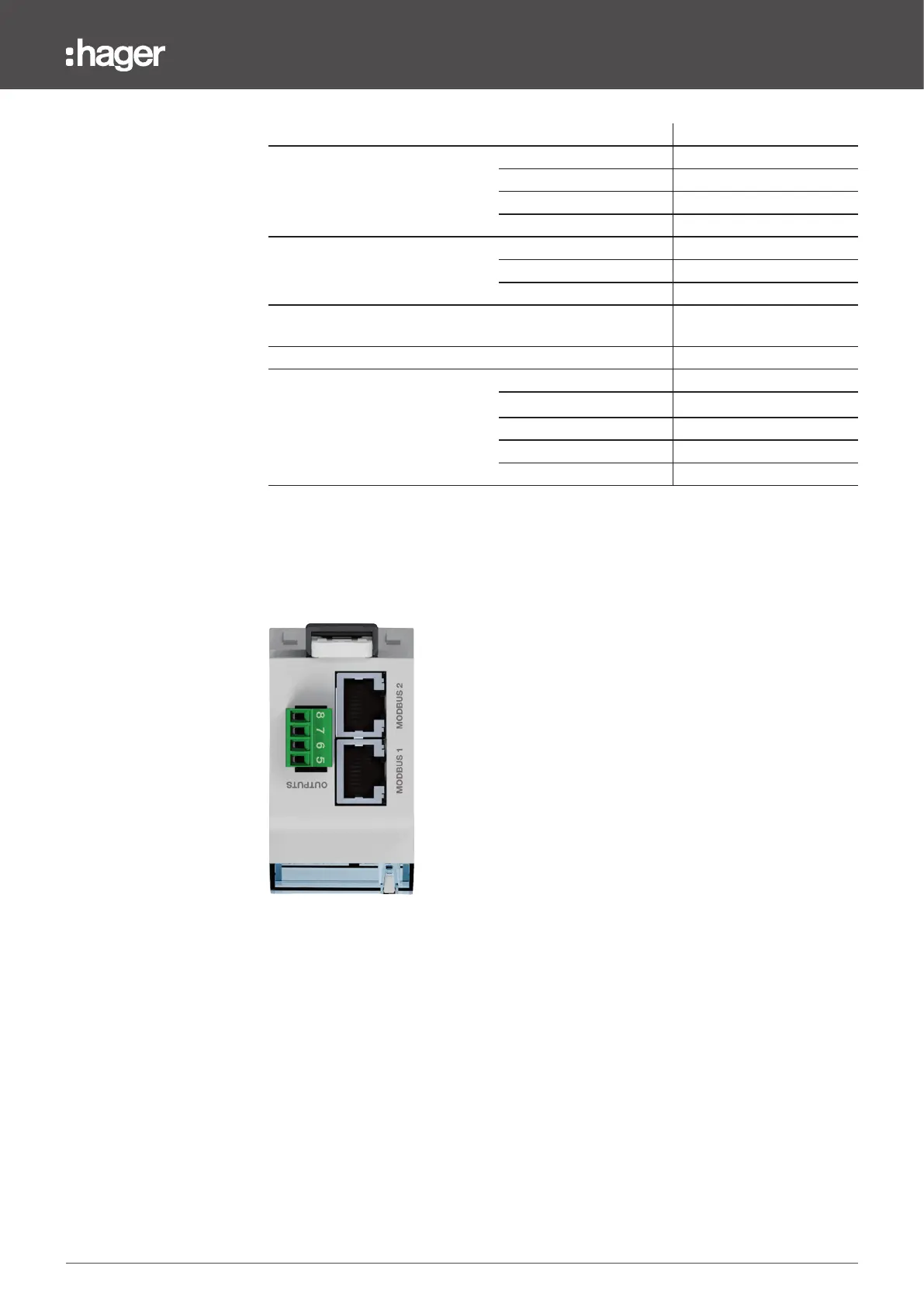

5.3 Connecting the communication module to the Modbus network
Cables Length Reference
RJ45 – RJ45 cable
0,2 m HTG480H
1 m HTG481H
2 m HTG482H
5 m HTG484H
RJ45 – RJ45 cable with ground wire
1 m HTG471H
2 m HTG472H
5 m HTG474H
RJ45 cable – bare wire and
ground wire
3 m HTG465H
Modbus bare cable 25 m HTG485H
CIP cable
0,50 m HTC330H
1.50 m HTC340H
3 m HTC350H
5 m HTC360H
10 m HTC370H
The communication module is equipped with two RJ45 jacks at the bottom of the
product to facilitate integration into the Modbus chain.
The MODBUS 1 and MODBUS 2 jacks can be used in an inlet/outlet direction as in
the case of an inlet/outlet direction of the Modbus connection chain.
HTC320H connection terminals
